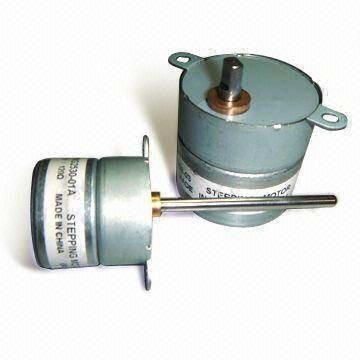

PM Gearbox Stepper Motor
PM Gearbox Stepper Motor
Specifications
Place of Origin :
China
Brand Name :
DAITTO
Certification :
ISO,CE
Model Number :
15BYHJ50
MOQ :
500
Description

PM Gearbox Stepper Motor

General Specification for PM Stepping Gearmotor
Item
Specifications
Step Angle Accuracy
±7% (full step, no load)
Resistance Accuracy
±10%
Temperature Rise
80.C Max. ambient temperature 40.C
Ambient Temperature
-20.C~+50.C
Insulation Resistance
100MΩMin. ,500VDC
Dielectric Strength
650VAC for one second, leakage current 1mA
SPECIFICATIONS:
Model
Step
Angle
(Deg.)
No. of
Phase
Voltage
(V)
Current
/Phase
(A)
Resistance
/Phase
(ohm)
Moderating
Ratio
No-load
Pullout
Frequency
Detent
Torque
(g.cm)
Pull in
Torque
Wire
Diagrm
Fig
15BYHJ50
18/50
2
5
0.5
10
1/50
1200
180
A
1
25BYHJ05-01
7.5/5
2
2.6
0.52
5
1/5
550
150
75
A
2
25BYHJ10-01
7.5/10
4
5
0.5
10
1/10
820
450
400
D
3
25BYHJ20-01
15/20
4
12
0.08
150
1/20
700
500
D
4
25BYHJ30-01
7.5/30
4
13.3
0.11
120
1/30
780
1400
750
D
4
35BYHJ01
7.5/19
4
24
0.22
110
1/19
500
2280
1710
B
5
35BYHJ08
7.5/8.4
4
12
0.4
30
1/8.4
600
840
B
6
35BYHJ19
7.5/19
4
12
0.4
30
1/19
460
2600
1900
B
5
35BYHJ30
7.5/30
4
12
0.4
30
1/30
600
3000
B
6
35BYHJ60
7.5/60
4
12
0.4
30
1/60
520
6000
B
6
357BYHJ120
7.5/120
4
12
0.4
30
1/120
500
1200
B
6
35BYSJ16
7.5/16
4
12
0.23
52.5
1/16
670
1000
1800
B
7
42BYHJ01
7.5/24
4
12
0.32
27
1/24
480
500
1600
C
8

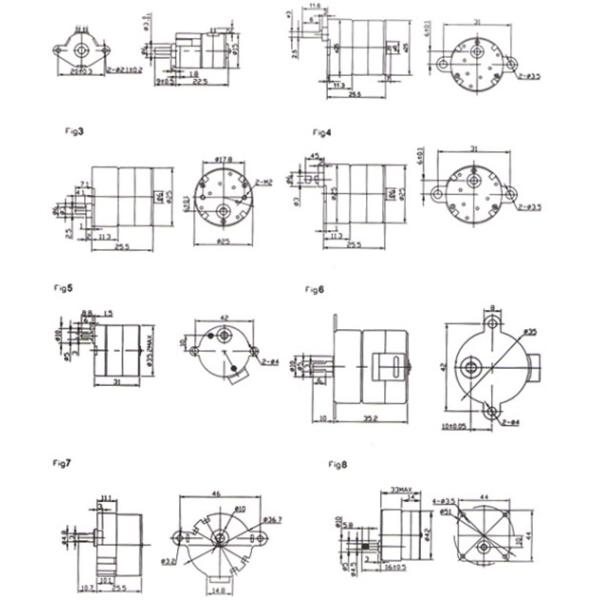

Drawing:
PM Gearbox Stepper Motor

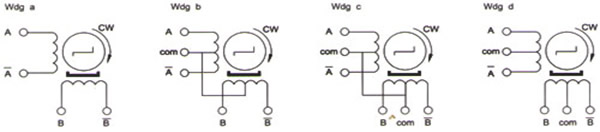

WIRING DIAGRAM:
PM Gearbox Stepper Motor
