M430D 2 phase stepper motor driver
M430D 2 phase stepper motor driver
Specifications
Place of Origin :
China
Brand Name :
DAITTO
Certification :
ISO,CE
Model Number :
M430D
MOQ :
500
Description
Quick Detail:

M430D

Features

1. 2phase stepper driver, adoption of bipolar constant-current chopper technology

2. Low-noise, low-vibration and low temperature rising

3. Voltage 18-40VDC

4. With 8 stalls output current setting, current range 0.9-3.0A

5. With 7 stalls microstep subdivision setting

6. Automatic Half current, motor wires misconnected protection

7. Internal optical isolation, highest frequency response 200KHZ

8. Suitable for nema 17, nema 23 stepper motor current under 3.0A

Current selection

Peak

RMS

SW5

SW6

SW7

0.9A

0.65A

on

on

on

1.2A

0.86A

on

on

off

1.5A

1.10A

on

off

on

1.8A

1.28A

on

off

off

2.1A

1.50A

off

on

on

2.4A

1.72A

off

on

off

2.7A

1.93A

off

off

on

3.0A

2.14A

off

off

off

Microstep selection

Pulse/Rev

SW1

SW2

SW3

200

off

off

off

400

on

off

off

800

off

on

off

1600

on

on

off

3200

off

off

on

6400

on

off

on

12800

off

on

on

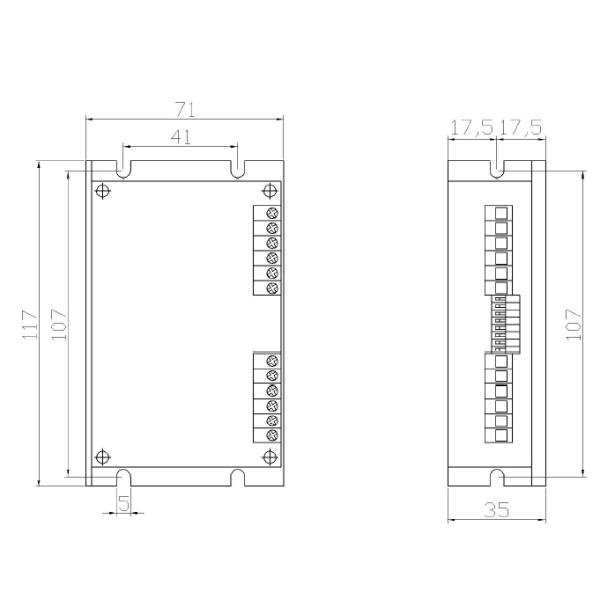

Mechanical Dimension(mm)

M430D 2 phase stepper motor driver
