Parameter/Model

12X

Lens

Image Sensor

1/2.8inch high quality CMOS sensor

Effective Pixel

8.51M, 16:9

Video Signal

HDMI:

4KP30,4KP25,1080P30,1080P25,1080P29.97;

USB3.0:

Main Stream:YUY2/NV12:

1920×1080/1280×720/1024×576/800×600/800×448/640×360/480×270/320×180@10/5fps;

MJPG/H264:

3840*2160/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;

Sub Stream:YUY2/NV12:

1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps;

MJPG/H264:

1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;

Close-up Lens

12X

Viewing Angle

H:7.6°(N)~80.5°(W)

Iris Value

F1.8 ~ F3.6

Digital Zoom

15X

Minimum Illumination

0.5Lux(F1.8, AGC ON)

DNR

2Dand3D

White Balance

Auto/Manual/One-Key White Balance/Specified Color Temperature

Focus Mode

Auto/Manual/One key focus

Exposure Mode

Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority

Iris

F1.8 ~ F3.6, CLOSE

Shutter Speed

1/25~1/20000

BLC

On/Off

Dynamic Range

Off, 1 ~ 8

Video Adjustment

Brightness, Hue, Saturation, Contrast, Sharpness, Black and White Mode, Gamma Curve

SNR

>50dB

Panoramic Lens

Fixed Lens

FOV

110.2°\101.8°\69.5°(D\H\V)

Iris

F2.0±5%

Focus

F=1.89mm

Interface

Back Panel

HDMI, LAN (support POE), USB3.0, A-IN, RS232-IN, DC12V power supply, power switch

Video Output

HDMI, LAN, USB3.0

Video Compression Format

LAN:H.264,H.265

USB 3.0:MJPG,H264,YUY2,NV12

Audio Input

Dual channel 3.5mm linear input

Audio Output

HDMI, LAN, USB3.0

Audio Compression Format

AAC, MP3, G.711A

LAN Port

10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output

Network Protocols

RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote restart, remote reset

Control

RS232-IN

Serial Port Communication Protocols

VISCA/Pelco-D/Pelco-P;Baud Rate: 115200/38400/9600/4800/2400

USB communication Protocols

UVC(video communication protocol,UAC(audio communication protocol)

Power Supply

HEC3800 power socket (DC12V)

Power Adapter

Input: AC110V~AC220V ;Output: DC12V/2.5A

Input Voltage

DC12V±10%

Input Current

<1A

Power Consumption

<12W

Others

Storage Temperature

-10℃~+60℃

Storage Humidity

20%~95%

Working Temperature

-10℃~+50℃

Working Humidity

20%~80%

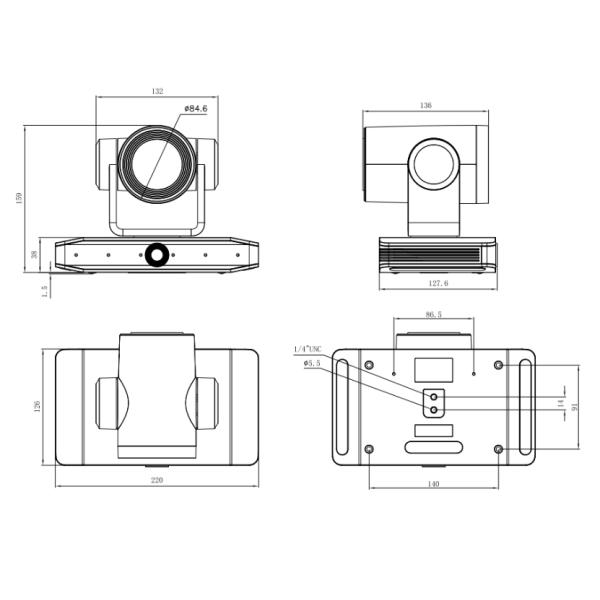

Dimension

220(L)mm×144mm(W)×159mm(D)

Weight(Approx.)

1.7kg

Environment

Indoors

Accessory

Standard Accessory

Power adapter, RS232 control cable, USB3.0 cable, remote control, user manual

Optional Accessory

Mount brackets

AI Function

Auto Framing

Built-in high-speed processor and face detection algorithm, it can automatically detect participants and provide optimal framing,The farthest framing distance can reach 6~7 meters

Speaker Tracking

Built-in 6 omnidirectional microphone arrays, intelligent sound source localization algorithm, can locate the speaker's position in real time. The maximum pick-up distance can reach 6~7 meters
