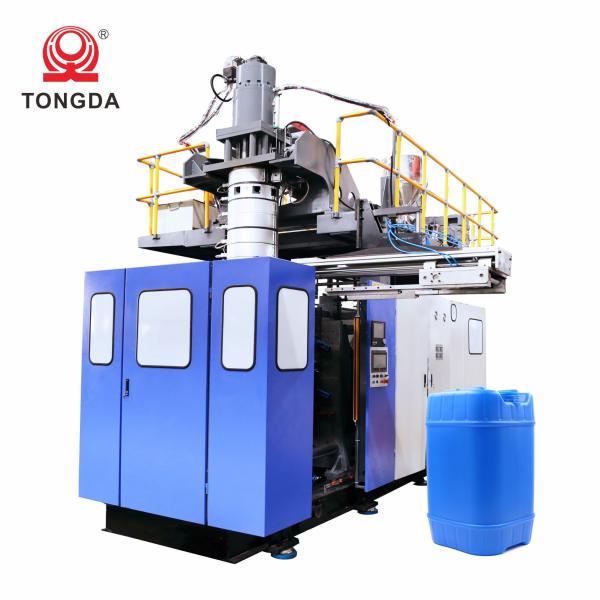

Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic
Specifications
Brand Name :
TONGDA
Model Number :
TDB-120F
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$119,999.00/Sets >=1 Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Station :
Single
Clamping Force (kN) :
740kN
Size of machine :
5.8*2.9*4.3
Max. die diameter :
420
Total power :
135
Weight (T) :
20
Description

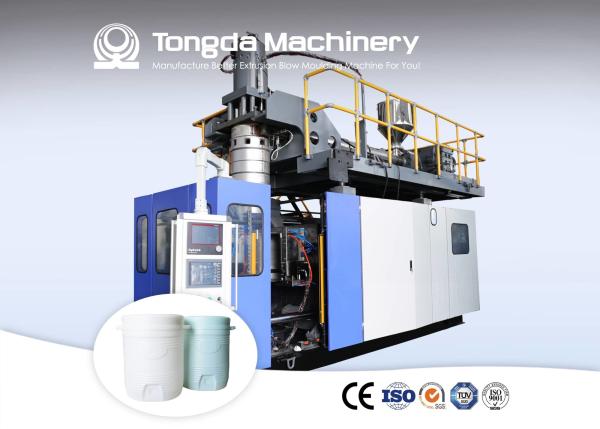

80L-120L Drums Plastic Multi-Layer Extrusion Blow Molding Machine

This machine is suitable for 80~120L product and it is bottom blow.The die-head is accumulator.It equipped with servo motor.
The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.

Technical parameters

MODEL Units TDB-120F

Remarks: The above specifications and design are subject to change without prior notice.
Max. Product volume L 120
Output of HDPE kg/h 180
Clamping force kn 740
Screw diametre mm 100
Screw heating power kw 17.4
Blow pressure mpa 0.6
Size of machine m 5.8*2.9*4.3

Product Description

Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic

Product details

Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic

Die head:Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.

Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic

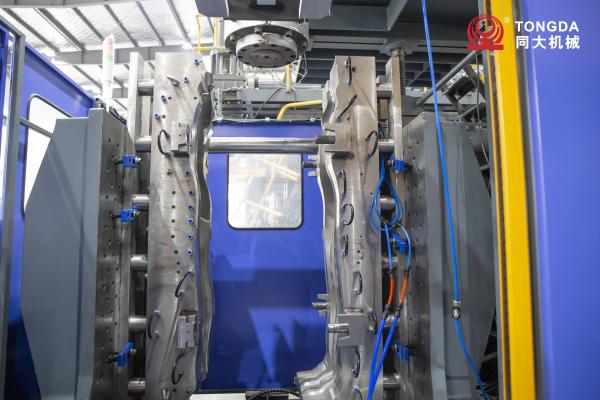

Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device

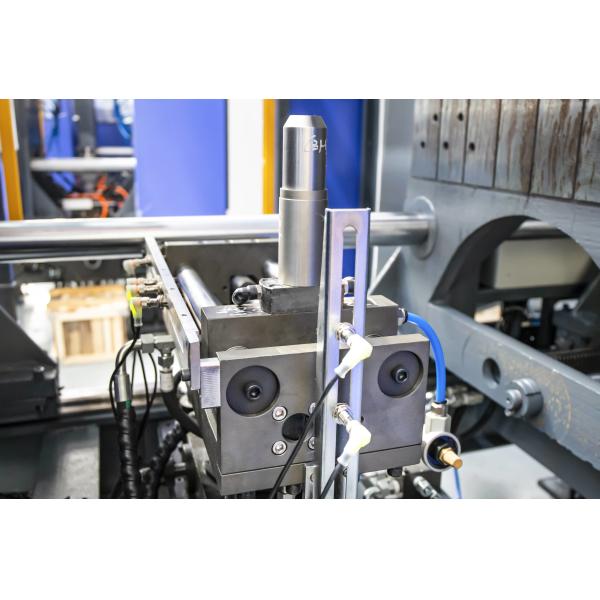

Upper parison sealing device, stable and reliable

Company information

Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums PlasticMulti Layer Extrusion Blow Molding Machine 80L - 120L Drums PlasticMulti Layer Extrusion Blow Molding Machine 80L - 120L Drums PlasticMulti Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic

1. We have office in Poland, Peru, Chile, Russia, Egypt, Jordan, Thailand, Indonesia, Algeria, Ethiopia, Poland, etc
2. We have benchmark customers in America, Saudi Arabia, Jordan, Qatar, Thailand, Indonesia, etc.
3. Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

Service network

Multi Layer Extrusion Blow Molding Machine 80L - 120L Drums PlasticMulti Layer Extrusion Blow Molding Machine 80L - 120L Drums Plastic

We have over 25 engineers who can speak English in our after-sales department. Our response is prompt.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
