25L Jerry Can Extrusion Blow Molding Machine Plastic Automatic 300kg/H
25L Jerry Can Extrusion Blow Molding Machine Plastic Automatic 300kg/H
Specifications
Brand Name :
TONGDA
Model Number :
HSII-30L
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$64,000.00 - $80,000.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
60 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Max Size of Product :
30L
Clamping Force (kN) :
250KN
Screw L/D Ratio :
28
Screw diameter (mm) :
100 mm
Output (kg/h) :
300kg/h
Description

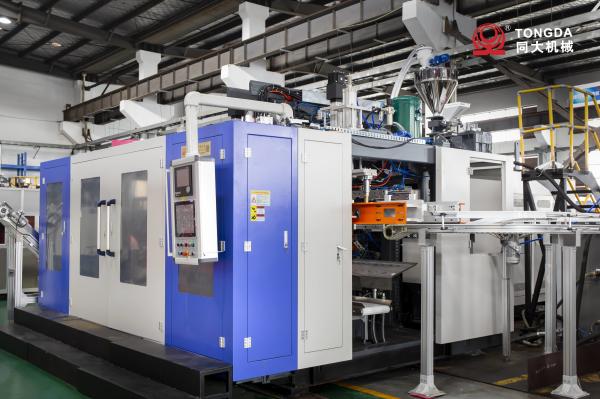

TONGDA HSII-30L Max 30L Jerry Can Making Automatic Extrusion Blow Molding Machin

Product Description

If you want to produce 20L, 25L jerry can, our HSII-30L model machine will be a good choice.
This is our most classic and most hot sale series machine, with wide application.
It is suitable for producing up to 30L plastic HDPE jerry cans for the usage of drinking water, chemical, petro-chemical industry, also is suitable for producing irregular shape products such as the water tank for motorcycle, tool box, plastic toys, water pot, etc.
We equip servo motors not only for the hydraulic system, also the plasticizing system use the servo motor.
Servo motors for the hydraulic system and plasticizing system not only save energy, also with quick response.
We use accumulator type die head for this series machine. So Servo motor for the plasticizing system will save a lot energy after the filling is finished, and the product is in shaping period.
Our machines can be customized for your different demand.

Technical Parameters

MODEL
Units
HSII-30L
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
30
Output of HDPE
kg/h
300
Clamping force
kn
250
Screw diametre
mm
100
Total power
kw
156
Blow pressure

mpa
0.6
Size of machine
m
6.2*5.5*3.3

Product Details

25L Jerry Can Extrusion Blow Molding Machine Plastic Automatic 300kg/H25L Jerry Can Extrusion Blow Molding Machine Plastic Automatic 300kg/H

Equipped with servo motor for oil pump, can save about 10 kWh of electricity per hour. The longer cycle of the product, the more significant energy saving effect is. And we use appropriate power, so that the motor works at a suitable speed to extend the service life of the motor and reduce the temperature of the hydraulic oil. If equip with small power, then the motor will keep running at a high speed, the motor will easy be damaged.


Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.

Company Information

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.
In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.
Warmly welcome new and old customers to visit, to guide.
25L Jerry Can Extrusion Blow Molding Machine Plastic Automatic 300kg/H25L Jerry Can Extrusion Blow Molding Machine Plastic Automatic 300kg/H

After-sales Service

Before epidemic, we always send engineers to customer's plant to do the service.
During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

25L Jerry Can Extrusion Blow Molding Machine Plastic Automatic 300kg/H


Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

Q:Is it possible to add a logo on the product and change the date?
A:Yes, we will engrave for you ,including LOGO(Company name ,Date, No,Tel etc... ). We will customize for you.

Q: Can all be labeled?
Yes, according to the customer's bottle type characteristics and labeling requirements, we recommend a suitable labeling machine. Generally, there are in-mold labeling, self-adhesive labeling, hot melt labeling and so on.

Q: Can old molds be used on this machine?
Need to provide the specific information of the old mold, our engineers help confirm whether it can be directly installed on our machine.
