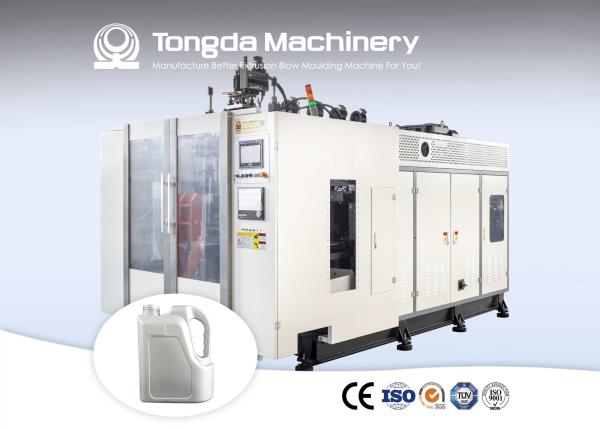

Small Plastic Extrusion Hollow Blow Molding Machine Automatic For Jerry Can EBM
Small Plastic Extrusion Hollow Blow Molding Machine Automatic For Jerry Can EBM
Specifications
Brand Name :
TONGDA
Model Number :
TONGDA HTSll2L
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$29,999.00 - $44,999.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Dimension(L*W*H) :
3.2m*2.12m*2.55m
Screw L/D Ratio :
25
Output (kg/h) :
60 kg/h
Screw Heating Power(kW) :
17.4 kW
Air Pressure(MPa) :
0.6 MPa
Die Head Heating Power(kW) :
15 kW
Power (kW) :
39
Max. Size of Mold :
360*320
Description

TONGDA HTSll2L small extrusion blow molding machine plastic EBM for jerry can

Product Description

This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters

MODEL Units HTSII-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 2
Output of HDPE kg/h 60
Clamping force kn 44
Screw diametre mm 60
Screw heating power kw 11.2
Blow pressure mpa 0.6
Size of machine m 3.2*2.12*2.55

Product Details

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

Small Plastic Extrusion Hollow Blow Molding Machine Automatic For Jerry Can EBM

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

Small Plastic Extrusion Hollow Blow Molding Machine Automatic For Jerry Can EBM

Company Information

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

Small Plastic Extrusion Hollow Blow Molding Machine Automatic For Jerry Can EBMSmall Plastic Extrusion Hollow Blow Molding Machine Automatic For Jerry Can EBM

After-sales services

Tongda has a sound service network, perfect after-sales service system, 14 professional after-sales service teams across the country, and a timely response service mechanism to continuously improve user satisfaction. Serve every customer sincerely, respond quickly, and solve the problems raised by customers in a timely manner. We will regularly send debugging engineers to visit customers and solve problems in time.

Small Plastic Extrusion Hollow Blow Molding Machine Automatic For Jerry Can EBM

FAQ

Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
