1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
1000L IBC Plastic Water Tank Blow Molding Machine 550 kg/h customized
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Certification :
CE, ISO9001
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$160,000.00 - $350,000.00/Sets
MOQ :
1SET
Delivery Time :
90 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA TDB-1200L
Dimension(L*W*H) :
10.6*3.5*5.6
Screw L/D Ratio :
32
Screw diameter (mm) :
150 mm
Output (kg/h) :
550 kg/h
Air Comsumption(m³/min) :
5 m³/min
Accumulator Capacity(L) :
45 L
Description

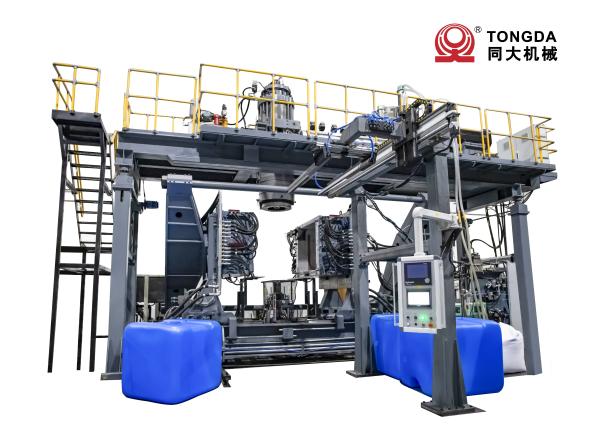

TONGDA TDB-1200L Plastic 1000L Water Tank Blow Molding Machine
Product Description
TDB-1200L

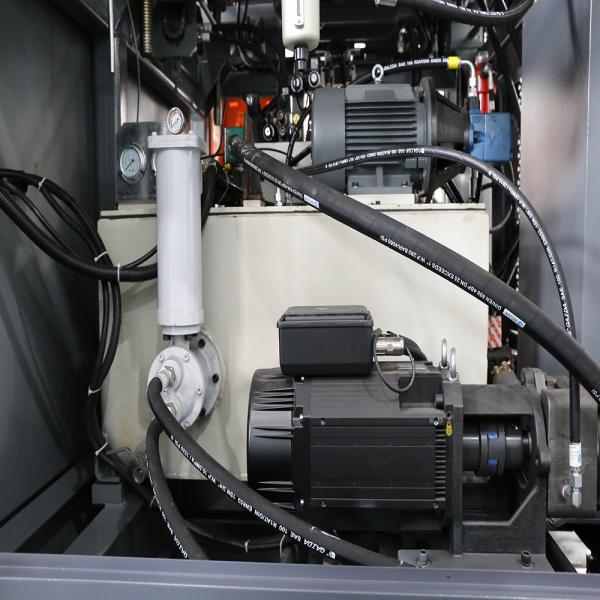

This machine is specialized in making 1000L IBC water tank. This is equipped with servo motor. The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.

Technical Parameters

MODEL Units TDB-1200L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 1200
Output of HDPE kg/h 550
Clamping force kn 1300
Screw diametre mm 150×2 32:1
Screw heating power kw 70
Blow pressure mpa 0.6
Size of machine m 10.6×3.5×5.6
