Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$129,999.00 - $149,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
HSII-30L
Hollow part volume :
Within 30L
Clamping Force (kN) :
250KN
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
28
Screw diameter (mm) :
100 mm
Output (kg/h) :
300 kg/h
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
1.2 m³/min
Description

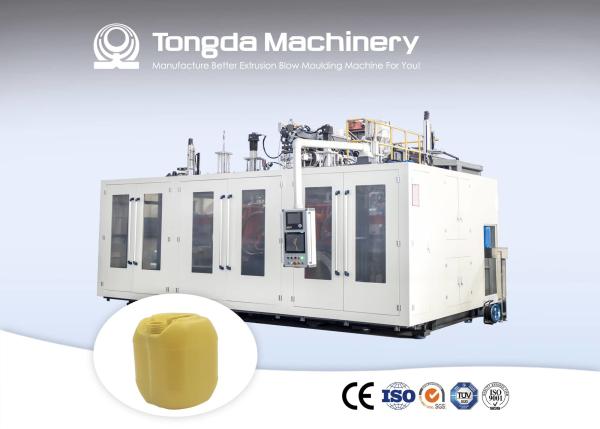

TONGDA HSll30L Extrusion Plastic Bottle 20-30L Stacking Jerry Can Blow Molding Machine For HDPE Containers

Product Description

This HSII-30L model machine belongs to our best series extrusion blow molding machine.

With double station and electric-hydraulic control. It is high speed and energy-saving. The blow pin, die-head up & down, platform up & down is controlled by electric. The main movement is controlled by hydraulic servo system. Clamping unit is elbow style and the clamping force is big.

Suitable for the production of 20L~30L stacking jerry can, PP 5 gallon water bottles, etc.

Continuous type die head, with shorter cycle time.

Technical Parameters

MODEL
Units
HSII-30L
Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
5
Output of HDPE
kg/h
110
Clamping force
kn
110
Screw diametre
mm
80
Screw heating power
kw
19
Blow pressure
mpa
0.6
Size of machine
m
4.5x2.7x3.1
Our Advantages

Servo Valve:High Speed, high precision, energy-efficient, advanced servo system

Optional 3D Manipulator:Reduce manual sorting costs and improve productino efficiency

Company Information

In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.

Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding MachineStacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding MachineStacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine

After-sales Service

Before epidemic, we send engineers to customers factory to do installation, debugging.

And from the COVID-19, sending out engineers is not convenient, so we started to do after-sales service by online training.

Stacking Jerry Can Blow Molding Machine 20L - 30L HDPE Moulding Machine

Why Choose Us

  • Having service office in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria
  • We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

FAQ

Q:What are advantages of TONGDA after-sales team?

A:

  • Lifetime free service for the machine.
  • Quick response all day long.
  • Set up domestic service team and international service team.
  • Technicians also master the debugging and maintenance of auxiliary equipment.

Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
