Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$39,999.00 - $54,999.00/Sets
Model Number :
HTSII-5L
Certification :
CE, ISO9001
MOQ :
1SET
Payment Terms :
T/T, L/C, D/P, West Union
Delivery Time :
28 working days
Screw diameter (mm) :
80 mm
Suitable bottle :
1-5L
Station :
Double Station
Screw L/D Ratio :
25
Output (kg/h) :
110 kg/h
Clamping Force (kN) :
110
Mold moving stroke :
450mm
Description

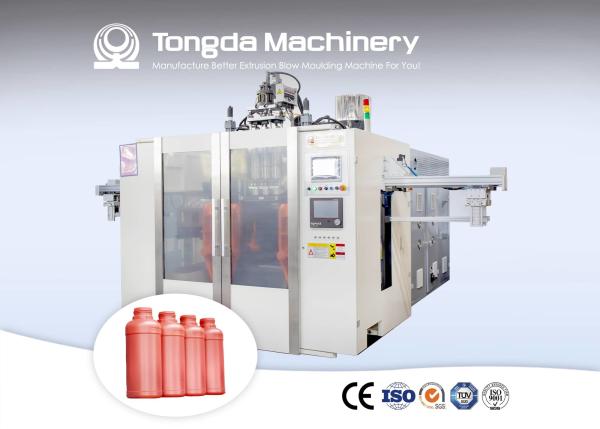

TONGDA HTSII5L Automatic 1 Gallon 5L HDPE Bottle Pesticide Container Making Machine Extrusion Blow Molding Machine

Product Description

This HTS series machine is our most cost effective series machine. It is suitable for producing HDPE bottles size below 5 liters. If equipped with multi head die-heads, it also suitable for producing small plastic bottles blow molding.

The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters
MODEL
Units
HTSll-5L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
5
Output of HDPE
kg/h
110
Clamping force
kn
110
Screw diametre
mm
80
Screw heating power
kw
19
Blow pressure
mpa
0.6
Size of machine
m
4.1*2.6*2.7
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine

Product Details

Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine

Standard air valve, with stable function

Most cost effective series machine for high production capacity choice

Suitable for equip multi screws to produce multi layer products

It is our classic type machine, running stable, and easy to operate.

Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine

Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.

Touch screen we use large size INNOVANCE

After-sales service

Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine
Arrange engineer to customer's factory

Company information

Pesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding MachinePesticide Automatic Plastic Bottle Making Machine 1 Gallon 5L Blow Molding Machine

Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.

FAQ

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
