Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$29,999.00 - $44,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
70-80 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HTSll2L
Clamping Force (kN) :
44
Screw L/D Ratio :
25
Screw diameter (mm) :
60 mm
Output (kg/h) :
60 kg/h
No. of Screw Heating Zone :
3
Screw Heating Power(kW) :
11.2 kW
Description

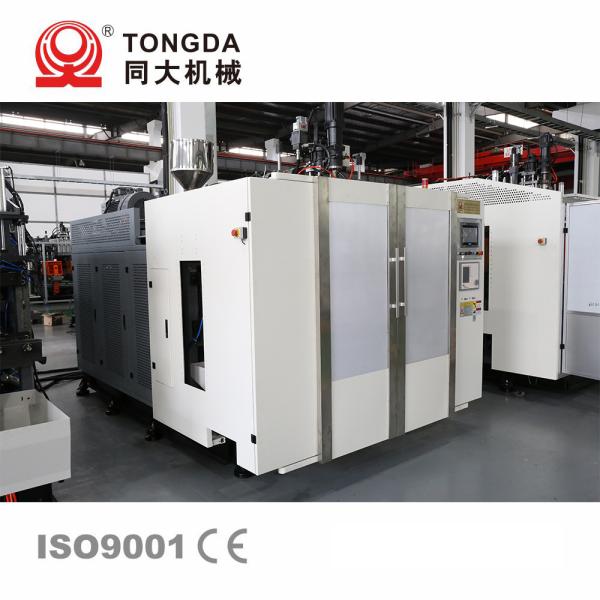

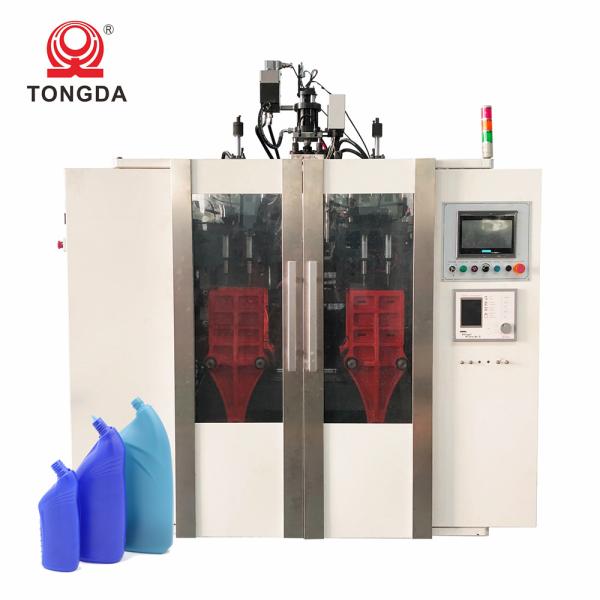

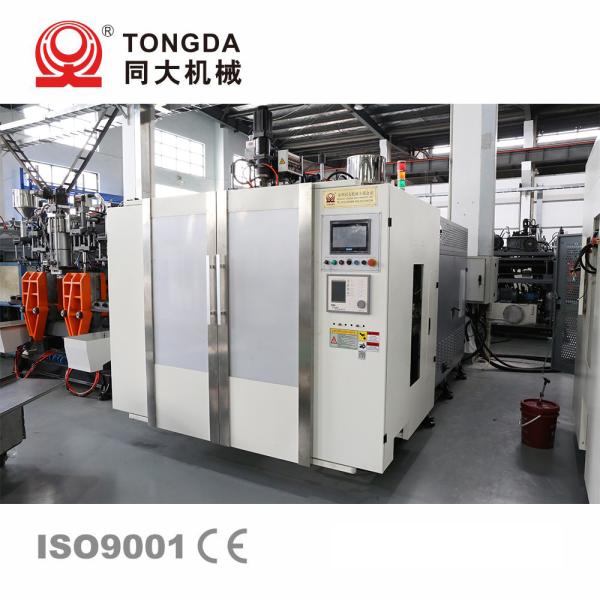

TONGDA HTSII2L Fully sutomatic 2 cavity high speed milk bottle blow molding machine
Product Description
HTSll-2L
This is our normal series machine. It is double station. This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Technical Parameters
MODEL Units HTSII-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 2
Output of HDPE kg/h 60
Clamping force kn 44
Screw diametre mm 60 25:1
Screw heating power kw 11.2
Blow pressure mpa 0.6
Size of machine m 3.2×2.12×2.55

Product Details

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

Hydraulic valve group, cost effective, fast reaction, the clamping force is strengthened for the molding locking

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

Our Advantages
After-sales service
Arrange engineer to customer's factory
We supply the after-service online 24 hours
Company Information
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas.
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.
Why Choose Us
Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.
FAQ

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
