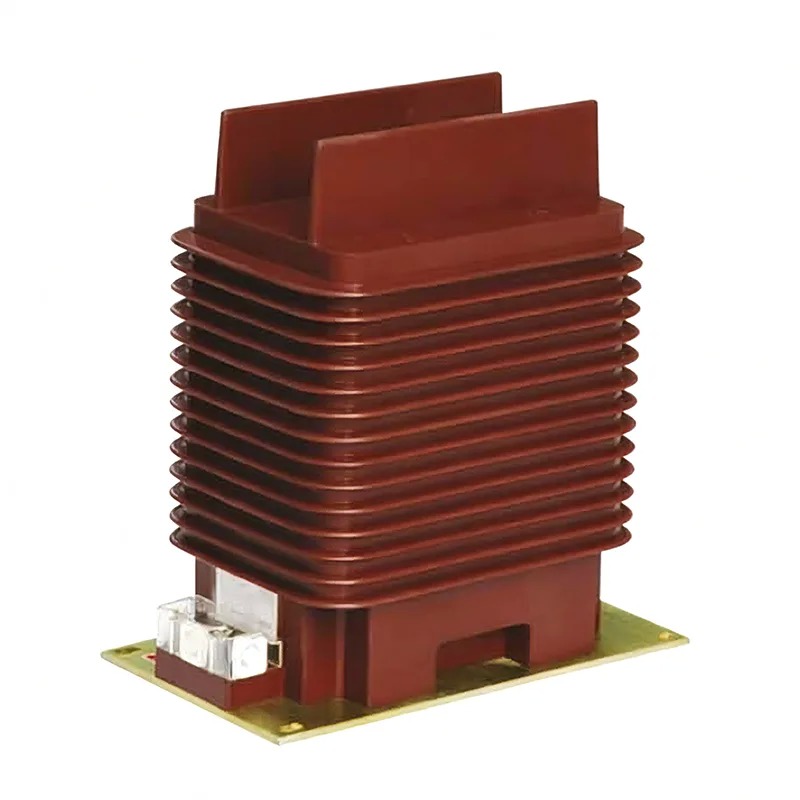

35 kV Current Transformer with Vertical Fully Enclosed Structure, UV-Resistant Epoxy Resin, and Amorphous Alloy Iron Cores
35 kV Current Transformer with Vertical Fully Enclosed Structure, UV-Resistant Epoxy Resin, and Amorphous Alloy Iron Cores
35 kV Current Transformer with Vertical Fully Enclosed Structure, UV-Resistant Epoxy Resin, and Amorphous Alloy Iron Cores
35 kV Current Transformer with Vertical Fully Enclosed Structure, UV-Resistant Epoxy Resin, and Amorphous Alloy Iron Cores
Specifications
Relative humidity :
95% (at 25 °C)
Rated frequency :
50/60 Hz
Temperature range :
-45~+45 °C
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Brand Name :
Dahu
Primary current range :
5-2500 A (customizable)
Max wind speed :
34m/s
Price :
negotiable
Place of Origin :
China
Payment Terms :
L/C, T/T, D/P, D/A
Applicable systems :
33kV, 35kV, 36kV, and 40.5kV
Description
35 kV Current Transformer
Youbian's durable 35 kV current transformer features a vertical fully enclosed structure, engineered for high performance in demanding electrical environments. It complies with IEC 61869 standards and meets IEEE C57.13 and NBR6855 requirements.
Key Features & Benefits
  • Robust Construction: Comprised of an expander, primary terminals, porcelain bushing, and oil tank.
  • Advanced Materials: High-quality UV-resistant epoxy resin with amorphous alloy iron cores.
  • Outdoor Durability: High resistance to weather, pollution, and mechanical stress.
  • Maintenance Ready: Equipped with a grounding plate and a convenient drain valve for oil sampling.
Application Environment
Use Cases: Outdoor applications, pole mounted, and transmission lines.
Operating Conditions: -45 to +45 °C, max wind speed 34m/s, seismic intensity up to 8 degrees.
Technical Specifications
Parameter Specification
Rated frequency 50/60 Hz
Primary current range 5-2500 A (customizable)
Applicable systems 33kV, 35kV, 36kV, and 40.5kV
Temperature range -45~+45 °C
Relative humidity 95% (at 25 °C)
