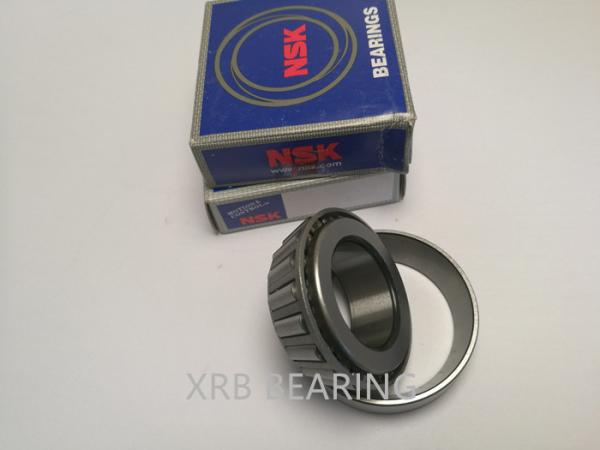

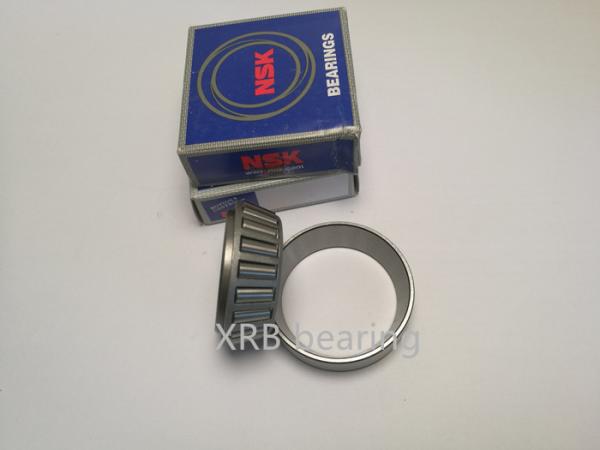

Single Row Tapered Roller Bearings NSK HR32215J Bearing 75×130×33.25mm Used In Gears and Drives

Single Row Tapered Roller Bearings NSK HR32215J Bearing is one kind of tapered roller bearing design . Its dimension is 75×130×33.25mm , weight is 1.7kg , the material are adopt high quality chrome steel , this design are separable. the bearing ring with the rollers and cage assembly can be separated from the other ring, so this kind of bearing are the same with single row cylindrical roller bearings.

Taper Roller Bearings also have the other different design as follows

• Inch series Tapered Roller Bearing
• Flanged side taper roller bearing
• Special taper roller bearing
• U type taper roller bearing
• Steering Taper roller bearing
• Interior taper roller bearing

NSK HR32215J bearing is Tapered roller bearing and commonly type and widely used in many application like the spindle of machine , it contains inner ring , outer ring , and steel cage,tapered roller bearing can carry radial and axial loads in both directions , NSK Taper roller bearings are particularly versatile and are simple in design , separable , NSK HR32215J bearing suitable for high and middle high capacity , but low cost maintenance . as one of the biggest top quality bearing brand , Quality can be approved by the market .

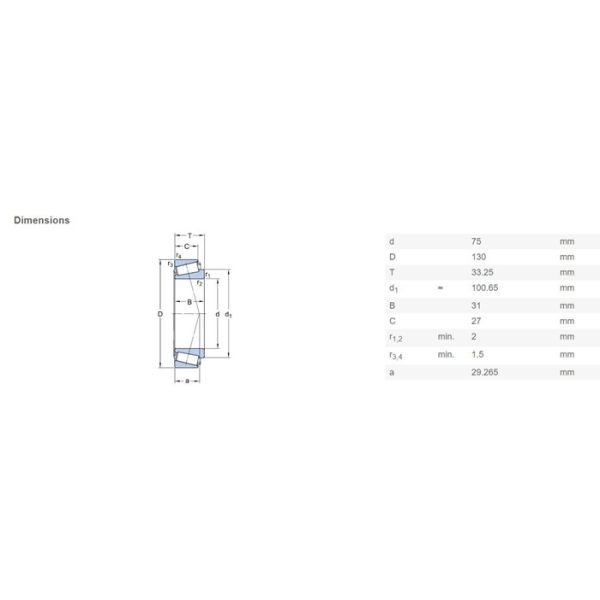

Technical Features Of NSK HR32215J Bearing

Boundary Dimensions: In accordance with ISO 355-1977 DIN 616 (large bearings)

Tolerances : Normal, with O/D over 420 mm the running accuracy is P6

Heat Stabilization : Bearings up to 165mm O/D 302°F (125°C) 166-420mm O/D 392°F

(150°C)

Misalignment : 3 minutes of arc (logarithmic profile rollers)

Cage Material :

Standard : Steel Cage

Optional : None

Axial Load – max : Contact EASIER Application Engineering

Seals : Not available

Application Of Single Row Tapered Roller Bearings

XRB is the China bearing manufacturer , exporter , supplier , it can supply complete series of tapered roller bearing , including inch tapered roller bearing , metric tapered roller bearing , flanged taper roller bearing , paired tapered roller bearing , sealed taper roller bearing , double row taper roller bearing , four-row taper roller bearing . TIMKEN , NSK , FAG , NTN , NACHI , ZKL etc. are available .

We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea , by Train are all available . we assure we can ship high quality taper roller bearing to your office at the first time .
