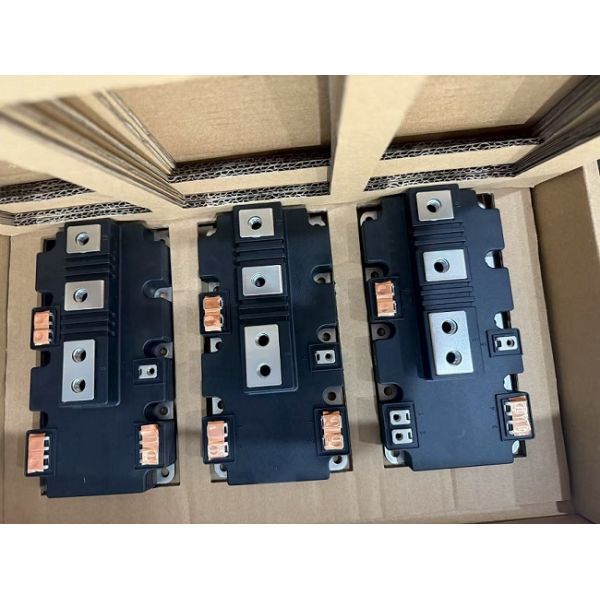

INFINEON FF600R12IP4 Dual IGBT Modules PrimePACK 1200V 600A Assembled in Gernamy

Product Snapshot
The Infineon FF600R12IP4 is a 1200 V, 600 A half-bridge IGBT4 module packaged in the rugged PrimePACK™ 3 housing. Optimized for wind, solar and industrial motor-drive applications, it delivers industry-leading power density, low switching losses and superior thermal performance up to 175 °C junction temperature.

Key Advantages
• 1200 V blocking voltage with 600 A nominal current per switch position
• TRENCHSTOP™ IGBT4 + Emitter-Controlled 4 diode technology – up to 15 % lower Eoff vs. previous generation
• Al₂O₃ ceramic substrate & AlSiC baseplate for 30 % higher thermal cycling capability (ΔTj = 70 K, >60 k cycles)
• Integrated NTC for accurate overtemperature protection (R25 = 5 kΩ ±5 %)
• Press-fit power pins eliminate solder fatigue; optional pre-applied phase-change thermal interface material (TIM)
• UL 1557 recognized, IEC 60747-15 & RoHS/REACH compliant

Technical Specifications
• Topology: Half-bridge (2 in 1)
• VCES: 1200 V
• IC @ 80 °C: 600 A
• VCE(sat) typ: 1.70 V @ 600 A, 25 °C
• Switching Energy: Eon = 115 mJ, Eoff = 145 mJ (600 A, 600 V, 150 °C, RG = 1.5 Ω)
• Diode IF: 600 A
• Diode VF: 1.55 V typ @ 600 A, 25 °C
• tq (diode): 0.9 µs typ
• Module Stray Inductance: ≤20 nH
• Isolation Voltage: 6 kV (50 Hz, 1 min)
• Creepage / Clearance: 14.0 mm / 12.7 mm
• Operating Temperature: –40 °C … +150 °C (Tvj)
• Mounting Torque: 3 N·m (M5) per power terminal, 1.5 N·m (M4) per auxiliary terminal
• Weight: 305 g
• Package: 140 × 100 × 38 mm PrimePACK™ 3

Typical Applications
• Multi-MW wind-turbine converters
• Solar central inverters up to 1500 VDC bus
• High-power motor drives (pumps, compressors, cranes)
• Active front-end (AFE) rectifiers and UPS systems

Compliance & Ordering
Part Number: FF600R12IP4
Standards: CE, UL, CSA, RoHS/REACH, IEC 60747-15
Packaging: Tray (5 modules per box), datasheet & RoHS certificate included.
