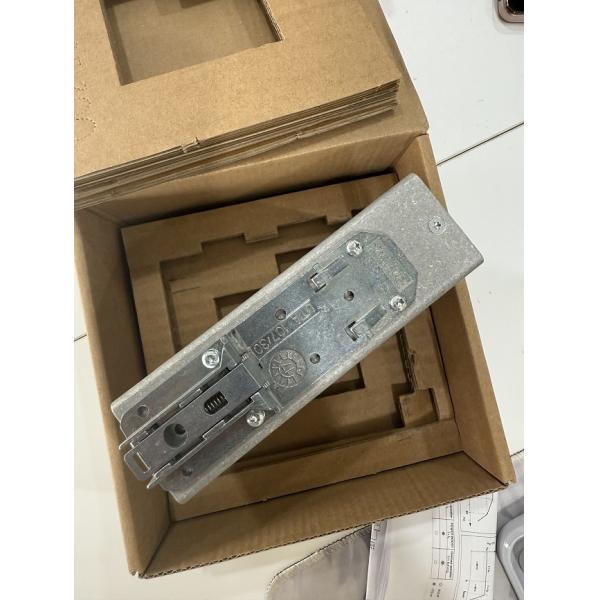

Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input
Specifications
Brand Name :
Phoenix Contact
Model Number :
QUINT-PS/1AC/24DC/5 Order No. 2866750
Certification :
COO & COC
Place of Origin :
Thailand
MOQ :
1
Price :
$77-88
Payment Terms :
T/T,Alipay,Paypal
Supply Ability :
99+
Delivery Time :
3-5 days
Packaging Details :
Brand New & Original
Order Number :
2866750
Shipping Weight :
1.5 kg
Packing Size :
13.5*13.0*4.5 cm
Condition :
Brand New & Original
Warranty :
1 year
Trade Terms: :
EXW, DAP, FOB, CIF
Express Delivery :
DHL, FedEx, UPS
Description

Phoenix Contact QUINT-PS/1AC/24DC/5 Order No. 2866750 Power supply 1-phase Input

Product Overview
The Phoenix Contact QUINT-PS/1AC/24DC/5 (Order No. 2866750) is a high-performance DIN-rail power supply that converts 90–264 V AC into a regulated 24 V DC / 5 A output for demanding industrial automation and process applications. Featuring Selective Fuse Breaking (SFB) technology, it delivers 6-times nominal current for 15 ms to trip standard circuit breakers and clear downstream faults without shutting off the entire system. The conformal-coated PCB, –25 °C to +60 °C operating range, and integrated surge protection make it the ideal choice for harsh plant-floor environments.
Key Features & Benefits
• 24 V DC / 5 A (120 W) continuous output – powers sensors, actuators, HMIs
• 90–264 V AC universal input – global mains compatibility
• SFB selective fuse trip – 30 A for 15 ms, clears branch faults fast
• Wide temperature range –25 °C…+60 °C, full power without derating
• Conformal-coated PCB – moisture, dust, and chemical resistance
• >97 % efficiency – minimal heat, reduced panel cooling cost
• Push-in spring terminals – tool-free wiring, vibration-proof
• UL 508, CE, ATEX Zone 2, IECEx, Class I Div 2, ABS marine certified
• Remote ON/OFF & DC OK relay contacts – integration with safety systems
• Parallel operation & hot-swap capable – redundancy or higher power
Typical Applications
• PLC, HMI & I/O rack power
• Motor brake & contactor supplies
• Sensor & actuator islands
• Offshore and marine control panels
Technical Specifications
Order No.: 2866750
Input: 90–264 V AC, 47–63 Hz, 1-phase
Output: 24 V DC / 5 A (120 W)
SFB Current: 30 A for 15 ms
Efficiency: >97 % (typ. 230 V AC)
Ripple & Noise: <50 mV pp
Hold-up Time: >35 ms (230 V AC)
Operating Temperature: –25 °C…+60 °C

Product Images

Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input

Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input

Phoenix Contact QUINT-PS/1AC/24DC/5 2866750 DIN Rail Power Supply 1 Phase Input

Related Products

2866750 – QUINT-PS/1AC/24DC/5 2866763 – QUINT-PS/1AC/24DC/10
2866776 – QUINT-PS/1AC/24DC/20 2866789 – QUINT-PS/1AC/24DC/40
2866747 – QUINT-PS/1AC/24DC/3.5 2866679 – QUINT-PS/1AC/48DC/5
2866734 – QUINT-PS/3AC/24DC/5 2866705 – QUINT-PS/3AC/24DC/10
2320908 – QUINT-PS/1AC/24DC/5/CO 2904600 – QUINT4-PS/1AC/24DC/5
2904601 – QUINT4-PS/1AC/24DC/10 2904620 – QUINT4-PS/3AC/24DC/5
2320173 – QUINT-ORING/24DC/2X10/1X20 2320157 – QUINT-DIODE/12-24DC/2X20/1X40
2800836 – CB TM1 1 A SFB P 2800837 – CB TM1 2 A SFB P
2320076 – QUINT-PS/FAN/4 2938235 – UWA 182/52
2320089 – UTA 107/30 2866514 – TRIO-DIODE/12-24DC/2X10/1X20
