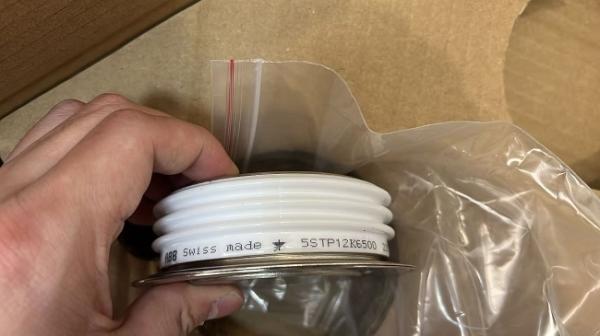

ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
Specifications
Brand Name :
ABB
Model Number :
5STP12K6500 1400A 6500
Certification :
COO & COC
Place of Origin :
Switzerland
MOQ :
1 pc
Price :
$300-$350
Payment Terms :
T/T,paypal,alipay
Supply Ability :
99+
Delivery Time :
3-5 days
Packaging Details :
Brand new and original
Shipping Weight :
1.2 KG
Packing Size :
10.5 x 10.5 x 3.5 cm
Condition :
Brand new and original
Warranty :
One year
Trade Terms: :
EXW, DAP, FOB, CIF
Express Delivery :
DHL, FedEx, UPS
Description

ABB 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory

Product Overview
The ABB 5STP12K6500 is a rugged, high-voltage phase-control thyristor in disc-package design, engineered for demanding rectifier, soft-start, and AC-switch applications up to 6500 V. With a 1200 A average on-state current and 14 kA surge capability, it delivers reliable switching in traction drives, HVDC converters, and large motor starters. The hermetically sealed ceramic disc meets IEC 60747 and UL 1557 standards for high-power semiconductor devices.


Key Features & Benefits
• 6500 V repetitive peak off-state voltage (V<sub>) – withstands extreme line transients
• 1200 A average on-state current (I<sub>) – continuous 2.4 MW switching
• 14 kA non-repetitive surge current (I<sub>) – survives lightning & fault currents
• 2.3 V low on-state voltage (V<sub>) – minimal conduction losses
• Disc Ø 50 mm, height 26 mm – compact footprint for high-power stacks
• Hermetic ceramic package – moisture, vibration & thermal-shock resistant
• UL 1557 & IEC 60747-6 certified – global safety compliance


Technical Specifications
Part No.: 5STP12K6500
V<sub>: 6500 V
I<sub>: 1200 A
I<sub>: 14 kA (10 ms)
V<sub>: 2.3 V @ 2000 A
I<sub>: 150 mA (gate trigger)
Package: Disc Ø 50 mm, 26 mm height
Operating Temperature: –40 °C … +125 °C
Mounting: Clamp pressure 40–60 kN
Weight: 0.38 kg


Typical Applications
• HVDC converter valves
• Traction drive rectifiers
• Soft-start motor starters (up to 3 MW)
• Static VAR compensators (SVC)

Product Details Pictures

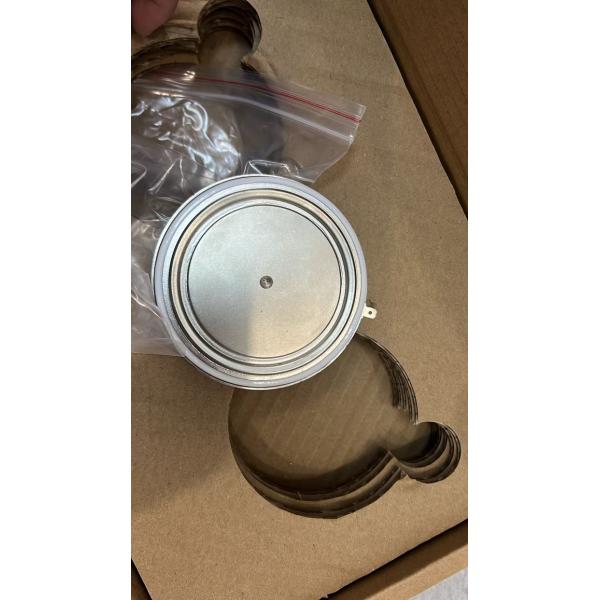

ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory

ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory

ABB Spares 5STP12K6500 1400A 6500V Phase Control Thyristor PCT Control System Accessory
