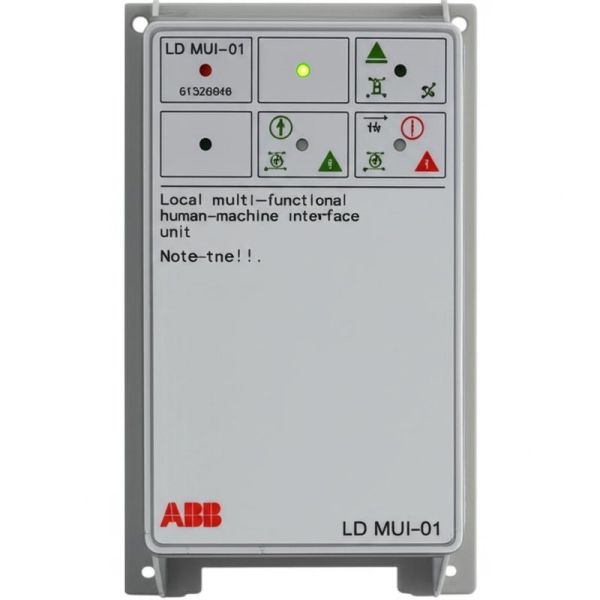

LD MUI-01 61320946 ABB Local multi-functional human-machine interface unit

ABB LD MUI-01 is a Local multi-functional human-machine interface unit specifically designed for Relion® 615, 620 and 650 series multi-functional protection relays (such as REF615, REM615, REF650, RED650, etc.) Multi-function User Interface. This device communicates with the main relay via a dedicated connection cable, providing an intuitive LCD display, operation keys and status indicators. This enables maintenance personnel to directly view measurement values, confirm alarms, execute control commands or configure parameters on-site without relying on remote SCADA or engineering laptops.


Technical parameters


Model Name LD MUI-01
ABB Order Code 61320946
Product Type Local Operator Display / MMI Module
Primary Application Platform ABB ECoS庐 Railway Interlocking System
Display Type Monochrome LCD or alphanumeric LED display (variant-dependent)
Display Size Typically 2脳16 or 4脳20 character format


Installation and Usage instructions

Mechanical installation
The opening of the control cabinet door is 92 × 45 mm.
Insert the LD MUI-01 from the front and lock it with the snap at the rear.
Install the sealing gasket to ensure IP65 protection.
Electrical connection
Connect to the MUI interface on the back of the main relay using the included 8-core shielded cable.
The shielding layer of the cable needs to be grounded at a single point to prevent interference.
Operation process
Automatically synchronize the host data upon startup.
Use the arrow keys to browse the menu (measurement values, events, controls, etc.);
Press "Confirm" to perform the operation (such as "Trip Reset" or "CB Close");
When an alarm occurs, the red LED flashes and the screen displays the fault code.
