Description

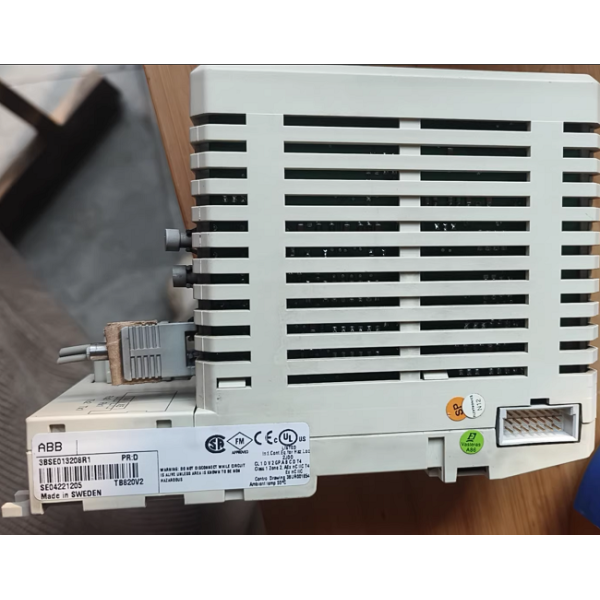

TB820V2 ABB I/O electronic frame base plate AC 800M S800 I O

The ABB TB820V2 is a standard 8-slot I/O electronic frame (also known as the base plate or back plate) for the S800 I/O system, specifically designed for vertical installation. It is used to support and connect up to 8 S800 series I/O modules (such as DI801, DO810, AI810, AO810, etc.). It provides power distribution and high-speed data communication channels for the module through the built-in ModuleBus bus, and connects to the CI801 (electrical) or CI854A (optical fiber) communication interface module via a dedicated interface, thereby accessing the AC 800M controller.


Technical Specifications


Model TB820V2
ABB Ordering Code 3BSE038456R1
Product Family ABB S800 I/O System
Compatible Base Units TU810V1, TU830V1, TU811V1
Max I/O Modules Supported 8 per termination unit
Mounting 35 mm DIN rail (EN 60715)
System Power Input +24 V DC (from power supply unit)
Field Power Input External +24 V DC (isolated)
Backplane Interface Dual ModuleBus (for redundancy support)
Fuse Protection Resettable PTC fuses for system and field power
LED Indicators Power OK, Redundancy Status
Operating Temperature 0掳C to +60掳C
Certifications CE, UL, CSA, IEC 61010-1, IEC 61326, RoHS
