VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems
VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems
VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems
VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems
VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems
VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems
Specifications
Model Number :
VX5A1300
Payment Terms :
T/T,Alipay,Paypal
Warranty :
1 year
Condition :
Brand new and original
Supply Ability :
99+
Shipping Weight :
0.45kg
Brand Name :
Schneider Electric
Packaging Details :
Brand new and original
MOQ :
1
Delivery Time :
3-5 days
Trade Terms: :
EXW, DAP, FOB, CIF
Certification :
COO & COC
Place of Origin :
France
Price :
$180
Packing Size :
220 x 130 x 38 mm
Express Delivery :
DHL, FedEx, UPS
Description

VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems

The Schneider Electric VX5A1300 is an original soft start board designed for the Altivar 71 series variable frequency drives. This board controls the pre-charge circuit that gradually energizes the DC bus capacitors during power-up, preventing destructive inrush currents that can damage rectifier diodes and capacitor banks.
Engineered for industrial reliability, the VX5A1300 incorporates a controlled thyristor-based soft charging sequence that limits peak current to safe levels before the main contactor closes. Built-in monitoring circuits verify successful pre-charge completion and trigger fault protection if the DC bus voltage fails to reach the expected threshold within the designated time window.
Replacing a failed soft start board with a genuine Schneider Electric VX5A1300 eliminates repeated fuse blowing and capacitor degradation caused by uncontrolled startup surges. Each unit is factory-tested to original Altivar 71 specifications, ensuring seamless integration and long-term operational stability for your VFD system.

Product Specifications: Schneider Electric VX5A1300


Parameter Specification
Brand Schneider Electric
Model VX5A1300
Product Type Soft Start Board
Series Altivar 71
Function DC Bus Pre-Charge / Inrush Current Limiting
Operating Voltage 380-480 VAC (3-Phase)
Control Method Thyristor Phase Control
Protection Overcurrent / Pre-Charge Timeout Fault

In stock | Fast delivery | Global shipping

Product pictures

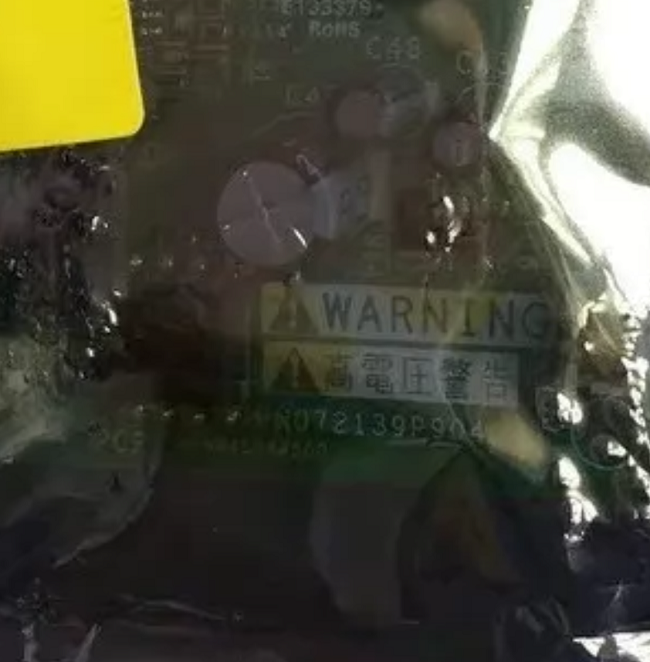

VX5A1300 Schneider Electric Original Soft Start Board for Altivar 71 Series Industrial Variable Frequency Drive Systems

Related products


VX5A1400 VX5A1203
VX5A1HC1316 VX4A1113
VX4A1102 VX4A1104
VX4A71101 VX5A1204
VX5A1205 VX5A1301
VX5A1401 VX4A1105
VX4A1106 VX5A1HC1317
VX5A1206 VX4A71102
VX5A1302 VX5A1402
VX4A1107 VX4A1108

FAQ

Q1: Which inverter series does the Schneider VX5A1300 fit?
A: It is designed for the Schneider Electric Altivar 71 series variable frequency drives.
Q2: What is the main function of the VX5A1300?
A: It controls the DC bus pre-charge sequence to limit inrush current during drive power-up and protect internal components.
Q3: Is the Schneider Electric VX5A1300 an original part?
A: Yes, we supply genuine Schneider Electric original boards to ensure full compatibility and reliability.
