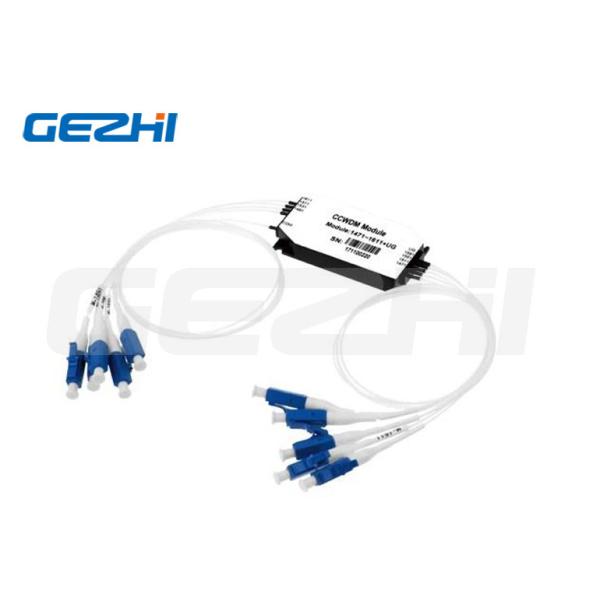

1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-CCWDM
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Name :
Mini CWDM
Connector Type :
LC/APC or Customer Specified
Application :
Computer, Workstation, Server, CATV, FTTH, Wdm Systems
Operating Temperature :
-5~70 ℃
Channel Bandwidth :
ITU±6.5 Nm
Description
1471~1611+UG CWDM Mux Demux Module LC/APC Mini CWDM For Server CATV FTTH
CCWDM module of Gezhi is a wavelength division multiplexing technology based on TFF (thin film filter). It works in the same way as the CWDM module. The difference is that CCWDM adopts free space technology, Compared with the CWDM module, its package size is greatly reduced, and the insertion loss is lower and the consistency is better. It can replace CWDM products and be used in TC, enterprise network, PON network, CATV and other fields.
Technical Specifications
Items Unit CCWDM Module
Channels CH 4 | 8 | 16 | 18
Operating wavelength nm 1260~1620
Transmission band nm ±6.5,±7.0,±7.5
Transmission band insertion loss dB ≤1.4 | ≤1.7 | ≤2.0 | ≤2.5
Transmission Adjacent Isolation dB ≥30
Transmission Non-adjacent isolation dB ≥45
Return loss dB ≥45
Directivity dB ≥50
Ripple dB ≤0.5
Package dimension mm L50xW27xH7.7,L50xW44xH7.7
Operating temperature ℃ -25~+70
Fiber type 900um loose tube
Connector type LC/PC(or customize)
Product Drawing
1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
Key Features
  • Low optical insertion loss
  • Low Polarization Dependent Loss
  • Small dimension
  • Cost-effective CWDM technology
  • Low-profile modular design
  • High isolation
  • Good channel-to-channel uniformity
  • Wide operating wavelength range
  • High reliability and high stability
  • Telcordia GR-1209-CORE-2001 compliant
  • Telcordia GR-1221-CORE-1999 compliant
  • RoHS-6 compliant (lead free)
Applications
  • CWDM system
  • PON network
  • Cable chain
