16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GEZHI-DWDM
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$108-US$368
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Channels :
16
Description
16 Channels Dual Fiber DWDM Mux Demux 1U Rack Mount LC UPC
Product Overview

16 Channels C21-C36 Dual Fiber 1U Rack Mount, LC/UPC Expansion Port DWDM Mux Demux

Key Features
  • DWDM MUX based on ITU grid wavelength
  • High channel isolation
  • Low insertion loss
  • Optical path epoxy free
  • Telcordia 1221 compliant
  • Ultra low TDL
Applications
  • DWDM Network
  • PON Networks
  • CATV Links
  • Fiber Optical Amplifier
Performance Specifications
Parameter Unit Value
Central WavelengthnmITU-T Grid
Channel Spacingnm0.8 (100GHz) | 1.6 (200GHz)
Number of Channels----8 | 16 | 8
Channel Passband Minnm0.11 | 0.11 | 0.25
Insertion Loss TydB3 | 4 | 3
Insertion Loss MaxdB2.5 | 3.5 | 3.5
Ripple MaxdB0.5 | 0.5 | 0.5
Channel Uniformity MaxdB1 | 1.5 | 1
Isolation Adjacent Channels MindB25
Isolation Non-adjacent Channels MindB40
Directivity MindB50
Optical Return Loss MindB45
PDL MaxdB0.15
Thermal Stability MaxdB/°C0.007
Thermal Wavelength Drift Maxnm/°C0.001 | 0.002
Operating Temperature°C0 to 70
Storage Temperature°C-40 to 85
Package Dimensionmm140 × 100 × 13
Maximum Power HandlingmW300
Ordering Information

2-44 Channels available

Com port: simplex or duplex

Fiber connector: LC/SC or other

Package: ABS plastic box, LGX metal cassette box, 19-inch rack mount

DWDM Solutions and DWDM SFP/XFP available

Minimum order quantity: 1 piece available for sampling

Product Images

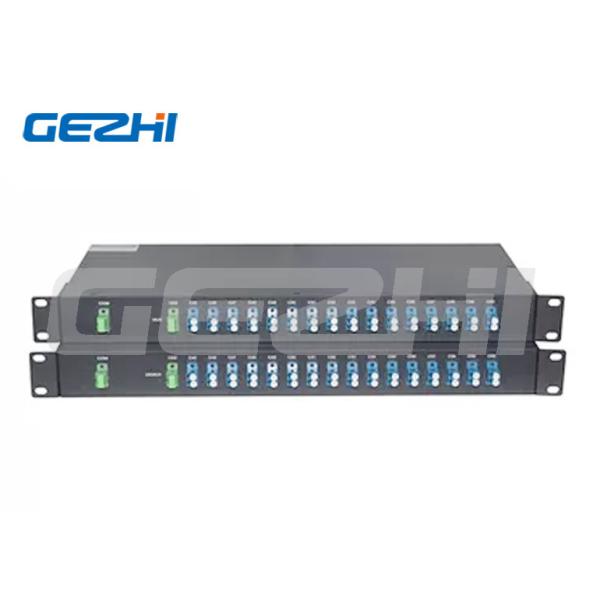

16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
