1x2 Factory Manufacture Mechanical Optical Switch FC SC LC Connectors 3v 5v
1x2 Factory Manufacture Mechanical Optical Switch FC SC LC Connectors 3v 5v
1x2 Factory Manufacture Mechanical Optical Switch FC SC LC Connectors 3v 5v
1x2 Factory Manufacture Mechanical Optical Switch FC SC LC Connectors 3v 5v
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-1x1-13/15
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
2-7 work days
Packaging Details :
2pcs in a foam with plastic Box
Control Type :
Non-Latching/Latching
Product Name :
1x2 Optical Switches
Wavelength :
1310/1490/1550/1625/1650nm
Voltage :
5V or 3V
Connector :
FC/APC or customized
Feature :
High Reliability
Description

Features

Fail-Safe Latching
Unmatched Low Cost
Low Optical Distortions
Epoxy-Free Optical Path
High Reliability

Applications

Channel Blocking

Configurable Add/Drop
System Monitoring
Instrumentation

Specification

Parameters Specifications Unit
Operating Wavelength 1260~1620(SM) nm
Insertion Loss ≤1.0 dB
Wavelength Dependent Loss ≤0.25 dB
Polarization Dependent Loss ≤0.05 dB
Temperature Dependent Loss ≤0.20 dB
Return Loss SM≥50 dB
Cross Talk SM≥55 dB
Switch Time ≤8 ms
Repeatability ≤±0.02 dB
Durability ≥107 times
Operating Voltage 3 or 5 V
Switch Type Non-Latching/Latching
Operating Temperature －20~＋70 ℃
Storage Temperature －40~＋85 ℃
Optical Power ≤500 mW
Dimension 27.0L×12.5W×8.4H mm

Product Overview

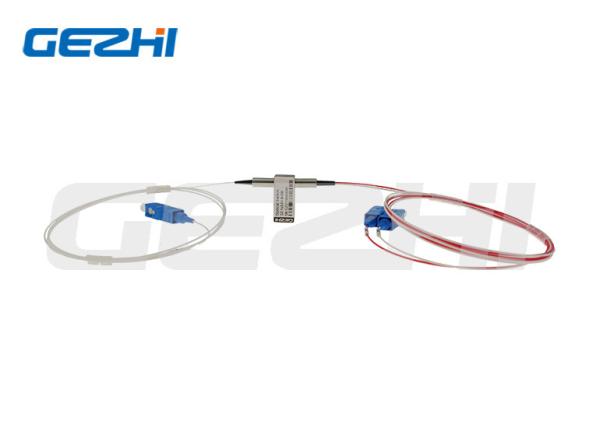

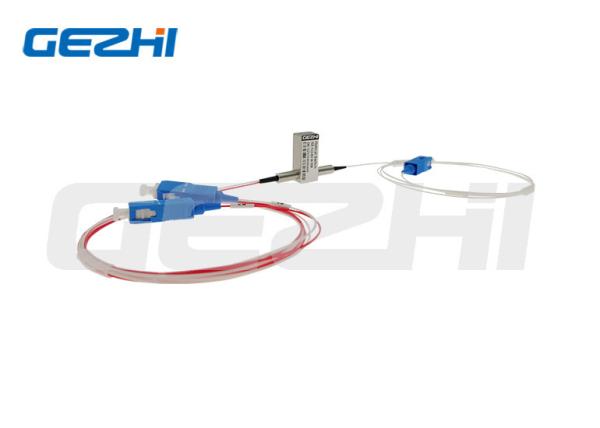

1x2 Factory Manufacture Mechanical Optical Switch FC SC LC Connectors 3v 5v

1x2 Optical Switches

GEZHI 1x2 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.


GEZHI 1x2 Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.


Oder Information

GZ-1×1-13/15

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM		 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non- Latching		 5=50/125
6=62.5/125
9=9/125
X=Others		 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others		 1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others
