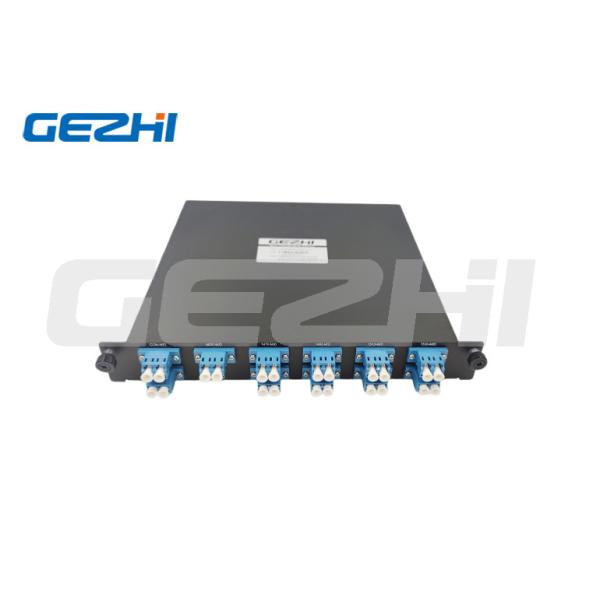

1% Monitor Passive WDM CWDM DWDM Optical Multiplexer with 500mw Power and ITU Grid for Telecom Networks
1% Monitor Passive WDM CWDM DWDM Optical Multiplexer with 500mw Power and ITU Grid for Telecom Networks
Specifications
Brand Name :
GEZHI or OEM
Model Number :
CWDM8A47LLP
Certification :
RoHS ,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Passband :
ITU±7.5
Connector :
LC/UPC
Center Wavelength :
ITU, ITU+1
Port :
8 channel
Wavelength :
1470,1490,1510,1550,1570,1590,1610
Line Type :
Dual Fiber
Description

1% Monitor Optical Passive WDM CWDM DWDM in Telecom Networks

1% Monitor Optical Passive WDM CWDM DWDM in Telecom Networks is part of our xWDM product line uses up to 18 CWDM(Coarse Wavelength Division Multiplex) optical channel plan as defined by ITU-T G.694.2 allowing to organize up to 18 parallel and independent data streams over pair of single-mode optical fibers using CWDM multiplexing. xWDM technology remains as today’s prevailing technology for extending black fiber capacity.

Features

ITU CWDM Grid

CWDM Mux/Demux/OADM

Low Loss & Highly Reliable

Applications

Optical Add/Drop Multiplexing

Telecom Networks

Metro Networks

1% Monitor Optical Passive WDM CWDM DWDM in Telecom Networks

Specification

Parameter Passive WDM CWDM DWDM
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±7.5
Operating Wavelength (nm) 1470~1610nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40～85
BOX Package (mm) LGX chassis

Ordering Information

CWDM Number of Channels Configuration First Channel Last Channel Module type Cable type Fiber length Connector

CWDM

01=1 CH
02=2 CH
03=3 CH
......
16=16CH
17=17CH
18=18CH

......

M=Mux

D=Demux

A=Mux+Demux

27=1270

29=1290

......

47=1470

S=Specify

27=1270

29=1290

......

47=1470

S=Specify

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

A3=ABS box 140x115x18mm

L1=LGX 129*29*130mm

L2=LGX insert in 2slot Rack

L4=LGX insert in 4slot Rack

R1=19" 1 U Rack

R2=2slot 19″1U Rack

R4=4slot 19″1U Rack

S=Specify

 09=900um loose tube
20=2.0mm
30=3.0mm

05=0.5m

10=1.0m
15=1.5m
S=Specify

 00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
S=Specify

1% Monitor Passive WDM CWDM DWDM Optical Multiplexer with 500mw Power and ITU Grid for Telecom Networks

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
