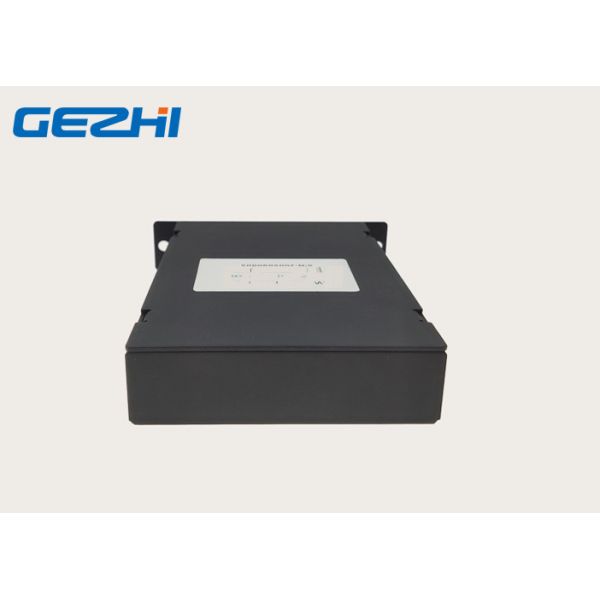

1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
Specifications
Brand Name :
GEZHI or OEM
Model Number :
1x4CH-DWDM-LGX
Certification :
CE RoHS ,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$68-US$168
Payment Terms :
T/T,Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
1x4 DWDM
Wavelength :
C21 to C24
Channel Passband :
0.8nm (100Ghz)
Connector :
LC/UPC
Application :
CATV Fiber Optic Links
Line Type :
Duplex Fiber
Description
Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module
This 1x4 Channel Passive DWDM Mux module with Express Port offers high-capacity terminal DWDM solutions for network expansion. Designed for long-haul transmission where wavelengths are packed tightly together over the C-band (up to 48 wavelengths in 100GHz grid), this protocol-transparent module supports applications including SDH/SONET, 16/8/4/2/1G Fibre Channel, 10/1G Ethernet, CATV, and FTTx.
Applications
  • CATV Fiber Optic Links
  • Long Haul Networks
  • Channel Add/Drop
  • Dense WDM Systems
  • Metro Networks
  • Wavelength Routing
  • Access / Enterprise Networks
Features
  • Epoxy-Free Optical Path
  • High stability and reliability
  • High channel capacity
  • Low Insertion Loss
  • Wide pass band
  • Telcordia GR-1221 Compliant
Technical Specifications
Parameter Unit Passive DWDM Mux Module
Channel Number -- 1x4
Operation Wavelength nm C21,C22,C23,C24 + Express Port
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <1.8
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC adaptor
Fiber Type -- SMF-28e or Customized
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Package Dimension mm LGX cassette
1x4 Channel Passive DWDM Mux Module Filter Cascading
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
Dual Fiber DWDM Configuration
1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
