Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
Specifications
Brand Name :
GEZHI or OEM
Model Number :
1x2-OADM
Certification :
CE RoHS ,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
OADM device
Wavelength :
1290nm
Line Type :
One fiber
Connector :
LC/PC
Package :
Steel Tube
Application :
Optical Add and Drop
Description

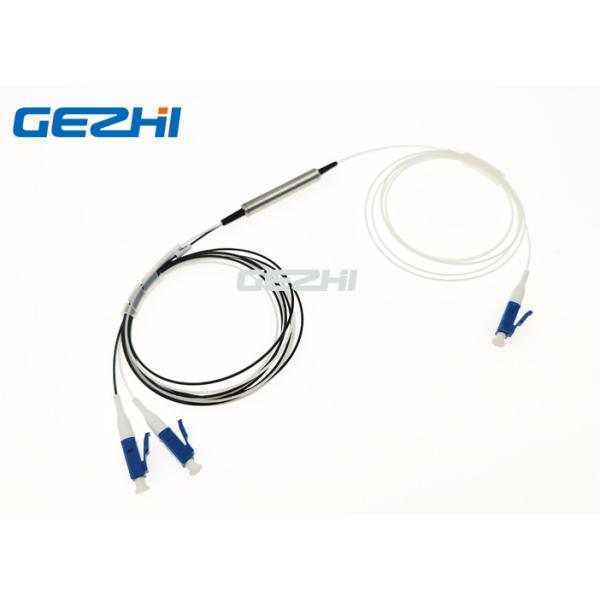

CWDM 1X2 Single Channel Component Optical Add & Drop Multiplexer device

The single channel Coarse WDM Opitcal add & Drop device is thin film filter technology and metal bonding micro optics packaging for improved performance, such as lower insertion loss and higher thermal stability, wide channel bandwidth, flexible channel configuration with a competitive cost structure.

GEZHI's single channel Coarse WDM Opitcal add & Drop device is used to add or drop a particular wavelength and is ideal for telecommunicationsand networking. Additionally, this 1x2 device can be used in high-power applications in CWDM systems.

Features

Low Insertion Loss
High Channel Isolation
Highly Stable & Reliable
Epoxy-Free Optical Path
Low Profile Packaging

Applications

Add/Drop Channels

WDM Systems
Fiber Amplifier System
CATV Fiberoptic Links

Specification

Parameter Specification
Channel Wavelength (nm) 1260 ~ 1620
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Pass Channel Insertion Loss (dB) ≤0.6
Reflection Channel Insertion Loss (dB) ≤0.4
Channel Ripple (dB) <0.3
Isolation (dB) Adjacent >30
Non-adjacent >40
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (℃) -20~+75
Storage Temperature (℃) -40~85
Package dimension (mm)

Φ5.5x34 (Bare fiber)

Φ5.5x38 (900um Loose tube)

Note: 1. Customization is available.

2. Specified with connector

Drawing

It drops or adds one wavelength-specific channel from the network fiber in single-seded transmission.

Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer

1x2 Single Channel CWDM add drop multiplexer for EAST or WEST for bi-directional data transmission over single fibers.

1 Channel Optical Add Drop Multiplexer filter cascading

Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer

CWDM 1X2 Single Channel Component Optical Add & Drop Multiplexer device

Single Channel Component CWDM 1X2 Optical Add Drop Multiplexer
