8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-DWDM MUX 8CH
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$58-US$108
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Key Words :
DWDM Mux
Channel :
8 Channels
Package :
1U 19'' Racks Or ABS Box Optional
Fiber Type :
SMF-28e Or Customer Specified
Application :
WDM Solution
Warranty :
3 Years
High Light :
DWDM MUX DEMUX 2x8CH, Dense WDM System DWDM MUX DEMUX
Description
2x8CH DWDM MUX DEMUX 1U 19" Rack LC/APC C43-C50 Channel
2x8CH DWDM MUX DEMUX 1U 19" Rack LC/APC C43-C50 Channel DWDM Device Optical Equipment
Product Overview
DWDM MUX/DEMUX devices reduce network construction costs. With low-cost and compact dimensions, they are primarily used in metropolitan area networks and access layers, and can also be used to build various network infrastructures.
Key Features
  • Low insertion loss
  • Low polarization dependent loss (PDL)
  • High channel isolation
  • Excellent environmental reliability
  • Optical path epoxy free
  • Telcordia 1221 compliant
  • Ultra low temperature dependent loss (TDL)
  • Wide operating temperature: -40°C to +85°C
Applications
  • Dense WDM Systems
  • PON Networks
  • CATV Links
Performance Specifications
Parameter Specification
Channel Space (GHz) 100 | 200
Channel Number 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ±0.05 | ±0.1
Channel Passband (@-0.5dB) (nm) 0.22 | 0.5
Fiber Type SMF-28e with 900μm loose tube or customer specified
Insertion Loss (dB) 1.8 | 2.3 | 3.0 | 1.7 | 2.9 | 3.1
Passband Ripple (dB) 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5
Isolation (dB) Adjacent Channel: 25 | 28
Non-Adjacent Channel: 40
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mW) 500
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Package Options ABS plastic box (100*80*10mm or 140*115*18mm)
LGX metal cassette box (1U, 2U)
19" rack mount package (1U)
Ordering Information
2-44 channels available
Com port: simplex or duplex
Fiber connector: LC/SC or other types
Package options: ABS plastic box, LGX metal cassette box, 19-inch rack mount
DWDM solutions and DWDM SFP/XFP available
Minimum order quantity: 1 piece for sampling purposes

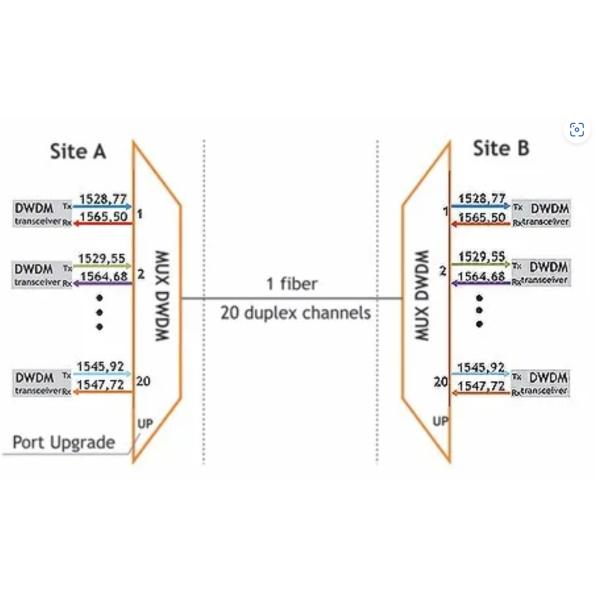

DWDM Mux/Demux Solution
8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer

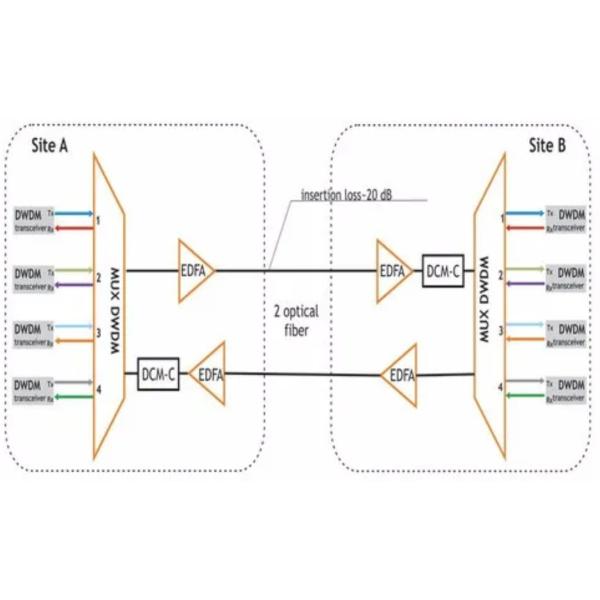

DWDM Mux/Demux with EDFA
8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
