Uniboot 5.0mm LC UPC Connector For Telecommunication Networks
Uniboot 5.0mm LC UPC Connector For Telecommunication Networks
Uniboot 5.0mm LC UPC Connector For Telecommunication Networks
Uniboot 5.0mm LC UPC Connector For Telecommunication Networks
Uniboot 5.0mm LC UPC Connector For Telecommunication Networks
Uniboot 5.0mm LC UPC Connector For Telecommunication Networks
Specifications
Brand Name :
GEZHI
Model Number :
GZ-LUCxxxx
Certification :
CE RoHS,ISO9001
Place of Origin :
China
Fiber Mode :
Singlemode
Insertion Loss :
≤0.25dB
Polish Type :
UPC
Durability :
>1000times
Operating Temp :
-40~85°C
Cable Diameter :
5.0mm
Description

Product Description:

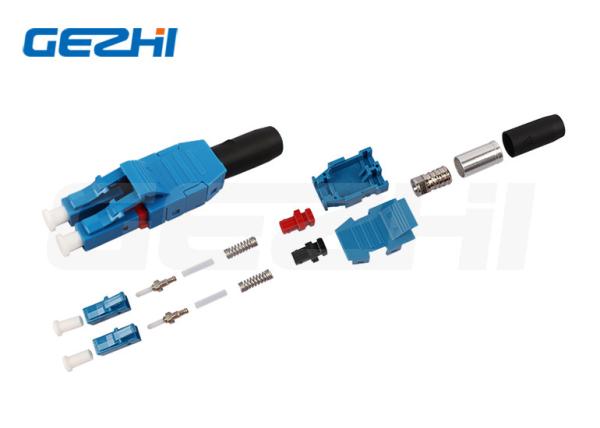

LC/UPC Uniboot 5.0mm Connector for Telecommunication Networks

Uniboot Connector

We produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.We can customize products according to your specifications you needed.

Features

◆Low insertion loss
◆Excellent mechanical capability
◆ High Stability Reliability

Applications

◆Data Processing Networks
◆Premise Installations
◆Wide Area Networks (WANs)

◆Test Equipment
◆Telecommunication Networks
◆Local Area Networks (LANs)

Technical Parameters

Parameter LC Uniboot Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
Operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um

Uniboot 5.0mm LC UPC Connector For Telecommunication Networks

FAQ

Q1:Can I have a sample order? What is your of Uniboot Connector?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of Uniboot Connector?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time of Uniboot Connector?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
