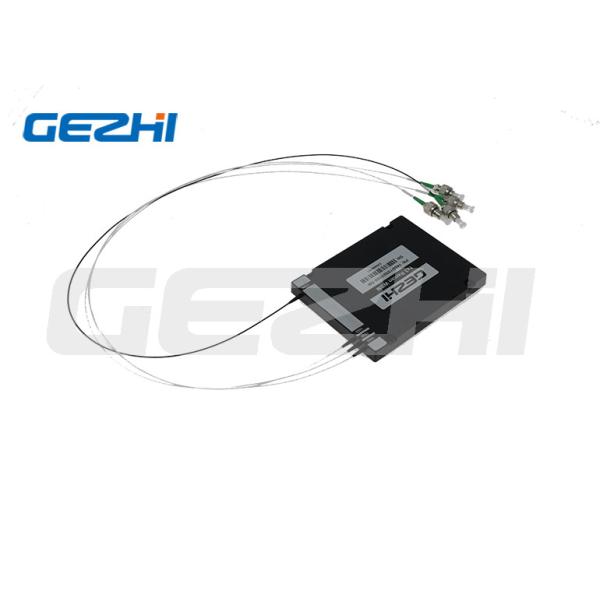

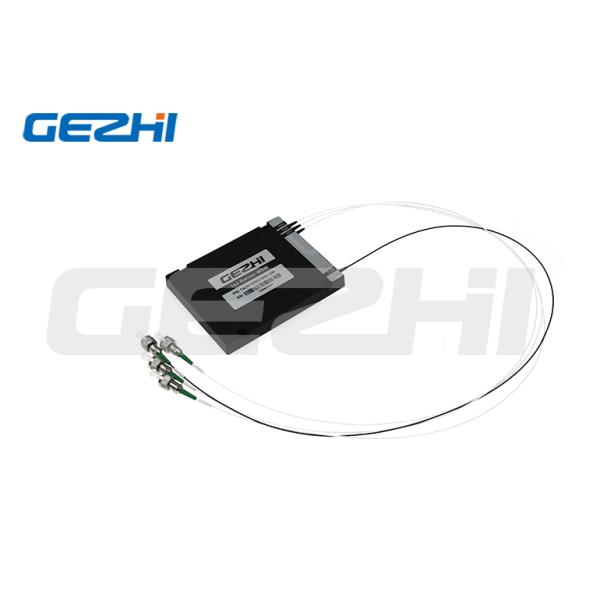

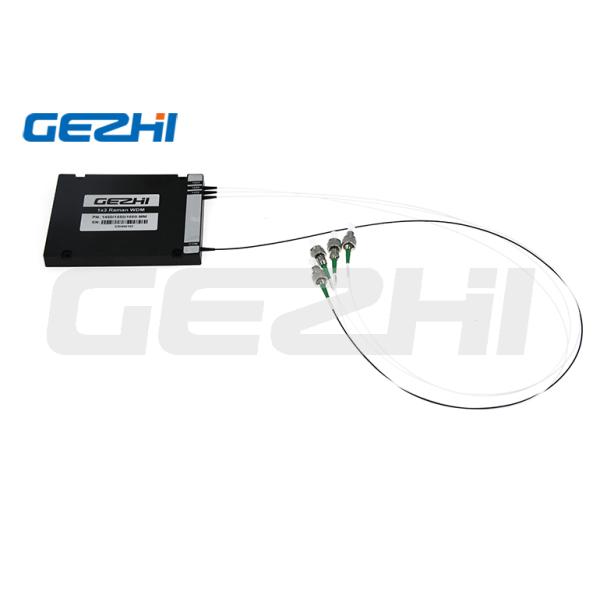

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm
Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm
Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm
Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm
Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm
Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm
Specifications
Brand Name :
Gezhi or OEM
Model Number :
RWM-A2-M5-20-15-SP
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
USD >= 1 pieces $13
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
7 Days
Packaging Details :
inner box,Carton
Connector Type :
FC/APC
Storage Temperature :
-40~+85℃
Operating Temperature :
-10~+70℃
Package dimensions :
100x80x10mm
Center wavelength :
1450/1550/1660nm
Use :
WDM System
Description

Product description

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems(1450/1550/1650nm)

This 1x3 Raman WDM is based on TFF (thin film filter) technology and can transmit multi wavelengths on one optical fiber to increase the network capacity, it used to separate and combine different signal wavelengths at 1450nm, 1550nm, and 1660nm (or 1650nm). Raman Filter WDM Designed by GEZHI Photonics Co.,Ltd with low insertion loss and high isolation Characteristic. It's widely used in Raman DTS systems or other fiber test or measurement systems.

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm

Features

Low Insertion Loss

High Isolation

High Reliability & Stability

Applications

Raman Distributing Temperature Sensor

Fiber Sensor

Test & Measurement

Specifications

Paramenter Unit Value
Operating Wavelength nm 1450/1550/1660
Center Wavelength nm 1450 1550 1660
Bandwidth nm 1260-1500 1535-1565 1600-1670
Insertion Loss dB ≤1.4
Isolation (Adjacent channel) dB ≥60 ≥45 ≥60
PDL dB ≤0.2
PMD ps ≤0.2
Directivity Singlemode dB ≥50
Multimode dB ≥35
Return Loss Singlemode dB ≥45
Multimode dB ≥35
Optical Power mW ≤500
Operating Temperature Range ℃ -10 to 70
Operating Temperature Range ℃ -40 to +85
Package (L x W x H) mm 100 x 80 x 10

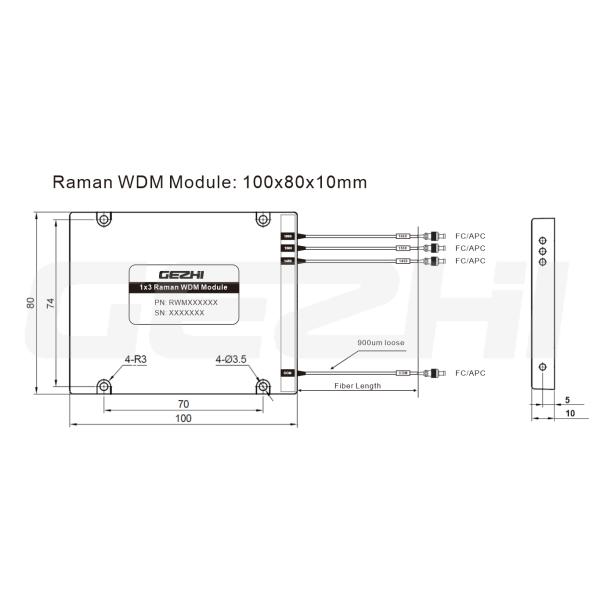

Drawing

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems 1450/1550/1650nm

Ordering Information

Type Package Spec Fiber Type Fiber Diameter Fiber Length Connector
RWM=Roman WDM Module

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

X=Others

S9=9/125

M5=50/125

M6=62.5/125

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

05=0.5m

10=1.0m

15=1.5m

X=Others

00=none

LP=LC/UPC

LA=LC/APC

SP=SC/UPC

SA=SC/APC

FP=FC/UPC

FA=FC/APC

X=Others

Packaging
Original Carton Package.
As customers' requirement.

Shipping
7-15 Working days after receive the payment.
Shipment: Air transportation ( DHL / UPS / TNT / Fedex / EMS/CHINA POST )
Shipping fee depends on the weight and size.
