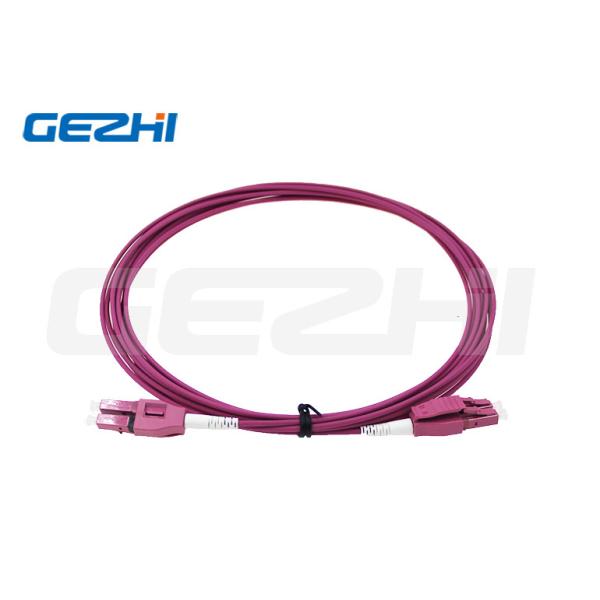

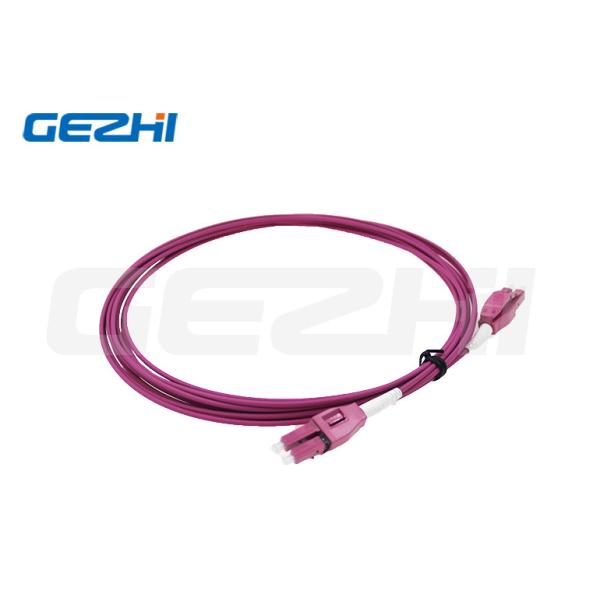

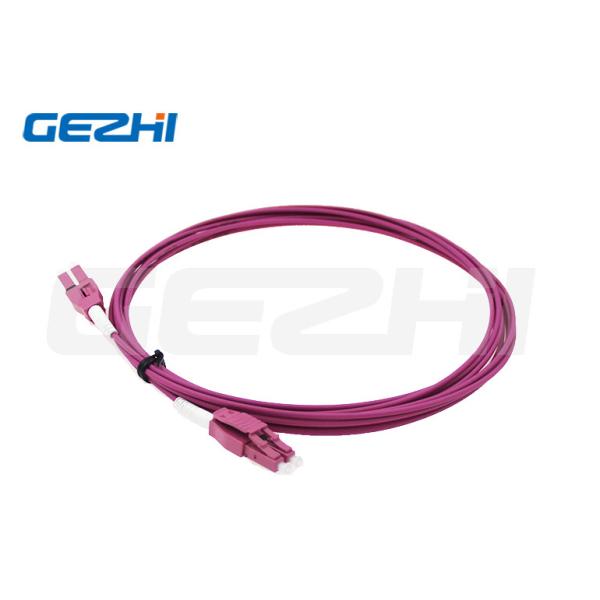

Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Duplex Fiber Optic Cable with Uniboot Polarity Interchange and LSZH Jacket in 5m Length for High Performance Connectivity
Specifications
Brand Name :
GEZHI or OEM
Model Number :
Uniboot Patch Cable
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Number of cores :
Twin cores
Insertion loss :
≤0.25dB
Fiber mode :
single-mode
Return loss :
≥55dB (UPC)
Cable diameter :
2.0mm
Operating temperature :
-40~85°C
Description

Product Introduction


A fiber optic connector is a device that makes a detachable (movable) connection between optical fibers and optical fibers, which closely connects the two end faces of optical fibers, so that the emitted optical energy can be coupled to the receiving optical fiber to the maximum extent.


Our fiber optic connectors comply with the Telecordia-GR-326-CORE specification, with a metal sleeve and a fastening method with a screw fastener for excellent insertion loss and return loss performance.
Optical fiber connectors are widely used in optical fiber sensing systems, optical fiber test equipment, optical fiber communication systems, local area ring networks and other fields.


Specifications

parameter LC Uniboot Polarity Interchangeable Fiber Optic Cable
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
Operating wavelength 1310nm, 1550nm 850nm, 1300nm
Concentricity ≤1um ≤4um


Application scenarios

Telecommunication networks
Fiber-to-the-home (FTTH)
Fiber-optic communication systems
Telecommunications networks and cable television
Activating device and fiber optic infector
Local Area Networks (LANs).
WAN
Optical Access Network (OAN).
Testing instruments
Fiber optic data transmission (FODT).
Active device terminals
Data centers
subway, ships, aircraft



Our Factory

1500square meter operating workshop,use Clean, No Dust,Tidy,Planned room



Our Products

Our main products include WDM series,Optical Switches,Patch Cable Serires,Optical Circulator/Isolator,Polarization Maintaining and High power components and Optical transceiver.



Our Certificate

We comply with ISO9001 standard and all our product comply with RoHS.
