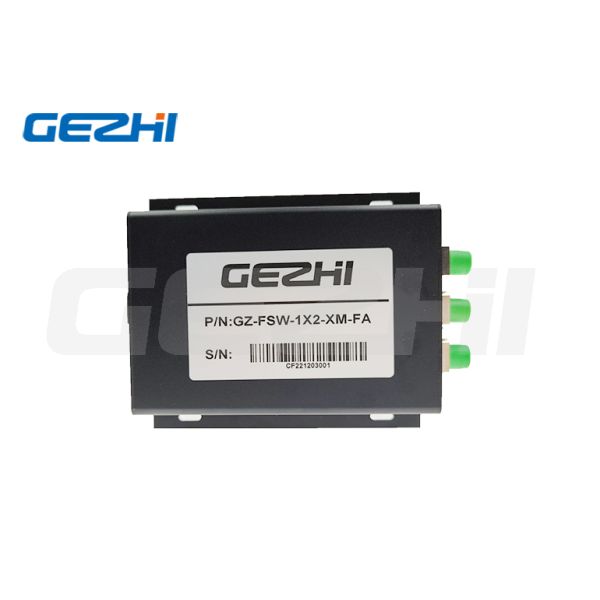

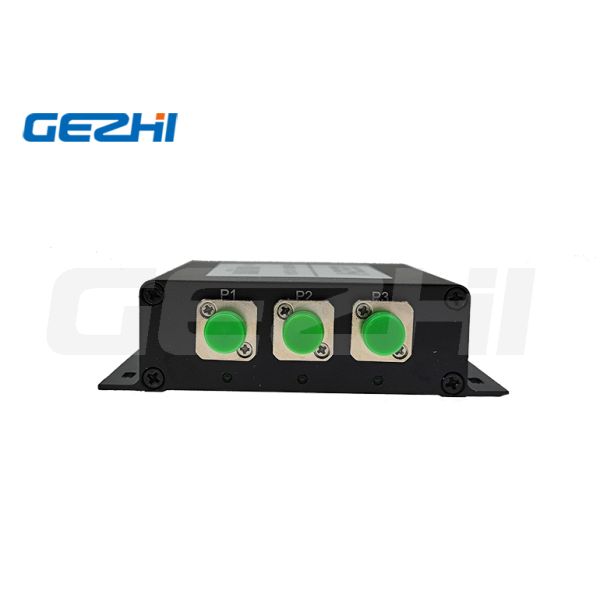

RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-FSW-1x2-XM-FA
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$69-US$150
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Product Name :
1x2 Mechanical Optical Switch Module
Wavelength :
850nm
Fiber Type :
Multimode
Connector :
FC/APC
Control Type :
Latching
Control Mode :
RS-232
Package :
Module
Description
RS-232 Control 1x2 Mechanical Optical Switch Module
850nm Latching Optic Switches for reliable fiber optic path control and monitoring
Product Overview
The Gezhi 1x2 mechanical optical switch module is a precision light path control device designed for multi-channel fiber optic switching applications. This module enables efficient routing in optical fiber transmission systems, supporting multi-channel monitoring, source/detector selection, and optical path protection. Ideal for testing systems, cable verification, and multi-point optical sensor monitoring.
Control & Operation
The module features dual control methods via front-panel buttons and RS-232 interface, with optical path selection available through host computer software for flexible system integration.
Applications
  • Wavelength routing systems
  • Reconfigurable add/drop multiplexers
  • Optical network monitoring and testing
Key Features
  • Broad wavelength range compatibility
  • Low insertion loss for minimal signal degradation
  • Epoxy-free optical path design
  • High stability and reliability
  • Dual control via buttons and RS-232 interface
RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks
Technical Specifications
Parameter Unit GZ-FSW-1x2
Wavelength Range nm 532~1064nm | 1260～1650
Operating Wavelength nm 532/650/780/850/980 nm | 1310/1490/1550/1625 nm
Insertion Loss dB Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 5V / 500mA
Control Mode / Button, RS232
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)104.0*(W)120.0*(H)28
Ordering Information
GZ-FSW-1x2-x-xx-x-x-xx
Mode Wavelength Control Model Fiber Type Connector
S=SM M=MM 85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others L=Latching N=Non-Latching 5=50/125 6=62.5/125 9=9/125 X=Others FP=FC/PC FA=FC/APC X:Others
