Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-FSW-1x2-XM-FA
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Product Name :
1x2 Mechanical Optical Switch Module
Wavelength :
850nm
Fiber Type :
Multimode
Connector :
FC/APC
Control Type :
Latching
Control Mode :
RS-232
Package :
Module
Description

RS-232 control 1x2 Mechanical Optical Switch Module 850nm Latching Optic Switches

Product Description

Gezhi 1x2 mechanical optical switch Module is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.

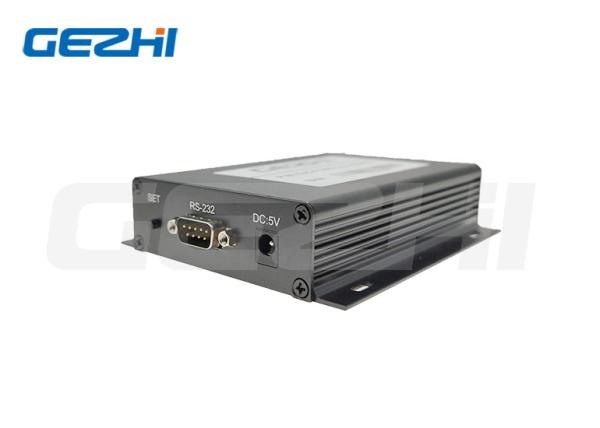

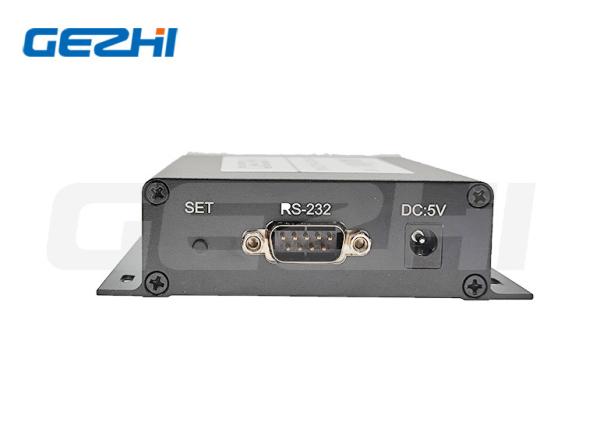

The module is controlled by buttons and RS-232 interface, and the module optical path can be selected by the software of host computer.

Applications

  • wavelength router
  • Reconfigurable add/drop multiplexers
  • Optical Network monitoring

Features

  • Wide Wavelength Range
  • Low Insertion Loss
  • Epoxy-free on Optical Path
  • High Stability, High Reliability
  • The optical path setting by the button and RS-232.

RS-232 Control 1x2 Mechanical Optical Switch Module 850nm Latching Optic Switches

RS-232 Control 1x2 Mechanical Optical Switch Module 850nm Latching Optic Switches

Specification

Parameters GZ-FSW-1x2
Wavelength Range nm 532~1064nm 1260～1650
Operating avelength nm 532/650/780/850/980 nm 1310/1490/1550/1625 nm
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 5V / 500mA
Control Mode / Button, RS232
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)104.0×(W)120.0×(H)28

Order Information

GZ-FSW-1x2-x-xx-x-x-xx

Mode Wavelength Control Model Fiber Type Connector

S=SM

M=MM

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

X=Others

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

FP=FC/PC

FA=FC/APC

X:Others
