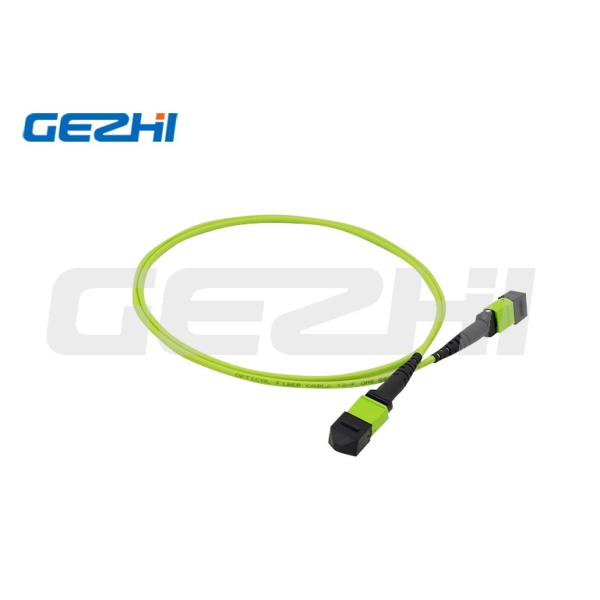

OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
Specifications
Brand Name :
GEZHI or OEM
Model Number :
OM5 MPO Fiber Optic Jumper
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$18-US$36
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Fiber count :
12 /24 /48/96/144 Cores
Connector Type :
Female or Male
Mode :
OM5 Multimode
Use :
Data Center
Cable Length :
Customized
Description
OM5 Multimode MPO Fiber Optic Jumper Patch Cord
Factory price OM5 MPO Fiber Optic Jumper Patch Cord Cable with Female or Male connectors designed specifically for Data Center applications.
Product Overview
GEZHI Photonics manufactures data center grade fiber optic MPO patch cords. The MPO connector uses a spring-loaded sliding mechanism that securely latches onto adapters, providing reliable connections for network cabling in enterprise data centers, backbone systems, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Each assembly undergoes 100% factory testing to meet IEC 61753-1 standards.
Features
Applications
  • Low Insertion Loss
  • Array trunk cables
  • Data Center Cabling
  • High-density fiber card edge access
  • Optical switching interframe connections
  • Data Center
  • Storage area networking
  • 40GbE & 100GbE protocol
  • Optical System Access network
Custom Fiber Count Options
8 Fibers - Used for 40G/100G QSFP+/QSFP28 direct connection
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
12-144 Fibers - Used for 10G/40G/100G high-density structural fiber cabling
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
Custom Polarity Configuration
Proper data transmission requires that a link's transmit signal (Tx) at one end matches the corresponding receiver (Rx) at the other end. Polarity defines the signal travel direction to ensure this correspondence is maintained. MPO connectors feature a key on the top side and a white dot indicating Position 1 location. Key orientation is critical for proper polarity.
Three MPO cable types are available:
  • Type A
  • Type B
  • Type C
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
MPO Cable Polarity Types
Custom Connector Options
Important: MPO interfaces on active equipment are male (with pins). To avoid transceiver damage, MPO patch cords should be female (without pins).
Male (with pins) - Mated to female side for adapters, cassettes or panels connection
OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
Female (without pins) - Directly connects to transceivers or other male connectors
Technical Specifications
Performance Level Standard Elite Standard Elite
IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP
MM OM5		 8F/APC 8F/APC ≤0.50 ≥20 ≤0.35 ≥20
12F/APC 12F/APC ≤0.50 ≥20 ≤0.35 ≥20
24F/APC 24F/APC ≤0.50 ≥20 ≤0.35 ≥20
8F/PC 8F/PC ≤0.50 ≥20 ≤0.35 ≥20
12F/PC 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
24F/PC 24F/PC ≤0.50 ≥20 ≤0.35 ≥20
