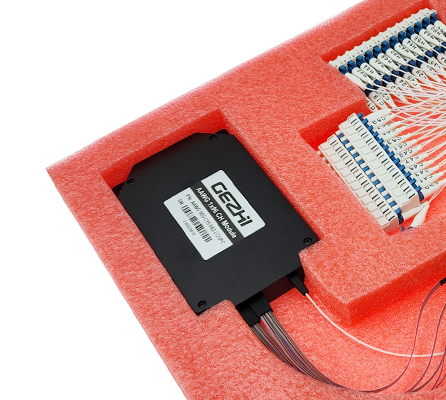

1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
Specifications
Brand Name :
GEZHI or OEM
Model Number :
1x96 Channel AWG DWDM mux Demux Module
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Use :
Long haul DWDM networks
Channel Spacing :
50GHz
Channel :
1x96
Insertion loss :
<3.5dB
Type :
FTTx Solutions
Technology :
Guassian
Warranty Time :
1 years
Description

Product Overview

50GHz 96CH Athermal AWG DWDM Mux Demux
The 96CH Mux Demux is a high density, low loss and standalone passive optical module that provides excellent solution for infrastructure savings by aggregating up to 96CH DWDM channels at a single site. All 96CH channels are spread over the C-band per ITU-T 100GHz spacing between channels using high quality AAWG technology. It's perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks. GEZHI Photonics Supply various type package like Metal box, Rackmount or customized Package.

FEATURES AT A GLANCE

High density Channel
Customized Package type
Single Fiber or Dual fiber available
High Stability & Reliablity
Low Insertion Loss

1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box 1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box 1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box

Technical Index

Parameter Unit AAWG Module
Channel CH 32 40 48 80 96 32 40 48 80 96
Channel Spacing GHz 100 100 100 50 50 100 100 100 50 50
Chip Type -- Gaussian Type Flat Top Type
1dB Channel Bandwidth nm >0.2 >0.2 >0.2 >0.18 >0.18 >0.38 >0.38 >0.38 >0.18 >0.18
3dB Channel Bandwidth nm >0.4 >0.4 >0.4 >0.28 >0.28 >0.58 >0.58 >0.58 >0.28 >0.28
Insertion Loss dB <4.5 <4.5 <4.5 <6.5 <6.5 <5.5 <5.5 <5.5 <7.0 <7.0
Adjacent Crosstalk dB >25 >25 >25 >22 >22 >25 >25 >25 >22 >22
Non-adjacent Crosstalk dB >30 >30 >30 >27 >27 >30 >30 >30 >27 >27
Total Crosstalk dB >22 >22 >22 >20 >20 >22 >22 >22 >20 >20
Return Loss dB >40
Ripple dB <0.7
PDL dB <0.5
PMD ps <0.5
Chromatic Dispersion Ps/nm ±20
Operating Temperature ℃ -5~+65
Storage Temperature ℃ -40~+85

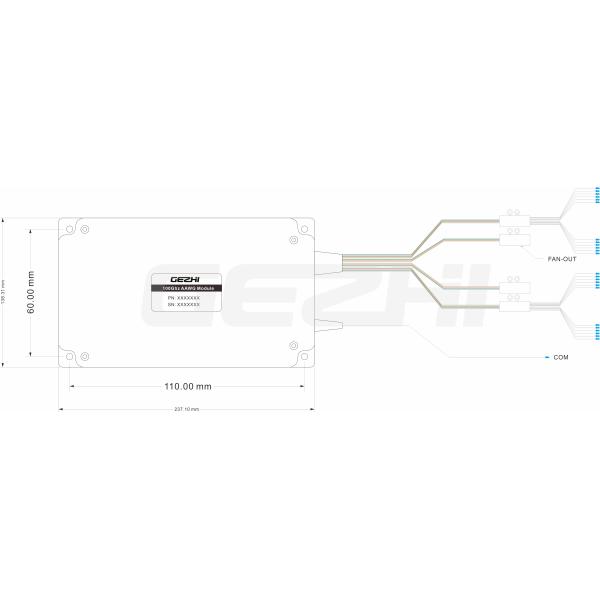

Metal Box Package Size
1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
Chip type of Athermal AWG Module
1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 1 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
