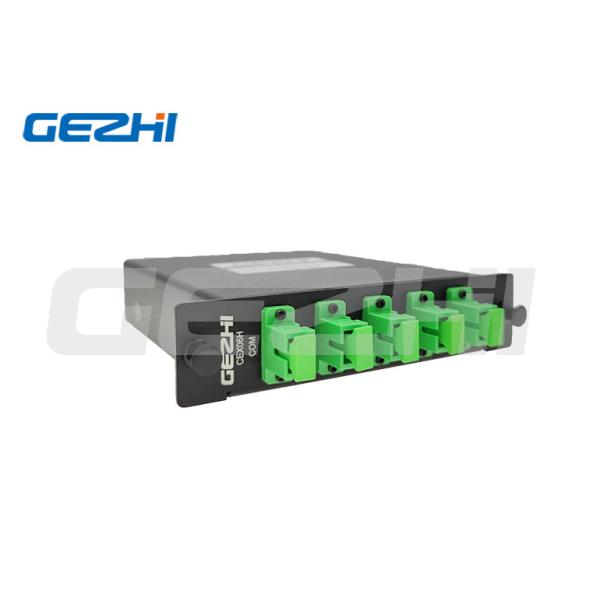

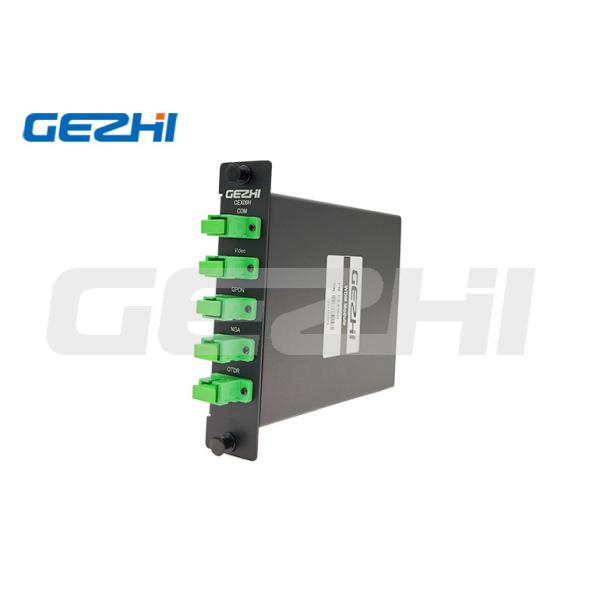

Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Specifications
Brand Name :
GEZHI or OEM
Model Number :
Filter WDM GPON
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$22-US$56
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Warranty Time :
3 years
Use :
Data Center, NGPON
Wavelength :
GPON, XGS-PON,Video, OTDR
Center Wavelength :
1270/1577; 1310/1490, 1550; 1625
Fiber Connector :
LC/UPC, SC/APC etc.
Fiber Type :
SMF-28e
Description
Low Insertion Loss Filter WDM Module for GPON/XGS-PON Networks
Product Overview
Our CEX WDM series is engineered for next-generation passive optical networks (NGPON), designed to coexist with GPON on the same optical distribution network. These advanced WDM devices integrate GPON, XGS-PON, RF video, and OTDR combiners to support NGPON1 and NGPON2 TWDM wavelengths, maximizing network density and enhancing transmission speeds.
Key Features
  • Low insertion loss for optimal signal integrity
  • Low polarization dependent loss (PDL)
  • High channel isolation for minimal interference
  • Excellent environmental reliability and stability
Applications
WDM systems and CATV networks
Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Technical Specifications
Parameters Unit I-FWDM Device Specifications
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50, 1490±10, 1550±10
1610±10, 1625±25, 1650±20		 nm 1. T1550 R1310/1490
2. T1490 R1310/1550
3. T1310 R1490/1550
4. T1550/1610 R1310/1490
5. T1550/1625 R1310/1490
6. T1625 R1310/1490/1550
7. T1650 R1310/1490/1550
Insertion Loss dB Transmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel Isolation dB ≥ 30
Reflection Channel Isolation dB ≥ 17
PDL dB ≤ 0.1
Wavelength Thermal Stability nm/℃ ≤ 0.003
Insertion Loss Thermal Stability dB/℃ ≤ 0.005
Return Loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature ℃ -10 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm Φ5.5*34 | Φ4.2*25 | 90*20*10
Note: 1. Customization is available. 2. Specified without connector, add 0.2dB loss per connector.
Frequently Asked Questions
Q: Can I place a sample order? What is your minimum order quantity?
A: Sample orders are welcome for quality testing. We have no minimum order quantity - even single piece samples are available. Mixed samples are also acceptable.
Q: What is your typical lead time?
A: Standard lead time is approximately 1 week. For large quantities and specialized products, please consult our sales team. We maintain stock for many products and can ship within 1-3 days after payment confirmation.
Q: What payment methods do you accept?
A: We accept T/T, PayPal, Western Union, cash payments, and Alipay.
Q: What is your warranty period?
A: We provide a 3-year warranty on all products.
Q: Can I use my own logo, labeling, and packaging?
A: Yes, we offer comprehensive OEM services including custom product labeling, logos, part numbers, serial numbers, and packaging according to your specifications.
