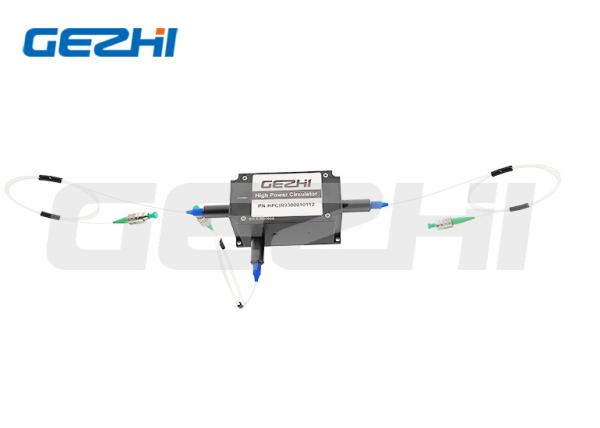

980-1080nm High Power Optical Circulator 100W For EDFA / Raman Amplifier
Product Overview

Low Insertion Loss 980-1080nm High Power Optical Circulator up to 100W for EDFA & Raman Amplifier

The 3 port 980-1080nm High Power Polarization Insensitive Optical Circulator is a fiber optic component built with SM fiber. It allows light to be transmitted in only one direction while blocking the opposite transmission, with light path from port 1 to port 2, and port 2 to port 3. It can withstand handling power up to 100W.

980-1080nm High Power Optical Circulator with 100W Power Handling and Low Insertion Loss for EDFA & Raman Amplifier 980-1080nm High Power Optical Circulator with 100W Power Handling and Low Insertion Loss for EDFA & Raman Amplifier 980-1080nm High Power Optical Circulator with 100W Power Handling and Low Insertion Loss for EDFA & Raman Amplifier
Key Features
  • Low Insertion Loss
  • High Isolation
  • Optical Path Epoxy-free
  • High Power Handling
Applications
  • EDFA & Raman Amplifier
  • Fiber Sensor
  • Dispersion Compensation
  • Test & Measurement
  • WDM Systems
Technical Specifications
Parameters Unit Value
Center Wavelength nm 1064, 1030, 980
Operating Wavelength Range nm ±5
Typ. Peak Isolation dB 25
Min. Isolation at 23℃ dB 22
Typ. Insertion Loss at 23℃ dB 1.0
Max. Insertion Loss at 23℃ dB 1.3
Min. Extinction Ratio at 23℃ (PM Fiber Type) dB 20
Max. Polarization Dependent Loss at 23℃ (SM Fiber Type) dB 0.15
Min. Return Loss at 23℃ (Input/Output) dB 45
Min. Cross Talk dB 45
Max. Average Optical Power (Including Port1 & Port2) W 50, 100 or Specified
Max. Peak Power for ns Pulse kW 10 or Specified
Max. Tensile Load N 5
Package Dimension mm 82x38x35
Operating Temperature ℃ +10~+50
Storage Temperature ℃ 0~+60
With connectors, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.
Package Dimensions
980-1080nm High Power Optical Circulator with 100W Power Handling and Low Insertion Loss for EDFA & Raman Amplifier
Ordering Information
HPMCIR-1111-23-444-56-7-888-99AA (PM Fiber Type) / HPICIR-1111-23-444-56-7-888-99AA (SM Fiber Type)
1111 - Wavelength: 1064=1064nm, 1030=1030nm, 980=980nm, SSSS=Specified
2 - Port Type: 3=3-Port
3 - Working Axis: B=Both axis working, F=Fast axis blocked, N=Non-PM
444 - Fiber Type: 018=PLMA-GDF-10/125-M, 021=PLMA-GDF-20/130, SSS=Specified
5 - Package Dimensions: 0=82x38x35mm, S=Specified
6 - Pigtail Type: 0=bare fiber, 1=900μm loose tube
7 - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specified
888 - Connector Type: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
99 - Average Power: 50=50W, 100=100W, SS=Specified
AA - Peak Power: 00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, 20=20kW
