Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm
Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm
Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm
Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm
Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm
Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm
Specifications
Brand Name :
REINFORCE
Model Number :
REINFORCE-52
Certification :
ISO 9001
Place of Origin :
China
MOQ :
2000 square meters
Price :
USD 1.7-3/ square meter
Payment Terms :
T/T
Supply Ability :
2000 square/day
Delivery Time :
14-20days
Packaging Details :
steel strip six rolls each bundle
Raw Material: :
Galvanized Wire
Key Words: :
Offshore Pipeline Counterweight Welded Wire Mesh
Wire Diameter: :
2.0 Mm, 2.2 Mm, 2.4 Mm, 2.7 Mm Etc.
Roll Diameter: :
700 Mm- 1500 Mm
Length Per Roll: :
140 M Or 280 M
Mesh Width: :
190.5 mm
Application: :
Offshore Pipelines Counterweight
Packaging Details: :
In Bundle/pallet
Description

Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm


Offshore Pipeline Counterweight Welded Wire Mesh Description:

Pipeline reinforced mesh is made of line wires and cross wires.
Line Wire: They are deeply crimped and then spaced at equal distances to be welded into a wavy structure. Pipeline reinforced mesh is available in various types, with 6/8/10 cross wires per pipeline reinforced mesh. For a pipeline reinforced mesh with 6 cross wires, the middle 4 cross wires are equally spaced and the two cross wires at the edge are farther away from the adjacent cross wires. The wavy structure makes it easy for the pipeline.

Offshore Pipeline Counterweight Welded Wire Mesh Specification:


Product name pipeline reinforced mesh
Material high quality hot dipped galvanized wire
Mesh type welded type
Wire diameter 1.5-3.0mm
Mesh size 25.4*67mm
Hardness range 485N/mm2~650N/mm2
Sample Free sample can supply to test and confirm our high quality
Roll width 190.5mm or special custom
Roll length 140m, 280m or special custom
Package By roll



Offshore Pipeline Counterweight Welded Wire Mesh Applications


Oil/Gas Pipelines: Subsea pipelines, swamp/lake crossings.

Hydraulic Engineering: Underwater pipeline counterweights and dam protection.

Industrial Facilities: Corrosion protection for sewage treatment plants and water pipelines.




Offshore Pipeline Counterweight Welded Wire Mesh Features

√ High tensile strength: Pipeline reinforced mesh is made of high-strength steel wires that can withstand the stress and pressure of
pipeline construction.
√ Corrosion resistance: The CWC mesh is coated with a layer of zinc or other corrosion-resistant material to prevent rust and
corrosion.
√ Easy to install: The CWC mesh can be easily installed around the pipeline, providing a quick and efficient solution for strengthening
the pipeline.
√ Cost-effective: Using pipeline reinforced mesh is a cost-effective alternative to traditional methods of pipeline reinforcement, such
as concrete or steel reinforcement.
√ Durability: Pipeline reinforced mesh is designed to withstand harsh environmental conditions, including extreme temperatures and
weather conditions.
√ Good appearance: The appearance of pipeline reinforced mesh is neat, regular, and bright. The mesh is tightly bound and firm.
The solder joint is firm and convenient for transportation and stacking.

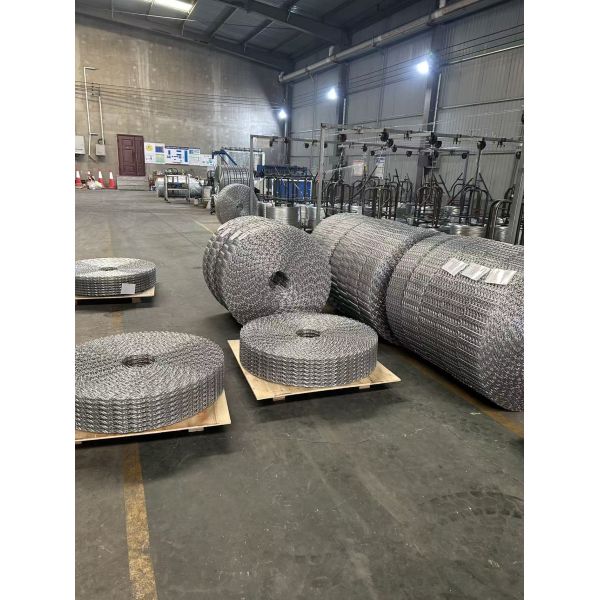

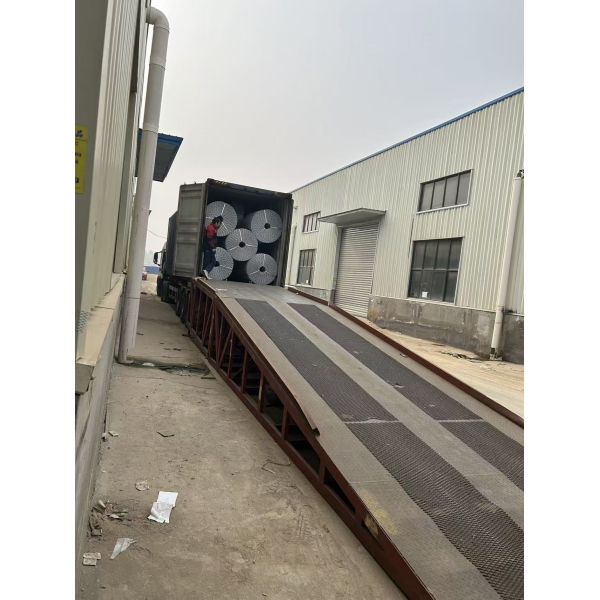

Offshore Pipeline Counterweight Welded Wire Mesh Packing And Shipping



Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm

Anti Rust Galvanized Offshore Pipeline Counterweight Welded Wire Mesh 2.6MM Mesh Width 190.5 mm
