Replacement Wave Shaker Screens 600 Series Shakers
Replacement Wave Shaker Screens 600 Series Shakers
Replacement Wave Shaker Screens 600 Series Shakers
Replacement Wave Shaker Screens 600 Series Shakers
Specifications
Brand Name :
REINFORCE
Model Number :
RE-SCREEN 8
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pieces
Price :
USD30/ piece
Payment Terms :
T/T
Supply Ability :
1000 pieces per month
Delivery Time :
14-20 work days
Packaging Details :
carton,then in wooden box
Product Name :
Replacement Wave Screens 600 Series Shakers
Key words :
Screening, filtration
Body Material :
Stainless steel plate
Screen layers :
two or three
Color :
green
Construction Type :
Wave Type
Package :
2 pcs per carton, packed in wooden case
Series :
DX, DF, HP optional.
Description

Replacement Wave Screens 600 Series Shakers

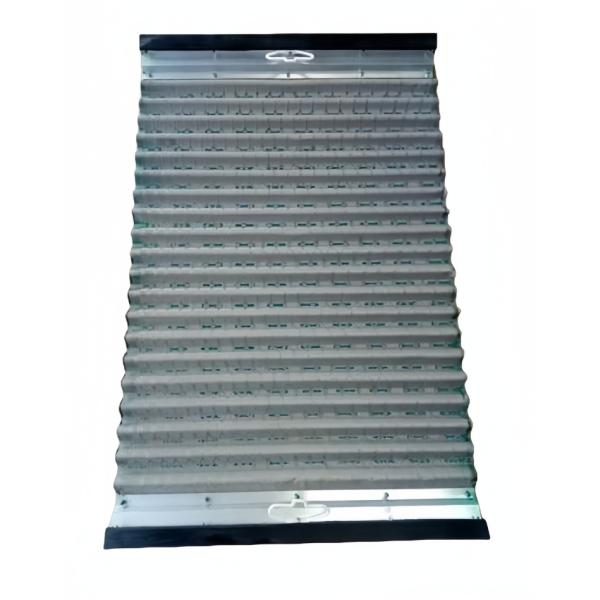

3D Wave Shale Shaker Screen Description:


Wave 600 shaker screen with dimension of 626 × 710 mm which is smaller than other screen panels. There are 6 or 8 panels needed for each 600 shaker. Innovative actuated screen compression system drives the center of the screen panel downward and firmly sealing the screen panel to the screen frame. The mud recovery is greatly improved.


3D Wave Shale Shaker Screen Specifications:


Technical Parameters of 3D Shaker Screen
Item Mesh Dimension(L x W) Approx Weight Screen Layer Screen Material Frame Material
RFSM-1 API 20-400 1050X695mm 6.6kg 2 or 3 SS 304/316 carbon steel
RFSM-2 API 20-400 1053x697mm 5.6kg 2 or 3 SS 304/316 carbon steel
RFSM-3 API 20-400 710x626mm 4.8kg 2 or 3 SS 304/316 carbon steel
RFSM-4 API 20-400 567x1070mm 5.2kg 2 or 3 SS 304/316 carbon steel
Note:Other specifications also be customized

3D Wave Shale Shaker Screen Competitive Advantage:


1.Light-weight screen panels for fast, user-friendly screen changes.

2.Easy screen inspection, removal, and installation.

3.Maximize the solids removal capabilities.

4.Increase shaker capacity and reduce mud loss.

5.Adequate inventory in the shortest time to meet customers' demand.

6.Warranty Period: 1 year.

7.Working Life: 400-450 hours.


3D Wave Shale Shaker Screen Application:


3D shaker screen is used as replacement screen for various shakers. It is used in shale shakers to filter drilling fluids, mud, oil and other materials in the oil extraction, oil industry, drilling operations, solid control system.


Our Company Information:


Hebei Reinforce Pipeline Mesh Co., Ltd is an enterprise focusing on deep-sea energy pipeline protection. It is located at No.6, Ruilian Industrial Zone B, Shuguang East Street, Xicheng Industrial Zone, Raoyang County, Hengshui City, Hebei Province. Our company takes the steel wire mesh for concrete weight coating of submarine oil and natural gas pipelines independently developed and produced as its core product. We also produce safety rope nets around platforms, steel gratings, and vibrating screens.
