Specifications
Brand Name :
REINFORCE
Model Number :
REINFORCE-30
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000 square meter
Price :
USD 1.7-3 /square meter
Payment Terms :
T/T
Supply Ability :
2000 Square meters per week
Delivery Time :
14-20 works day
Packaging Details :
In Bundle/pallet
Product Name :
Hot Dipped Galvanized Subsea Force Reingrid Anti Corrosion Subsea Pipeline Reinforced Mesh
Key Words :
Concrete weight coating mesh for gas and oil
Material :
Cold or Hot dipped galvanized
Wire Diameter :
2.0 mm/2.2 mm/2.4 mm/2.7 mm And so on
Hardness Range :
485 N/Mm2-650 N/Mm2
Packing :
In rolls or as per customer's request
Usage :
Reinforcement, Protection, Filtration
Tensile Strength :
500-1000N/mm2
Exposed Wire Edge :
≤ 2.5 mm
Standard width :
7.5 inch (190.5 mm)
Roll length :
140 m, 165 m, 280 m, customizable
Description

Hot Dipped Galvanized Subsea Force Reingrid Anti Corrosion Subsea Pipeline Reinforced Mesh


Welded Galvanized Wire Pipeline Reinforced Mesh Description:

Welded Galvanized Wire Pipeline Reinforced Mesh is choose high quality hot dipped galvanized wire as material wire. The surface most are choose hot dipped, also special product need cold or electric. Then through our machine professional welded and make in export standard hole size, roll width and length. With strong anti-corrosion and anti-rust properties, so it is durable and has a long service life. It is widely used as reinforcement on concrete weight coating pipelines for oil and gas.



Welded Galvanized Wire Pipeline Reinforced Mesh Specification:

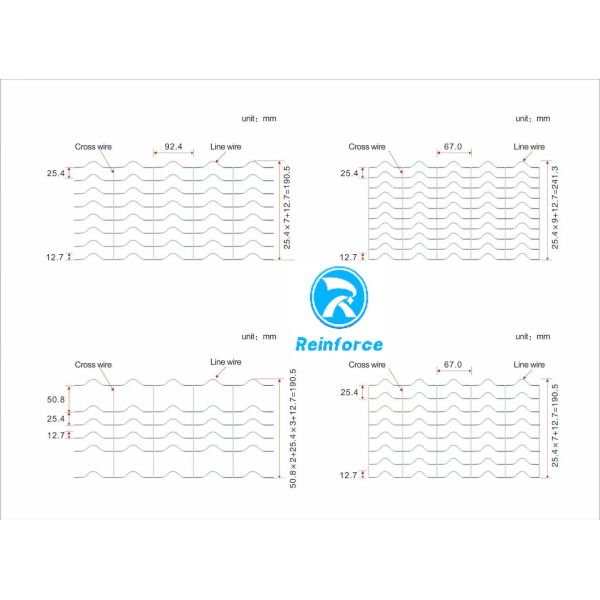

Pipeline Reinforced Mesh Specifications
Item

Line wire

quantity

Line wire

wire

diameter

cross wire

wire

diameter

Middle line

wire pitch

Both sides

line wire

pitch

Cross wire

pitch

 Mesh width
RFSM-N 6

2.3mm

2.5mm

2.6mm

2.85mm

2mm

2.05mm

 25.4mm 50.8mm 67mm 190.5mm
RFSM-T 8 25.4mm 25.4mm 67mm 190.5mm
RFSM-L 8 25.4mm 25.4mm 92.4mm 190.5mm
RFSM-W 10 25.4mm 25.4mm 67mm 241.3mm


Normal Export Specifications Kinds:


Wire Diameter

Mesh

Width

Length

2.0mm/2.0mm

25.4mmx67mm

190.5mm

140m,280m

2.0mm/2.2mm

25.4mmx67mm

190.5mm

140m,280m

2.0mm/2.4mm

25.4mmx67mm

190.5mm

140m,280m

2.0mm/2.7mm

25.4mmx67mm

190.5mm

140m,280m

Products can be customized according to customers’ requirements.


Four Types for choose:


Hot Dipped Galvanized Subsea Force Reingrid Anti Corrosion Subsea Pipeline Reinforced Mesh


Welded Galvanized Wire Pipeline Reinforced Mesh Advantage:

1. High quality material wire

2.Standard wire diameter and hole size

3. Enough roll width and roll length

4. High tensile strength

5. Strong anti-corrosion, anti-rust

6. Strong welded point

7. High degree of flexibility

8. Long service life

9. Easy to install

10. Cost savings

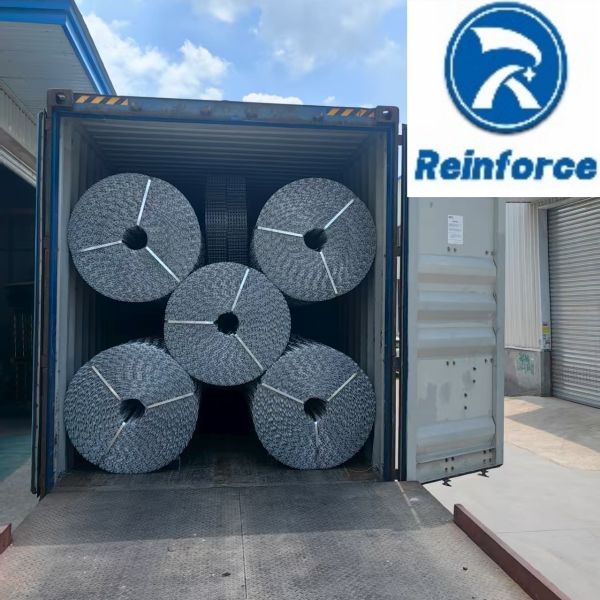

Welded Galvanized Wire Pipeline Reinforced Mesh Packaging Options:


1. 4 rolls per bundle

2. Strong pallet packaging

3. Sturdy wooden boxes

4. Bulk container loading

5. Custom packaging available


Welded Galvanized Wire Pipeline Reinforced Mesh Applications:


• Offshore oil and gas pipelines

• Subsea and underwater pipelines

• Underground water supply / drainage pipelines

• Concrete weight coating reinforcement

• Coastal and marine engineering pipeline protection
