Specifications
Model Number :
REINFORCE-52
Key Words: :
Pipeline Reinforced Mesh
Payment Terms :
T/T
Length per roll :
140m, 280m or special custom
MOQ :
2000 square meters
Delivery Time :
14-20days
Zinc Coating: :
40-60g/m2
Surface treatment :
galvanized
Certification :
ISO 9001
Wire Diameter: :
2.0 Mm, 2.2 Mm, 2.4 Mm, 2.7 Mm Etc.
Price :
USD 1.7-3/ square meter
Middle line wire pitch :
25.4 mm
Supply Ability :
2000 square/day
Color :
Sliver
Brand Name :
REINFORCE
product :
2.0MM Cross Wire Pipeline Reinforced Mesh
Place of Origin :
China
Hardness Range :
485N/mm2~650N/mm2
Packaging Details :
steel strip six rolls each bundle
Hole size :
25.4mm x 67mm or special custom
Description

2.0MM Cross Wire Pipeline Reinforced Mesh

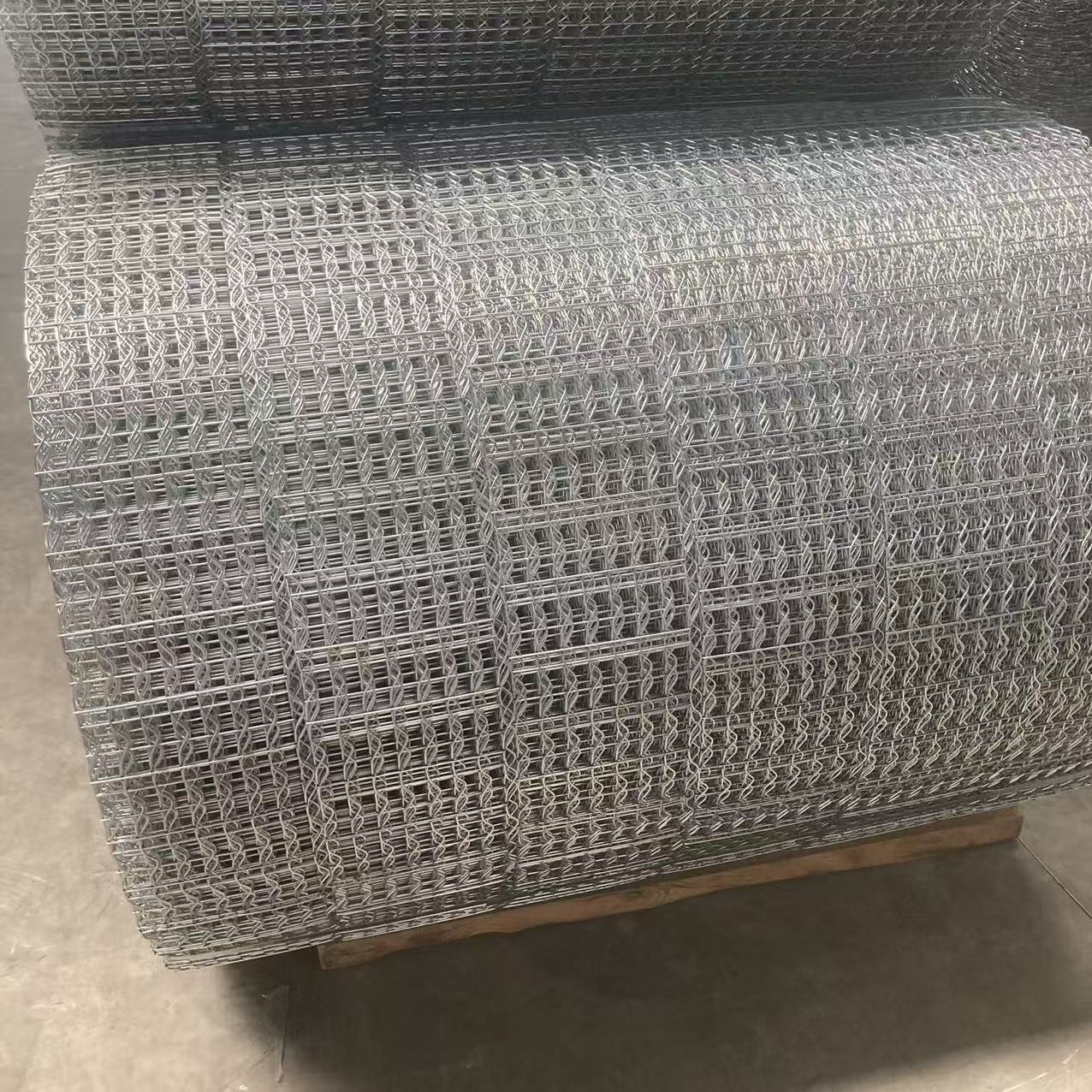

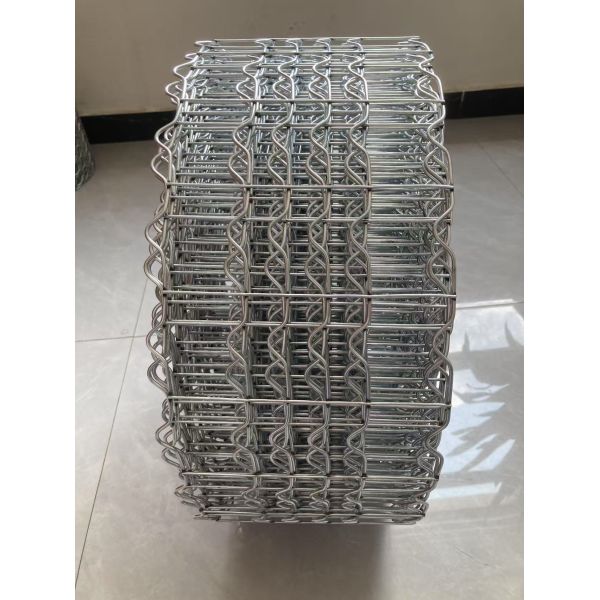

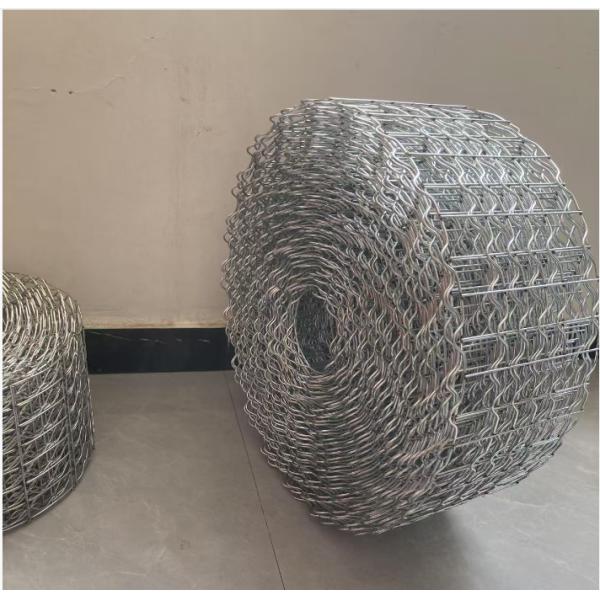

Pipeline Reinforced Mesh


Normally used for the reinforcement on concrete weight coating of offshore oil and gas pipeline, popular in the world marine construction industry. It is applicable for the compression and impingement coating process. The line wires are deeply crimped to facilitate the concrete applications.


Pipeline Reinforced Mesh Normal Export Specifications:


Product name
Pipeline Reinforced Mesh
Material
hot dipped galvanized wire
Mesh Type
Welded type
Wire diameter
1.6mm/1.8mm/2.0mm/2.2mm/2.4mm/2.7mm/and so on
Mesh hole size
25.4mm×67mm
Hardness Range
485N/mm2~650N/mm2
Width dimensions
190.5mm
Length dimensions
140m/280m
Exposed Wire Edge
≤2.5mm
Roll diameter
700mm-1100mm
Product Features :

1. High strength and firm structure.


2. Line wires deeply crimped.

3. Anti harsh environment.

4. Corrosion and rust resistant.

5. Durable and long service life.


Pipeline Reinforced Mesh Package:


usual packing tape to combine 6 small rolls into one large roll,which saves container space.
