Specifications
MOQ :
1000 square meters
Delivery Time :
14-20 working days
Middle line wire pitch :
25.4 mm
Certification :
ISO9001
Life span :
Use long life
Model Number :
REINFORCE
Cross wire pitch :
67 mm or 92.4 mm
Payment Terms :
T/T
Key words :
galvanized welded pipeline steel mesh
Line wire quantity :
6, 8 or 10 lines
Price :
USD 1.7-3 /square meter
Material :
Q235 low carbon steel wire
Supply Ability :
2000 Square meters per week
Product Name :
Galvanized Welded Pipeline Steel Mesh In Rolls For Subsea Oil And Gas Pipeline CWC
Brand Name :
REINFORCE
Both sides line wire pitch :
25.4 mm or 50.8 mm
Packaging Details :
steel strip six rolls each bundle
Sample :
Can provide free sample to test the quality
Wire diameter :
2.0mm, 2.2mm, 2.4mm, 2.7mm
Surface treatment :
hot dipped galvanized
Place of Origin :
China
Zinc coating :
up to50-60 g/m²
Description

Welded Low Carbon Steel Wire Pipeline Mesh Reinforcement Underground Oil Transport Protective Jacket


Pipeline Reinforced Mesh


Pipeline Reinforced Mesh is one kind of our Welded mesh product.
It is also known as pipeline coating mesh which is widely used as reinforcement on concrete weight coating
pipelines for oil and gas.
It is designed to provide negative buoyancy and mechanical protection for pipelines in subsea and wet environments.


Pipeline Reinforced Mesh Normal Export Specifications:


Product name
Oil And Gas Pipeline Reinforcement Wire Mesh
Width
190.5mm
Mesh Hole Size
25.4/50.8mm x 67mm
Length per roll
140m, 280m
Hardness
485-650N/mm2
Line Wire Config
6,8,10 line wire mesh
Zinc Coating
50-60/m²
Sample
Free sample can available
Packing
6 rolls per bundle mesh, steel strip packed mesh
Wire Dia.
Mesh
Width
Length
2.0mm
25.4mm x 67mm
190.5mm
140m, 280m
2.2mm
25.4mm x 67mm
190.5mm
140m, 280m
2.4mm
25.4mm x 67mm
190.5mm
140m, 280m
2.6mm
25.4mm x 67mm
190.5mm
140m, 280m

Pipeline Reinforced Mesh have export four types can choose:

We have total 4 types: RFSM-L, RFSM-N, RFSM-T, RFSM-W

(1) RFSM-L

It is a low carbon steel wire for the reinforcement of concrete weight coated pipelines. The mesh includes 6 line wires that aredeeply crimped between the cross wires. The 2-inch mesh with both sides between the line wires is intended for coating with an overlap of 1 inch.

(2) RFSM-N

It is a spot welded mesh made of galvanized low carbon steel wire for the reinforcement of concrete weight coated pipelines. The mesh includes 8 line wires that are deeply crimped between the cross wires.

(3) RFSM-T

It is a spot welded mesh made of galvanized low carbon steel wire for the reinforcement of concrete weight coated pipelines. The meshis 92.4 mm instead of 67 mm between the cross wires.

(4) RFSM-W

It is a spot welded mesh made of galvanized low carbon steel wire for the reinforcement of concrete weight coated pipelines. The mesh includes 10 line wires that are deeply crimped between the cross wires.


Pipeline Reinforced Mesh Features:

• High tensile strength, firm welding, not easy to break or deform

• Deep crimped design for superior concrete adhesion

• Good flexibility, easy to wrap around pipes during construction

• Hot-dip galvanized surface for strong corrosion resistance

• Stable performance under harsh marine and underground environments

• Uniform mesh opening, consistent quality, easy to install

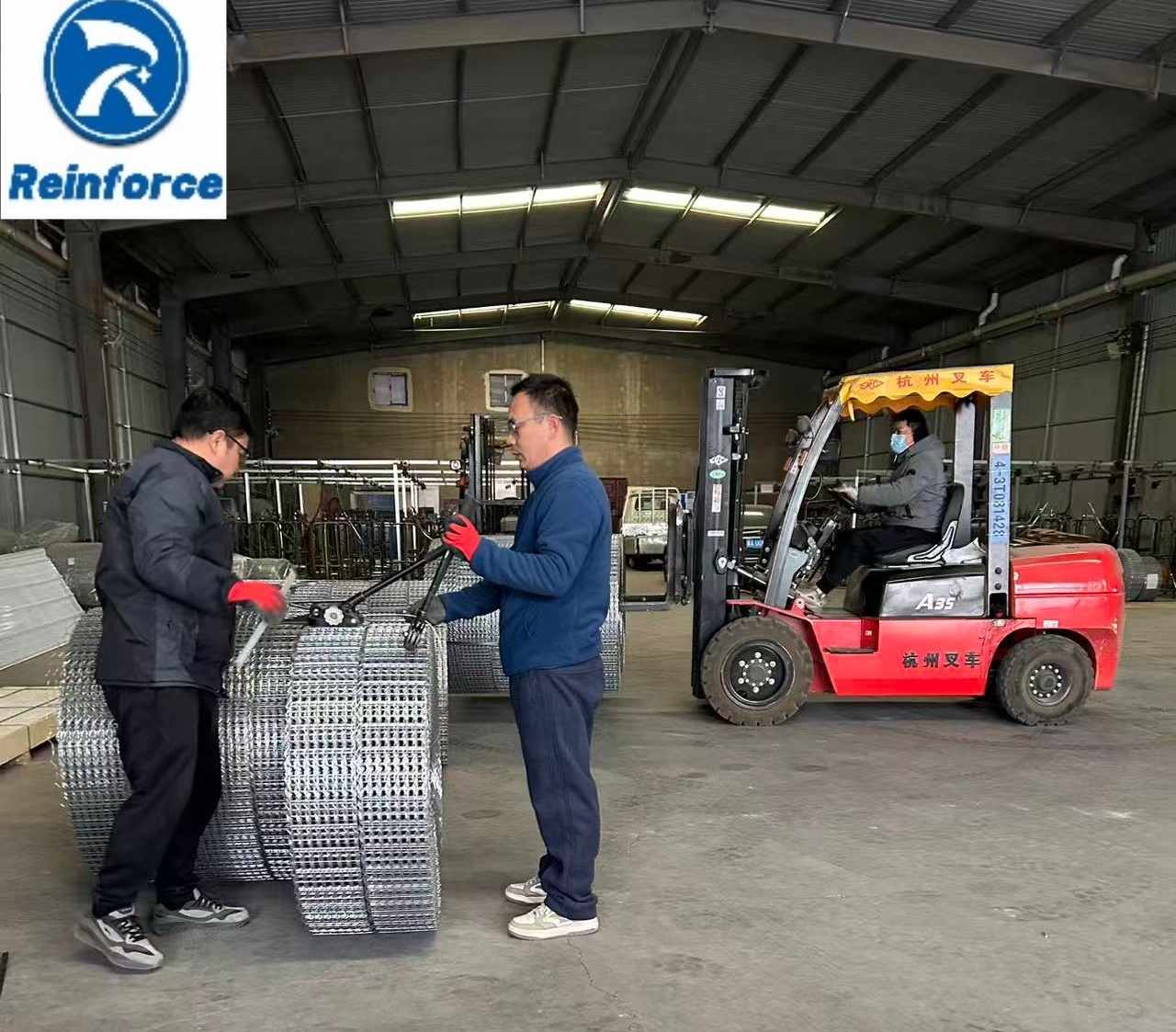

Pipeline Reinforced Mesh Package:


usual packing tape to combine 6 small rolls into one large roll,which saves container space.


Pipeline Reinforced Mesh Applications:


Oil/Gas Pipelines: Subsea pipelines, swamp/lake crossings.

Hydraulic Engineering: Underwater pipeline counterweights and dam protection.

Industrial Facilities: Corrosion protection for sewage treatment plants and water pipelines.


Our Company Profile:


Hebei Reinforce Pipeline Mesh Co., Ltd is an enterprise focusing on deep-sea energy pipeline protection. It is located at No.6, Ruilian Industrial Zone B, Shuguang East Street, Xicheng Industrial Zone, Raoyang County, Hengshui City, Hebei Province. Our company takes the steel wire mesh for concrete weight coating of submarine oil and natural gas pipelines independently developed and produced as its core product. We also produce safety rope nets around platforms, steel gratings, and vibrating screens.
