2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
Specifications
MOQ :
2000 square meters
Delivery Time :
14-20days
Middle line wire pitch :
25.4 mm
Certification :
ISO 9001
Model Number :
REINFORCE-52
Mesh Width: :
190.5 mm
Payment Terms :
T/T
Key Words: :
Pipeline Reinforced Mesh
Zinc Coating: :
40-60g/m2
Price :
USD 1.7-3/ square meter
Raw Material: :
Galvanized Wire
Supply Ability :
2000 square/day
product :
Wire Diameter 2.4mm Pipeline Reinforced Mesh For Subsea Gas
Brand Name :
REINFORCE
Line wire quantity :
6lines, 8lines or 10lines
Wire Diameter: :
2.0 Mm, 2.2 Mm, 2.4 Mm, 2.7 Mm Etc.
Place of Origin :
China
Sample :
Free sample can supply to test and confirm our high quality
Both Sides Line Wire Pitch: :
25.4 Mm Or 50.8 Mm
Packaging Details :
steel strip six rolls each bundle
Description
Wire Diameter 2.4mm Pipeline Reinforced Mesh For Subsea Gas
Product Overview

CWC Pipeline Reinforced Mesh, also known as concrete weight coating mesh, is manufactured from low carbon steel with galvanized coating. The mesh features deeply crimped line wires welded to form a wave structure, facilitating concrete coating and submersion in water or earth. This design provides excellent corrosion and rust resistance, protecting concrete weight coated pipelines during installation and throughout their service life.

Technical Specifications
Product Name 2.4MM Welded Galvanized Wire Pipeline Reinforced Mesh
Material Cold or Hot Dipped Galvanized
Middle Line Wire Pitch 25.4mm
Wire Diameter 1.66mm - 2.85mm
Hole Size 25.4mm x 67mm
Cross Wire Pitch 67mm or 92.4mm
Width per Roll 190.5mm or Custom
Length per Roll 140mm, 280mm or Custom
Roll Diameter 700mm - 1000mm
Surface Treatment Hot Dipped Galvanized
Applications
  • Subsea Gas & Oil Pipeline: Provides reinforcement for subsea oil and gas pipelines, enhancing strength and durability.
  • Everglades Gas Pipeline: Protects pipelines from external factors including erosion, corrosion, and wildlife damage.
  • River Bottom Gas & Oil Pipeline: Offers additional support and reinforcement to distribute pipeline weight evenly across river or stream beds, reducing environmental impact.
Packaging

Standard packaging includes tape to combine 6 small rolls into one large roll, optimizing container space and transportation efficiency.

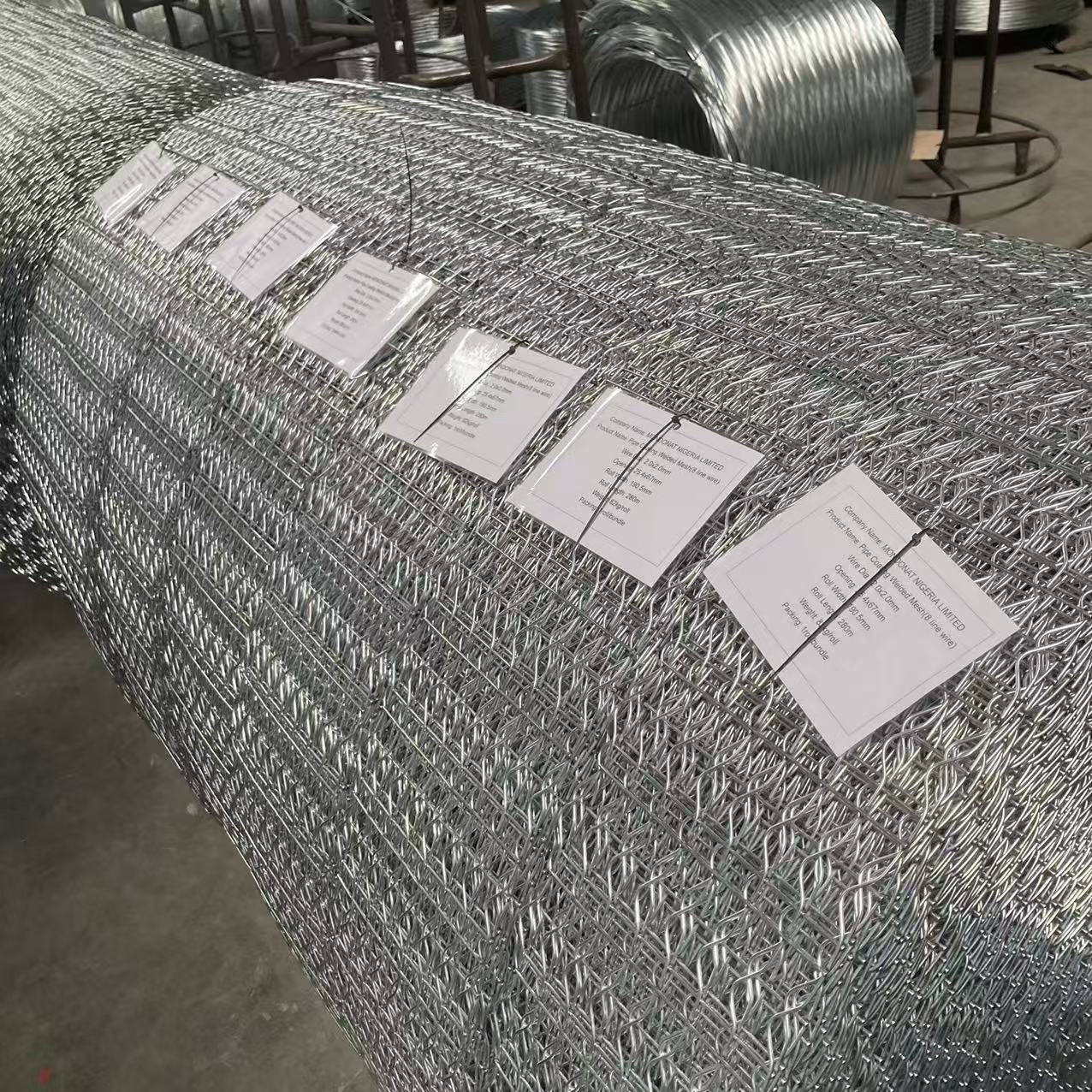

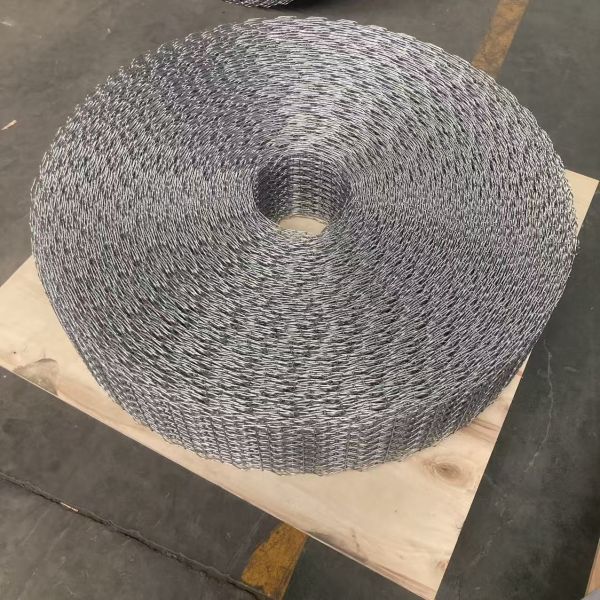

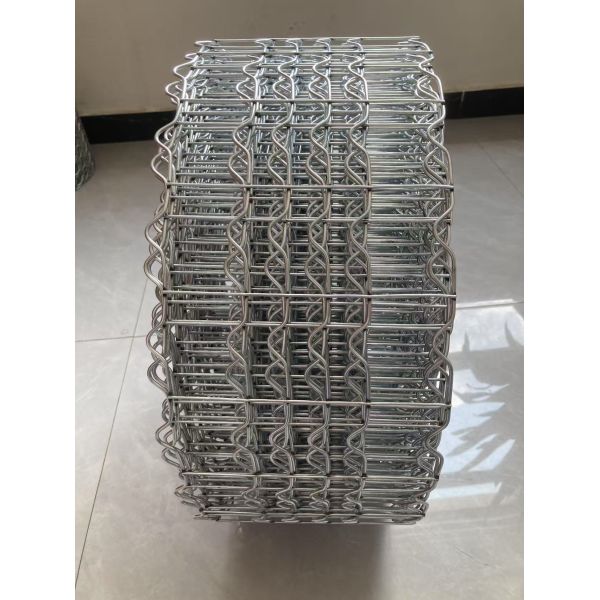

Product Images
2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline 2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline 2.4mm Wire Diameter Galvanized Pipeline Reinforced Mesh for Subsea Gas Pipeline
