Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm
Specifications
Brand Name :
Infi
Model Number :
JSWD
Certification :
Non Certificate
Place of Origin :
Hunan, China
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
100pcs/7days
Delivery Time :
7 working days
Packaging Details :
packed in box then into carton
Color :
white
Shape :
Round, square, rhombus
size :
15*15mm
Customized support :
OEM, ODM
MOQ :
5 pcs
Hardness :
Moh's 10
Material :
Synthetic CVD
Description

Specification:

Product name 15x15mm CVD diamond seeds for growing rough lab diamond
Type CVD rough diamond seeds
Usage Precise tool, CVD seeds, diamond substate
Available Shape Round, square, rhombus
Color White
Availalbe size 1-20mm
Available thickness 0.05-3mm
Material Synthetic CVD
Customized support OEM, ODM
Diamond Type Synthetic (lab created)
orientation 110 100
Diamond Enhancements Seeds

  • Application of optical grade CVD:
    1, Laser Optical Components for lasers, including laser resonators, output windows,and mirrors.
    2, Optical Windows and Lenses, including telescopes, cameras, and other sensors.
    3nterferometer Elements including high-precision mirrors, beam splitters, andgratings
    4, Optical Sensors,including spectrometers, optical scanners, and photodetectors.
    5, Astronomical Observations
    6    , Fiber Optic Communication, optical couplers, modulators, and demodulators; among other components.7,High-Precision Optica Measurements such as interferometers and Raman:spectrometers.8,Medical imaging equipment, such as endoscopes, optical microscopes, and medical:laser devices9Laser etching equipment.

15X15mm large size CVD diamond seeds for growing CVD rough lab diamond

CVD diamond (also known as Synthetic diamond, Chemical vapor deposition diamond, laboratory-grown diamond, laboratory -created diamond )is diamond produced in an artificial process, as opposed to natural diamonds, which are created by geological processes.

The advantages of CVD diamond growth include the ability to grow diamond over large areas and on various substrates, and the fine control over the chemical impurities and thus properties of the diamond produced. Unlike HPHT, CVD process does not require high pressures, as the growth typically occurs at pressures under 27 kPa

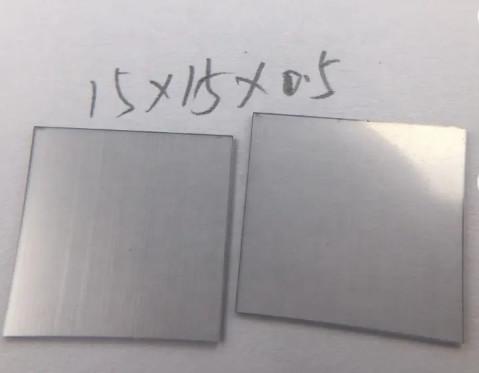

Product image:

Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mmOptical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm

Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mmOptical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm

Grade:

Optical Grade Single Crystal CVD Diamond Seeds Lab Grown Rough Diamonds 15x15mm

More queries please contact us directly:

Size of CVD diamond plates:

Normal size of CVD diamond plates:

3*3*1mm 4*4*1mm
