High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
High Durability Orbital Welding Machine with Wide Welding Range and Computerized Control System for Pipe to Pipe Welding
Specifications
Color :
Yellow And Gray
Power Source :
Electric
Welding Capacity :
High
Power Rating :
High
Welding Range :
Wide
Brand Name :
Hyzont
Model Number :
MWF-40/80/120
Place of Origin :
China
Certification :
CE/CCC
MOQ :
1set
Price :
USD9000
Packaging Details :
Wooden case
Delivery Time :
7-15days
Payment Terms :
TT
Supply Ability :
50sets/month
Welding Speed :
Fast
Maintenance :
Low
Durability :
High
Description
Product Description:

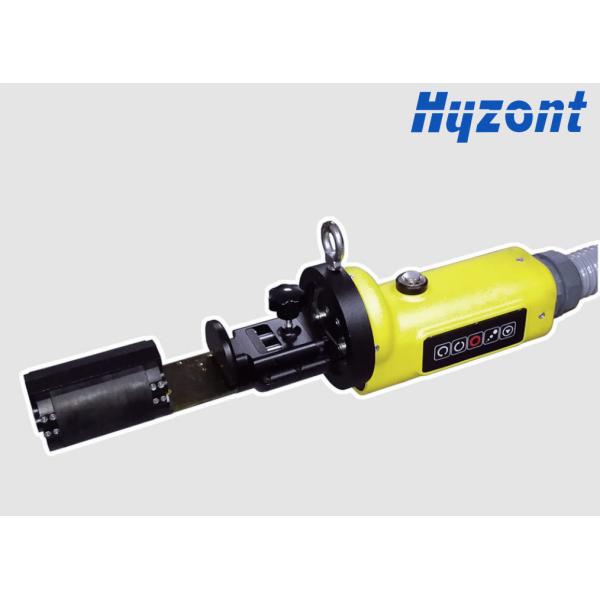

The Hyzont MWF-40, MWF-80 and MWF-120 enclosed orbital welding heads are designed for automatic TIG/GTAW (autogenous, no wire feeding) butt welding of tubes and pipes. They cover tube OD ranges of 6-38.1 mm (1/4-1 1/2 in), 19.05-76.2 mm (3/4-3 in) and 38.1-114.3 mm (1 1/2-4 1/2 in) respectively, for straight tube, pipe flange and elbow butt joints in carbon steel, stainless steel and titanium alloy. Each head features a genuine German rotation motor, 360° free rotation with auto reset for all-position welding, water cooling at 1000 ml/min, argon shielding and quick-install clamps, delivering clean, repeatable welds for industries such as oil and gas, chemical, food, beverage and pharmaceutical piping. CE/CCC certified with IP56 protection.

Features:
  • Enclosed welding head design for better shielding and operator safety
  • Genuine German rotation motor for stable, reliable welding
  • 360° free rotation with auto reset; all-position welding
  • TIG/GTAW autogenous welding (no wire feeding)
  • Built-in welding head parameters for accurate motion control
  • Water-circuit cooling for long-duration operation
  • Quick-install clamps for easy setup
  • Compact closed-head design in aluminum alloy, lightweight and durable
Technical Parameters:
Model MWF-40MWF-80MWF-120
MaterialCarbon steel, stainless steel, titanium alloy
Tube FittingStraight tube, pipe flange, elbow butt joint
Welding ProcessTIG/GTAW autogenous welding (no wire feeding)
Tube OD(mm/inch)

6-38.1 mm

1/4-1 1/2 in

19.05-76.2 mm

3/4-3 in

38.1-114.3 mm

1 1/2-4 1/2 in

Tube Wall Thickness(mm)3 mm3 mm3 mm
Tungsten OD(mm)1.61.6-2.41.6-2.4
Rotating360° free rotation with auto reset; all-position welding
Rotation speed(rpm)0.3-60.2-4.50.15-1.9
Protective GasArgonArgonArgon
CoolingWaterWaterWater
Cooling Flow(ml/min)1000 ml/min1000 ml/min1000 ml/min
Cable Length6 m6 m6 m
Main Dimension(mm)
Weight(kg)2 kg3 kg6 kg
Dimension(mm)377 x 38 x 100436 x 38 x 175497 x 230 x 57
