HZG-76 Automatic Pipe Orbital Welding Torch

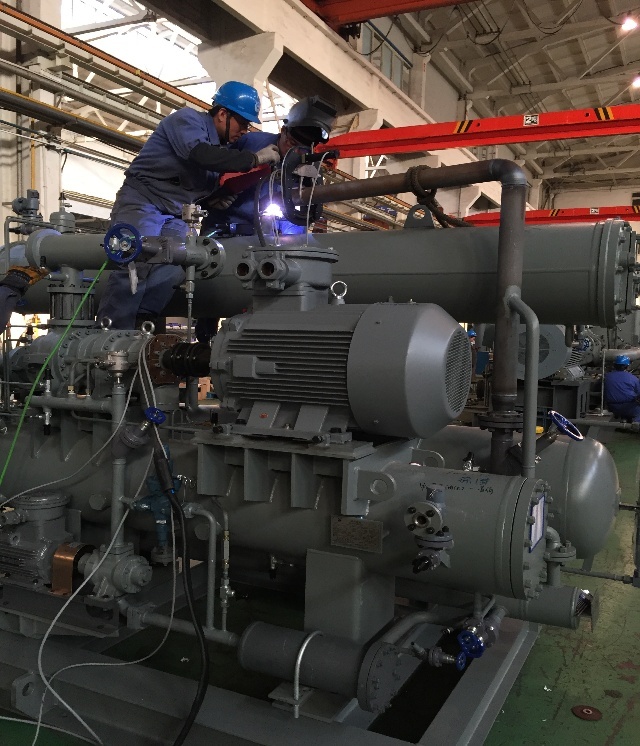

The HZG-76 is an all-position tube-to-tubesheet automatic orbital welding torch designed for medium and thick-wall carbon steel and stainless steel pipes from 19mm to 76mm. The pipe stays stationary while the torch rotates, so it is widely applied to on-site installation of pipe-to-pipe and pipe-to-elbow joints.

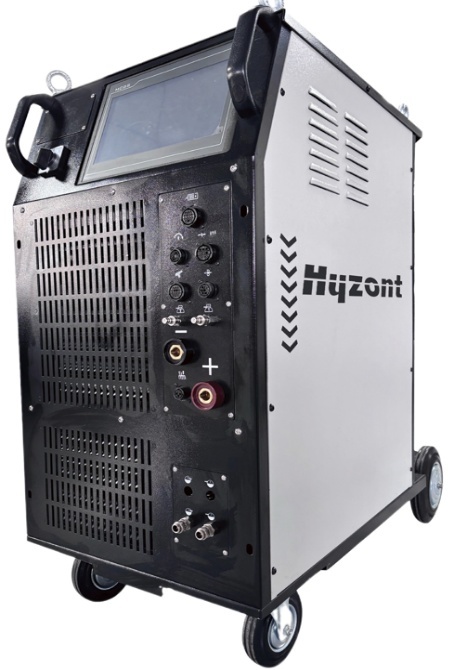

Why Choose the HZG-76 Orbital Welding Torch

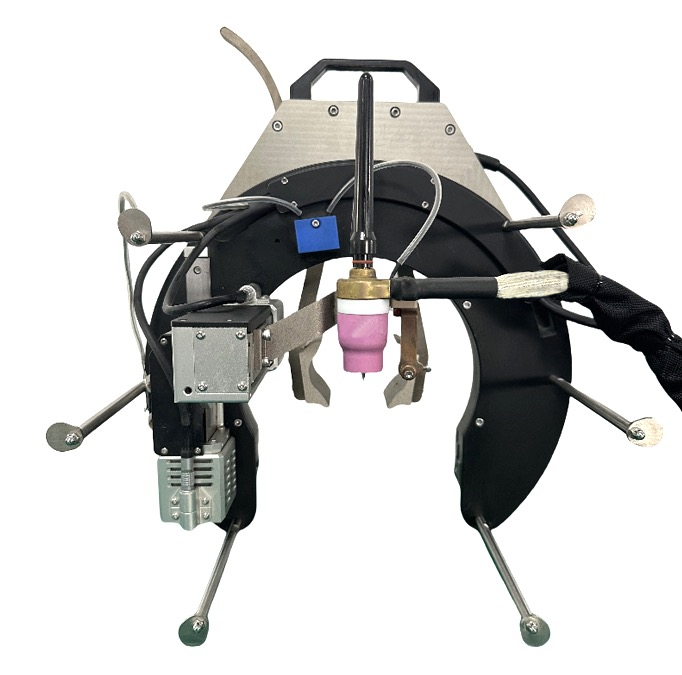

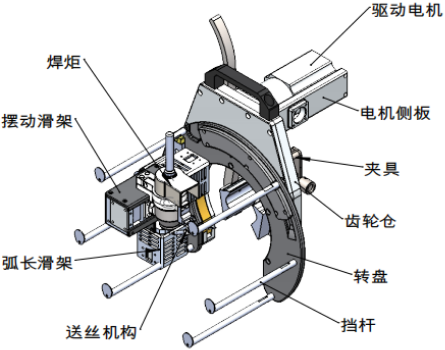

  • Three core modules - rotation system, clamp device and transmission system make up a compact, stable welding head.
  • Light aluminium alloy body with caliper clamp - stepless adjustment adapts to different pipe diameters.
  • Backlash-free gear transmission - stable rotation and low moment of inertia, no jamming even under high-temperature conditions.
  • Electric weaving and arc length oscillation - meets multi-pass welding process requirements, with AVC auto arc length tracking and OSC capping.
  • Circulating water cooled torch - supports long-time continuous operation; works for both autogenous welding and wire feeding welding.

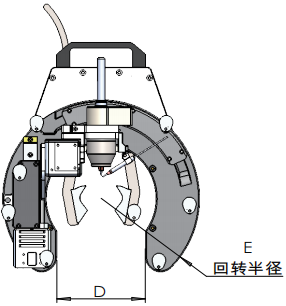

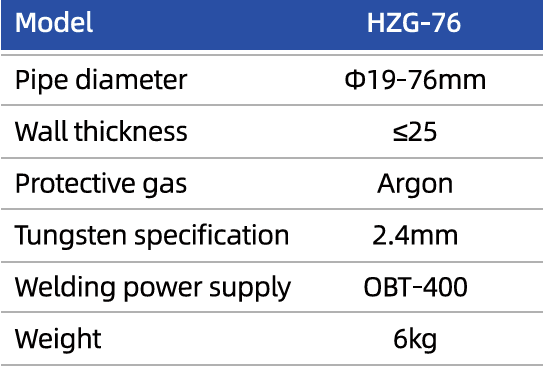

Welding Head Parameters (HZG-76)

ItemValue
ModelHZG-76
Pipe diameter range19-76mm

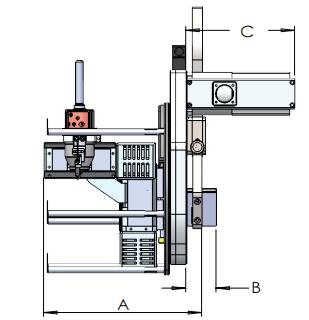

A125mm
B35mm
C134mm
D82mm
F123.3mm
Body materialAluminium alloy, light weight
ClampingCaliper-type, stepless adjustment
TransmissionBacklash-free gear transmission
CoolingCirculating water cooling torch

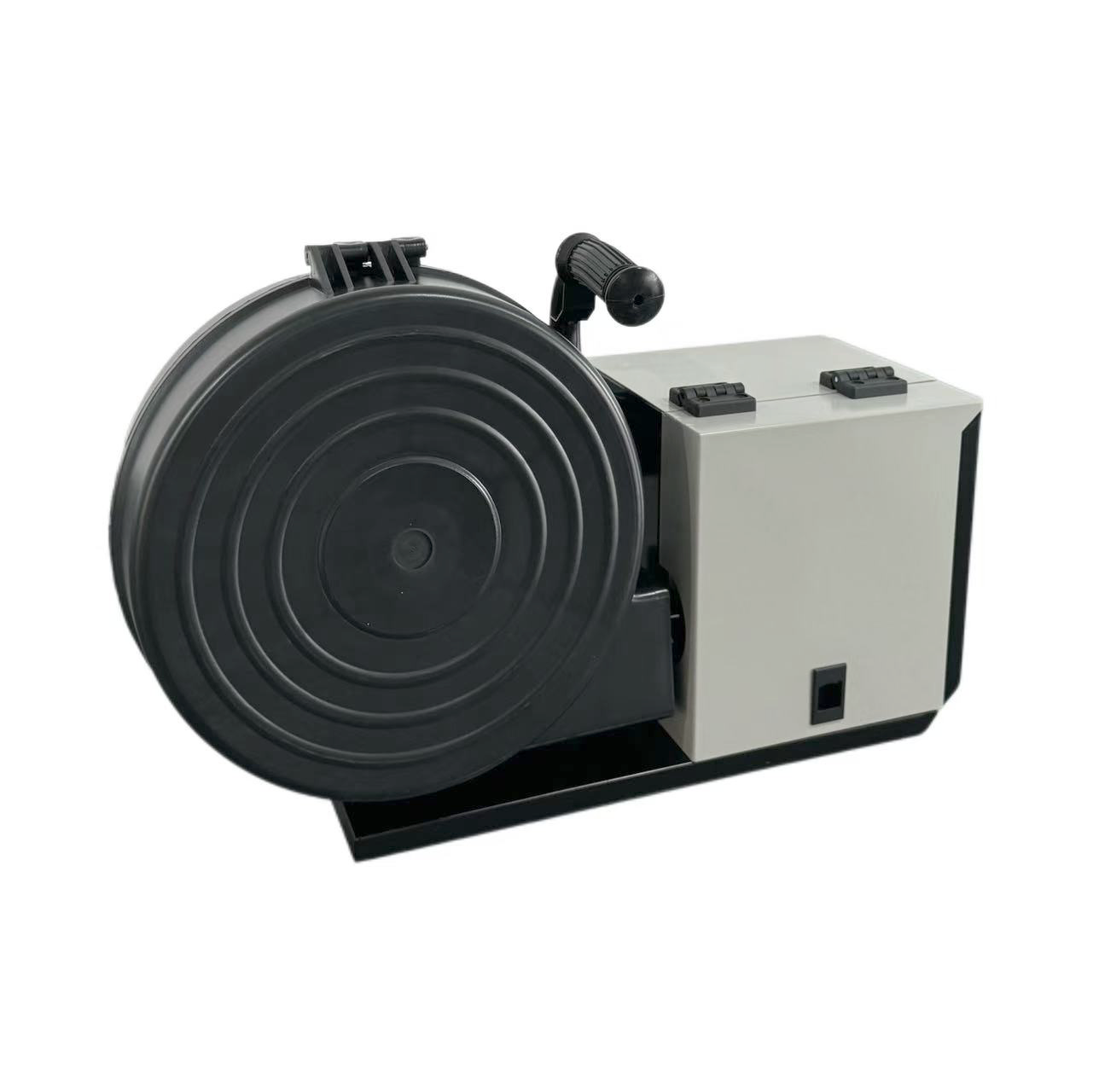

Wire Feeder Parameters

ItemValue
Wire diameter0.8mm, 1.0mm, 1.2mm
Dimensions615 x 400 x 245mm (L x W x H)
Weight14Kg
Wire reel 1 (OD/ID/W/weight)200mm / 53mm / 103mm / 15Kg
Wire reel 2 (OD/ID/W/weight)300mm / 53mm / 103mm / 20Kg

Welding Performance Characteristics

  • Carbon steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 37°, misalignment less than 10% of wall thickness.
  • Stainless steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 45°, misalignment less than 10% of wall thickness.
  • Fit-up clearance: 0-0.5 mm.
  • Tack welds made in small, thin and dense spots.

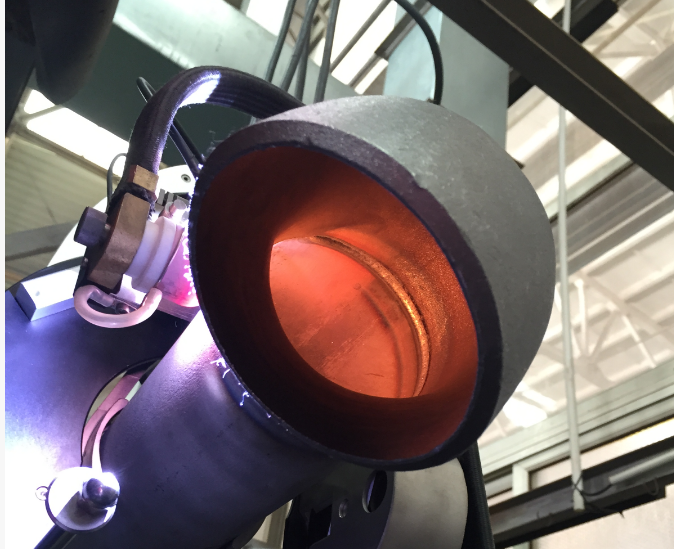

  • Welding mode: the pipe remains stationary while the welding torch rotates to complete welding.
  • For multi-pass welding with grooved joints, AVC automatically tracks the arc length; the capping pass is completed by OSC weaving oscillation.
