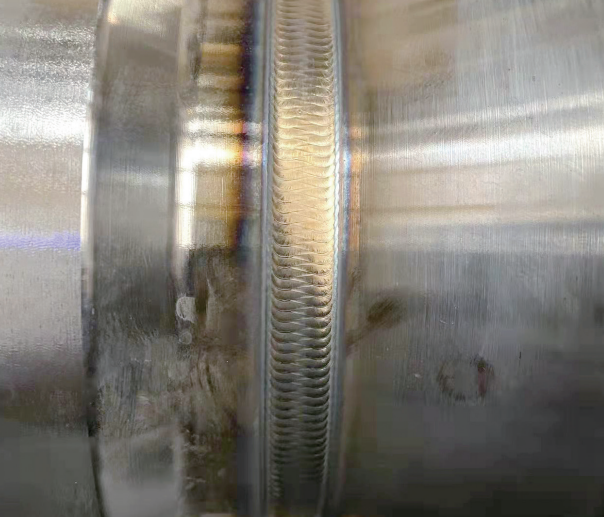

MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
Specifications
Lateral Oscillation Accuracy :
+/- 0.1 mm
Side Stroke :
300 mm
Place of Origin :
Shanghai, China
Display :
10 inch touch screen
Swing Frequency :
0 - 100 cycles/min
Circular Welding System :
MHK50-2210
Model Number :
MH-P02
MOQ :
1 Set
Control System :
MH-P02 PLC + CPU hybrid SOC
Brand Name :
HYZONT
Trolley Stroke :
3000 mm
Supply Ability :
20 Sets per Month
Rotation Speed :
0.1 - 2.0 rpm
Certification :
CCC
Payment Terms :
L/C,T/T,Western Union
Price :
USD 22000-38000 / Set
Delivery Time :
20-40 Days after Payment
Lateral Oscillation Speed :
0 - 1000 mm/min
Packaging Details :
Wooden case
Torch Column Model :
MHT60-3560
Column Stroke :
600 mm
Programs :
50 programs, 16 sections each
Description

MH-P02 PLC Circular Seam Welding Control System

The MH-P02 welding controller is a hybrid high-integration system on chip (PLC + CPU) developed for high efficiency TIG welding. It provides a fixed control center and a remote control center with a 10 inch touch screen, supports plug and play expansion modules and upgradeable main programs, and the two control centers can be linked or switched to separate control.

Control System Parameters

Controller ModelMH-P02 (PLC + CPU hybrid SOC)
Operation Console10 inch touch screen
Program StorageUp to 50 welding programs, 16 sections each, freely copyable
Rotation Speed Control0.1 - 2.0 rpm (forward / reverse)
Swing Frequency0 - 100 cycles / min
Lateral Oscillation Speed0 - 1000 mm/min
Lateral Oscillation Accuracy±0.1 mm
Lateral Oscillation Excursion0.1 - 5 mm
Lag Time / Edge Residence0.1 - 60 s / 0.1 - 8 s (left and right adjustable)

Manipulator Parameters

Manipulator ModelMHT60-3560
Rotation Speed0.5 - 40 rpm
Trolley Stroke3000 mm
Column Stroke600 mm
Side to Side Stroke300 mm
Manual Angle Swing±45°
Rotation Motor Power0.75 kW

The equipment is equipped with an automatic diagnosis and protection system to protect personnel, equipment and workpieces. The display directly shows current, voltage and welding line speed, with a complete human-machine interaction interface.
