Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding
Specifications
Control System :
PLC Control
Weight :
17Kg
Welding Accuracy :
High Accuracy
Cooling System :
Air Cooling
Welding Speed :
High Speed
Brand Name :
Hyzont/New core
Model Number :
x-1
Certification :
CCC/CE
Place of Origin :
China
MOQ :
1set
Price :
negotiated sale
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
50set/month
Packaging Details :
wooden case
Application :
Hand laser Welding
Laser Source :
Fiber Laser
Description

Product Features

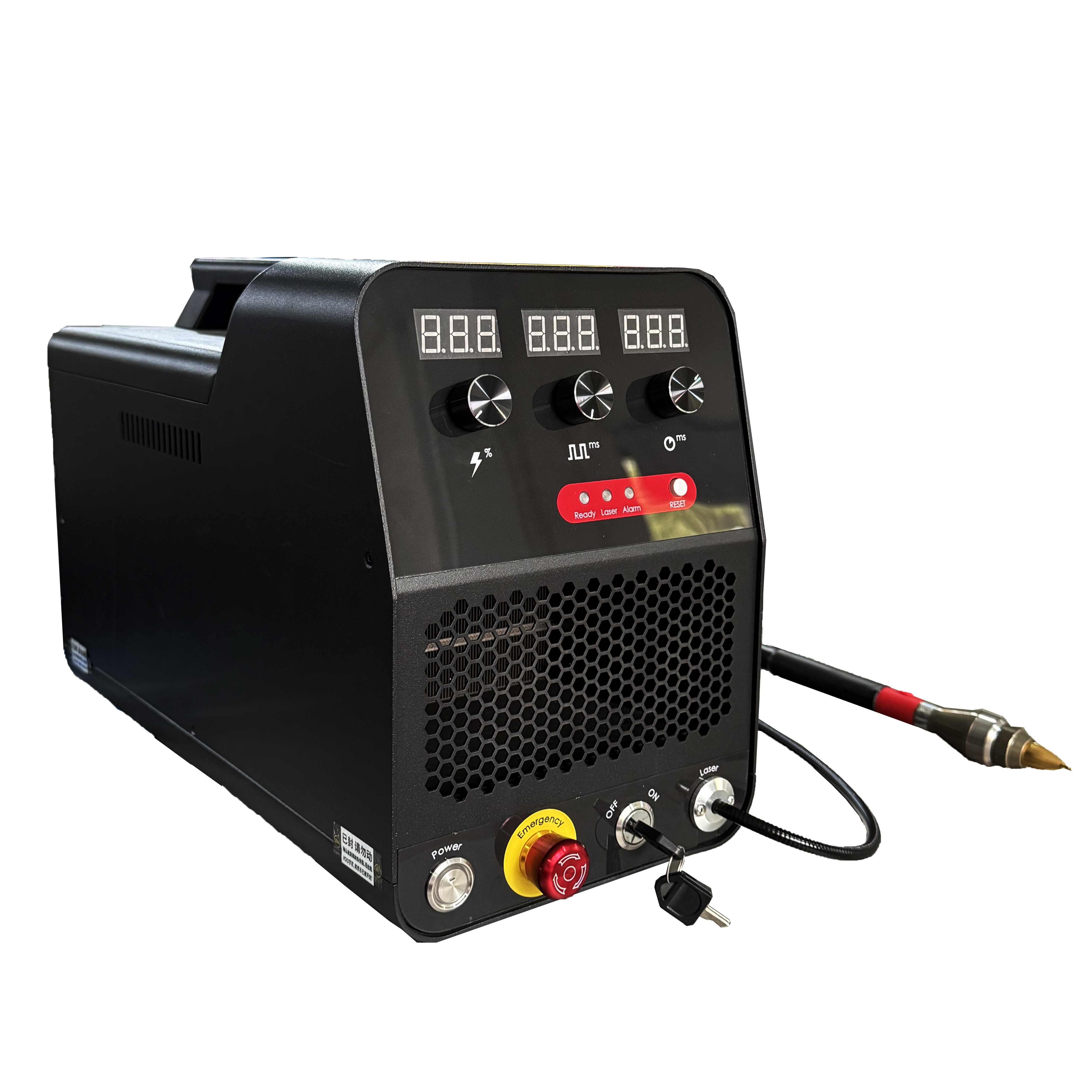

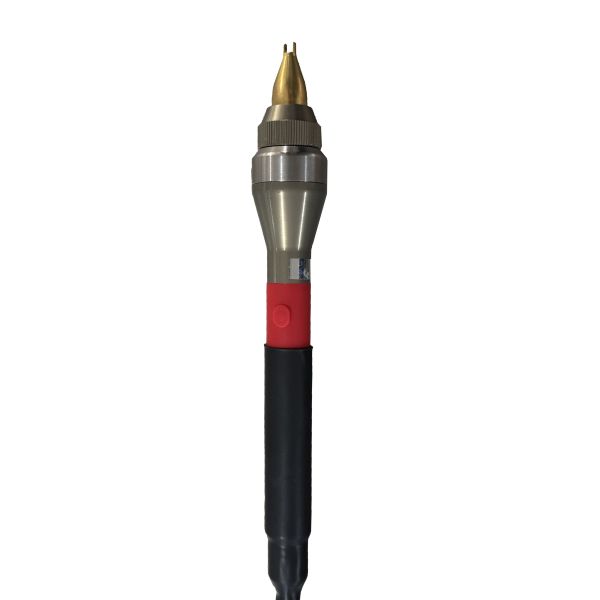

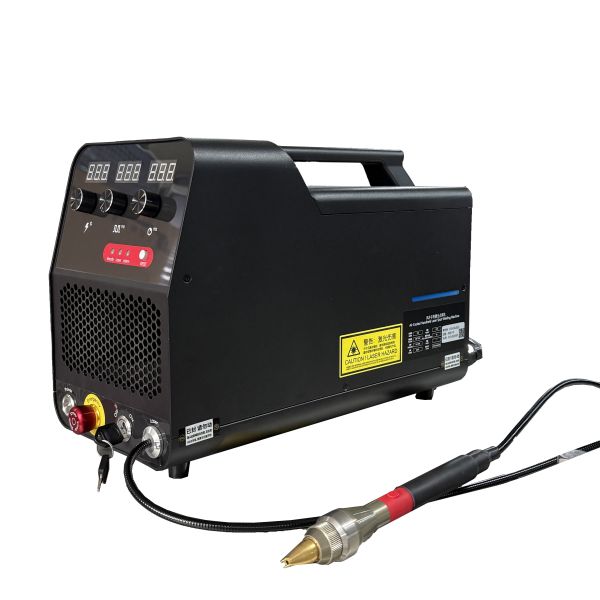

The laser pulse spot welding machine integrates the laser module, welding gun and control system into one unit, featuring high integration and simple operation. In terms of welding performance, it delivers outstanding advantages including high welding efficiency and excellent weld quality.

Main features of this system:

  • Highly integrated product design
  • Usable in ambient temperature of 20℃~40℃
  • Customized air-cooled laser
  • High reliability and long service life
  • Maintenance-free operation
  • Convenient control functions

Applications: Widely used in welding of hardware and building materials in various fields, such as advertising, doors & windows, lighting and decoration.

Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding

Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding

Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding

Hand laser welding machine air cooling fiber laser manual welder for aluminum plate welding


Parameter Unit Min Typ. Max
Optical Parameters
Peak Power W
1100
Pulse width ms 1
50
Power Control % 1
100
Center Wavelength nm 970 976 980
Reference Beam Center Wavelength nm 630
670
Reference Beam Output Power mW 0.3

Cable Length m 2

Loose Tubing Diameter mm
6.2
Electrical Parameters
Conversion Efficiency %
50
Power Input V
220
Power Dissipation W

2500
Operation Mode
pulse

Light output interval ms > Pulse width

Duty Cycle % 1
50
Thermal Parameters
Cooling Method
Air cooling

Operating Temperature ℃ -20
45
Gas requirements
Airflow rate L/min 15

Gas
Nitrogen, argon, etc.

Pressure MPa 0.2
0.5
Outer diameter of trachea mm
4
