High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe
High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe
Specifications
Brand Name :
Hyzont
Model Number :
UFH-15
Certification :
CCC
Place of Origin :
China
MOQ :
1Set
Price :
negotiable
Supply Ability :
100 Sets a month
Delivery Time :
3 Days after Payment
Packaging Details :
Flight Case
Name :
U tube TIG Welding Machine
Model :
UFH-15
Application :
Stainless Steel Condenser U tube Auto Weld Fabricating
Weld Current :
Max. 200A
U tube Material :
Stainless Steel
U tube Thickness :
1-3mm
Type of Welding :
TIG/GWAT (No wire feeding)
Place Origin :
China
Description

Orbital Welding of Condensor Tubing Automatic tube welding machine

Brand: Hyzont

Model: UFH-15

Application:

This is a special designed TIG welding head for stainless steel condenser U tube automatic welding, which is almost same with orbital welding process

  • Condenser U tube welding
  • Evaporator U tube welding
  • Heat exchanger fabricating

Features:

Customized design, suitable for all type U tube

Quick-install Clamps, easy to use

Low labor cost and high efficiency welding

Collision-free and good contact narrow space U tube welding

Heat- resisting components with compact design, light and durable

Water circuit cooling design for long time working


Specification:

Model UFH-15
Material Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting Plugged U tube
Welding Process TIG/GTAW (no wire feeding)
Tube OD(mm/inch) 12.7-15.88
Tube Wall Thickness(mm) ≤3mm
Tungsten OD(mm) 1.6
Rotating 360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm) 0.3~6
Protective Gas Argon
Cooling Water
Cooling Flow(ml/min) 1000ml/min
Cable Length 6m
Main Dimension(mm)
Weight(kg) 1kg
Dimension(mm) 377*38*100

Detailed Pictures

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

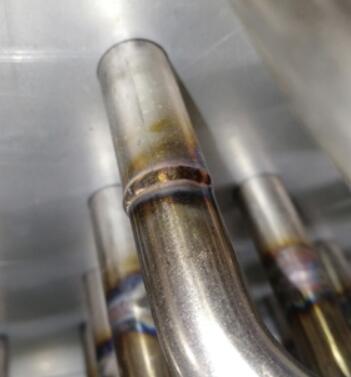

Condensor U tube Automatic Welding Effect

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

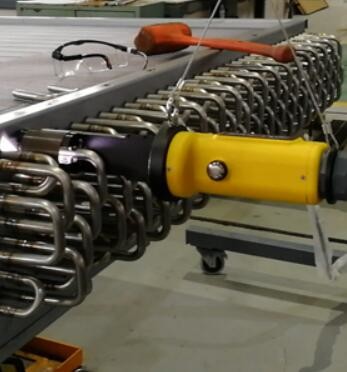

UFH-15 welding machine work site

Order information

Order Code K200150-U
Packing Flight case
Packing Size 520*400*200mm
Packing Weight 13Kg + 23Kg (Welding Power Source OBT-200)
Delivery Time 3 Days after payment

Hyzont UFH-15 Orbital Welding Machine Youtube Video Link:

http://Hyzont UFH-15 Orbital Welding Machine Youtube Video Link:
