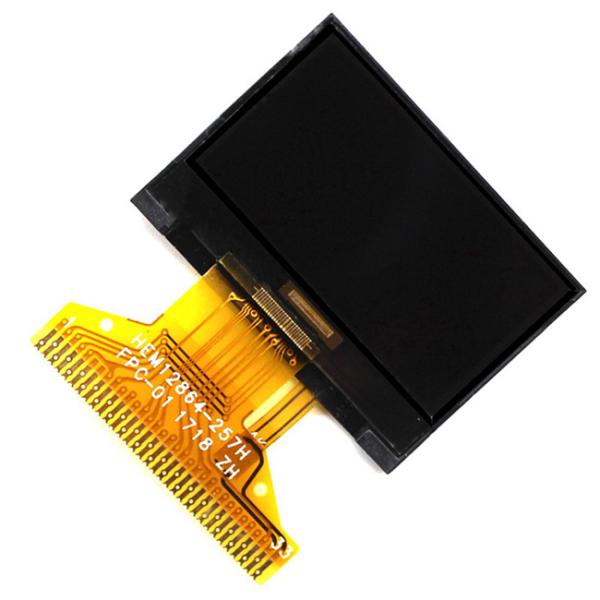

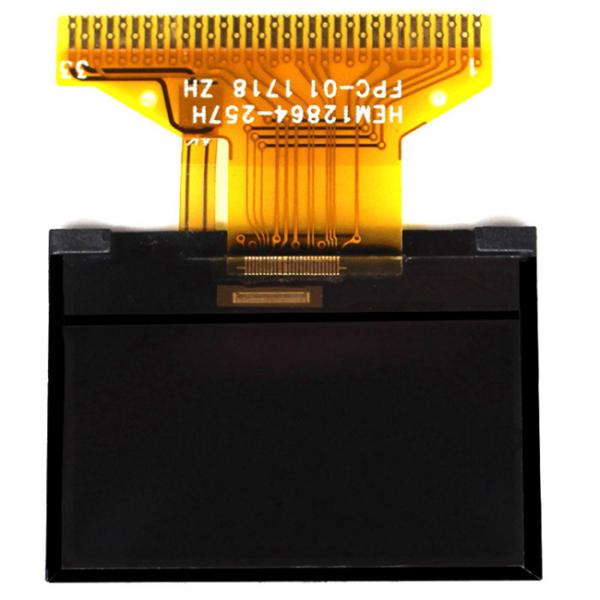

Customizable Monochrome Lcd Screen With White Backlight , Negative , Transmissiv Graphic Lcd Display
Customizable Monochrome Lcd Screen With White Backlight , Negative , Transmissiv Graphic Lcd Display
Customizable Monochrome Lcd Screen With White Backlight , Negative , Transmissiv Graphic Lcd Display
Customizable Monochrome Lcd Screen With White Backlight , Negative , Transmissiv Graphic Lcd Display
Specifications
Brand Name :
OKSMART
Model Number :
OKM12864-257H
Certification :
SGS
Place of Origin :
Shenzhen China
MOQ :
1000
Price :
USD 1.74-2.38 per piece
Payment Terms :
Trade Assurance, L/C, T/T, Western Union, , D/P, D/A
Supply Ability :
100000 pieces per month
Delivery Time :
30 working days
Packaging Details :
Kraft box / white box to a carton or customized packing
Other name :
Graphic lcd display module
Module size :
87mm(L)*44.5mm(W)*2.8mm(H)
Viewing area :
83mm(L)*34.5mm(W)
Dot pitch :
0.6mm(L)*0.49mm(W)
Dot size :
0.55mm(L)*0.4mm(W)
Storage temperature :
-10℃~60℃
Description

Customizable mono 128 x 64 FSTN With White backlight , Negative , Transmissiv Graphic lcd display

FUNCTIONS & FEATURES :

Format : 130X64 Dots .
LCD mode : STN/Y-G, Positive, Transmissive .
Viewing direction : 6 o’clock .
Driving scheme : 1/65 Duty cycle, 1/9 Bias .
Low power operation : Power supply voltage range (VDD): 3.0V .
VLCD adjustable for best contrast : LCD driving voltage (VOP): 10.0V .
Operating temperature : 0℃~50℃ 2-8. Storage temperature : -10℃~60℃

MECHANICALSPECIFICATIONS :

Module size : 87mm(L)*44.5mm(W)*2.8mm(H) .
Viewing area : 83mm(L)*34.5mm(W) .
Dot pitch : 0.6mm(L)*0.49mm(W) .
Dot size : 0.55mm(L)*0.4mm(W)

Pin no Symbol Function
1 NC 　
2 VO V0 is the LCD driving voltage for common circuits at negative frame
3 XVO XV0 is the LCD driving voltage for common circuits at positive frame
4 VG VG is the LCD driving voltage for segment circuits.
5 VSS Ground
6~7 NC 　
8 VSS Ground
9 VSSI-1V8 Supply voltage for logic circuit
10~12 NC 　
13 CSB Chip Select , When /CS= “L”, chip is selected
14 RESB When RSTB is “L”, internal initialization is executed and the internal registers will be initialized
15 AO Select register data when A0= “H”, and instruction when A0= “L”
16~17 NC 　
18 SCL Serial clock input terminal
19 SDA Serial data input terminal
20/23~30 NC 　
21~22 VSS Ground
31 VDDA-2V8 Supply voltage for logic circuit
32 K- Supply voltage for backlight Ground
33 A+ Supply voltage for backlight +3.3V

Customizable Monochrome Lcd Screen With White Backlight , Negative , Transmissiv Graphic Lcd DisplayCustomizable Monochrome Lcd Screen With White Backlight , Negative , Transmissiv Graphic Lcd Display
