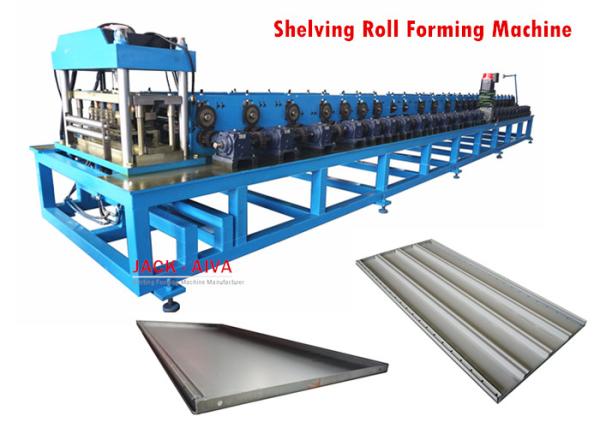

CE 15m/Minracking Shelving Roll Forming Machine For GI Steel Sheet
CE 15m/Minracking Shelving Roll Forming Machine For GI Steel Sheet
Specifications
Brand Name :
JACK-AIVA
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Delivery Time :
70 working days
Packaging Details :
no packing
Material Thinckness :
0.15mm-6mm
Coil Material Width :
8mm-1250mm
Capacity :
5m/ min-50m/ min
Products Length :
No limit
Finished Product Dimension :
As per customers’ drawing
Power :
380V/ 50Hz/ 15kw
Description

Roll Forming Machine for the Manufacture of Shelf Storage

The Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.

With the production advantage of the shelving & storage racks roll forming equipments, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.

1 Raw Material

Coil material ( Aluminum, Iron,

stainless steel, galvanized sheet,

brass strip)
2 Material Thinckness 0.15mm-6mm
3 Coil Material Width 8mm-1250mm
4 Capacity 5m/ min-50m/ min
5 Products Length No limit
6 Finished Product Dimension As per customers’ drawing
7 Power 380V/ 50Hz/ 15kw
8 Temperature 0-40℃
9 Humidity 60-95% RH

Technology Processing Flow- Shelving Roll Forming Machine

The whole line is consisted of de-coiler, Main roll forming machine, Cut to length, cutting equipment, hydraulic system, control system, etc

De-coiling—-- side punching ---Roll forming—cut to length--- bending + Cutting —stacking production

CE 15m/Minracking Shelving Roll Forming Machine For GI Steel Sheet

Main Parameters- Shelving Roll Forming Machine

- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; (2-2.5) mm× L

- Punching machine with moulds 1 set, 63T

- Forming Roller Stations: 18 Stations

- Main shaft: 45﹟forge steel; diameter Ф650mm

- Punching model: Stop and Punching.

- working speed: 12m/min (include punching and cutting, length in ≥6m)

- Total power: 30kw

- Cutting mode: Automatic control, cut to length

- Hydraulic station power 4kw

- Power: 380V/3ph/50Hz (or according to the buyer's requirement)

- Dimension: 15.5*1.8*1.5mm

Storage Shelf

As the main component of the Shelf Storage system, The shelving is the important Profile for shelving in storage racking industry.

The following are the typical of heavy shelving upright for reference. ITs width can be adjusted, custom Shelf Storage Beam profile are welcome!

CE 15m/Minracking Shelving Roll Forming Machine For GI Steel Sheet

TAG: Shelving and Racking, Slotted shelf, Shelf Storage shelving Roll Forming Machine
