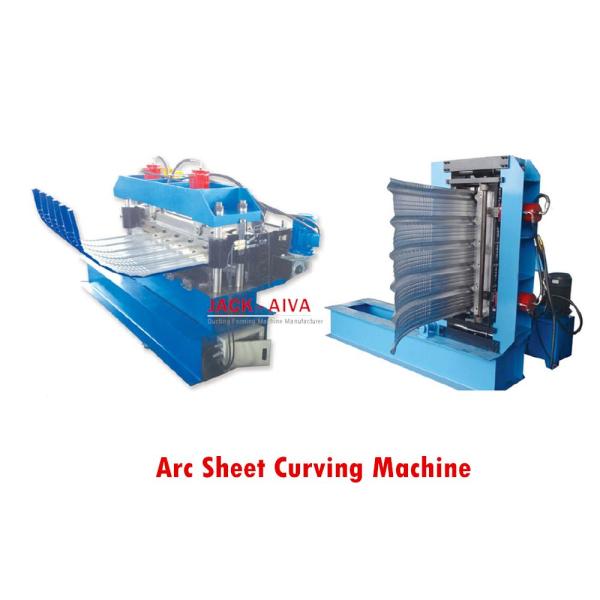

Roof Sheet Curving Machine | Metal Arc Panel Bending Equipment
Roof Sheet Curving Machine | Metal Arc Panel Bending Equipment
Specifications
Place of Origin :
China
Brand Name :
Jack-Aiva
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
70 working days
Payment Terms :
T/T L/C
Certification :
CE SGS
Formed Profile Type: :
Arch Roof panel
Raw material thickness: :
0.3-1.0 mm
Corrugated Punching moulds :
CR12, HRC55-60
Line speed: :
0-10m/min
Main power: :
0.85KW
Hydraulic station power :
5.5KW
Description

Roof Sheet Curving Machine | Metal Arc Panel Bending Equipment

Roof Sheet Curving Machine | Metal Arc Panel Bending Equipment

Hydraulic Metal sheet Arch curving machine is used to bend the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Metal sheet Arch curving machine can crimp both ends of roofing sheet.

This machine is developed based on the horizontal style arc panel curving machine, it has the Flexible operation, vertical operation or horizontal operation can be possible by this machine.

Hydraulic curving machine Main Parameters

ITEM CONTENT
Formed Profile Type: Arch Roof panel
Raw material thickness: 0.3-1.0 mm
Corrugated Punching moulds CR12, HRC55-60
Line speed: 0-10m/min
Main power: 0.85KW
Hydraulic station power 5.5KW
Electrical control system PLC
Max. bending angle 120
Machine size 3000 mm×1400mm×1400 mm

We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.
