CK45 Skiving And Rolling Machine Ra 0.04 Surface Roughness With Boring Depth 10M
CK45 Skiving And Rolling Machine Ra 0.04 Surface Roughness With Boring Depth 10M
CK45 Skiving And Rolling Machine Ra 0.04 Surface Roughness With Boring Depth 10M
CK45 Skiving And Rolling Machine Ra 0.04 Surface Roughness With Boring Depth 10M
Specifications
Brand Name :
EOOE Hydraulic
Model Number :
SRBE10000/400SNC
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/Year
Delivery Time :
4 Month
Packaging Details :
Plastic Wrap+Vacuum Packing+Iron Frame
Raw Material :
CK45
Roundness of Inner Hole :
0.02mm
SOne Tube Machining Time :
50 min
Spindle Motor Power :
150KW
Straightness of the Inner Hole :
0.025mm/100mm
Surface Roughness of the Finished Tube :
Ra 0.04
CNC Controller :
FANUC Brand
Requirements of the surface of the inner hole after machining :
Should not have flipping, ripples or other defects
Description

Skiving Roller Burnishing Machine with Boring Depth 10M

Ⅰ. Description of Shock-absorbing Seat

The shock-absorbing seat can play a shock-absorbing function during the high-speed rotation of the boring bar. It is installed on the guide rail slider and moves forward and backward with the tool. Boring bars with different diameters are equipped with different specifications of shock-absorbing devices.

Ⅱ. Parameters

SRB Type

SRBE10000/400SNC

Raw Material

CK45
Max ID 400mm
Machining Time

50 minutes

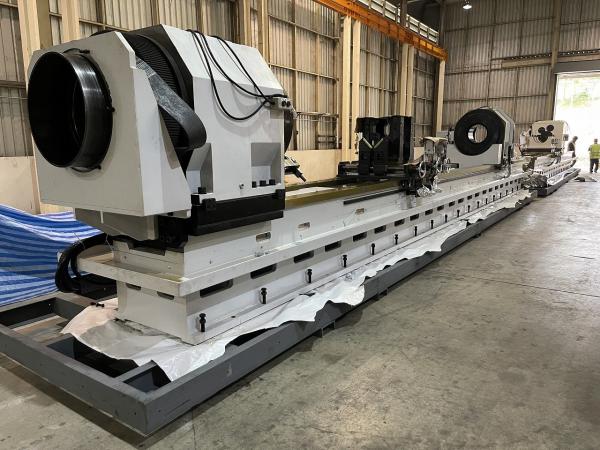

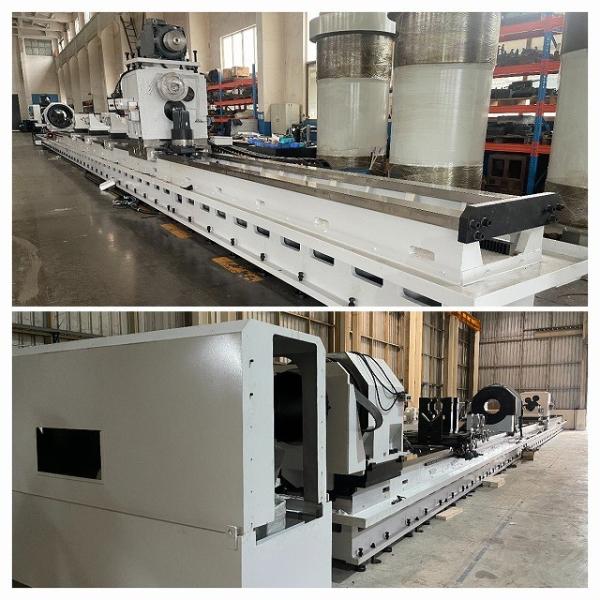

Ⅲ. Picture

CK45 Skiving And Rolling Machine Ra 0.04 Surface Roughness With Boring Depth 10M
